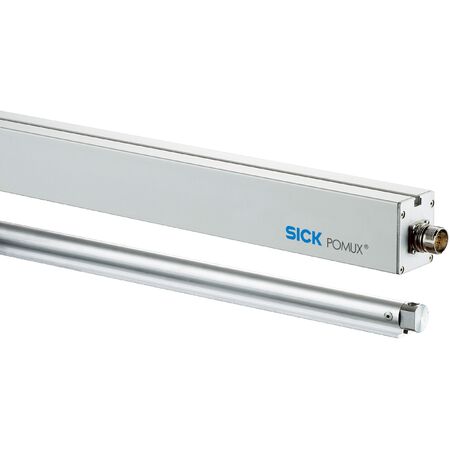

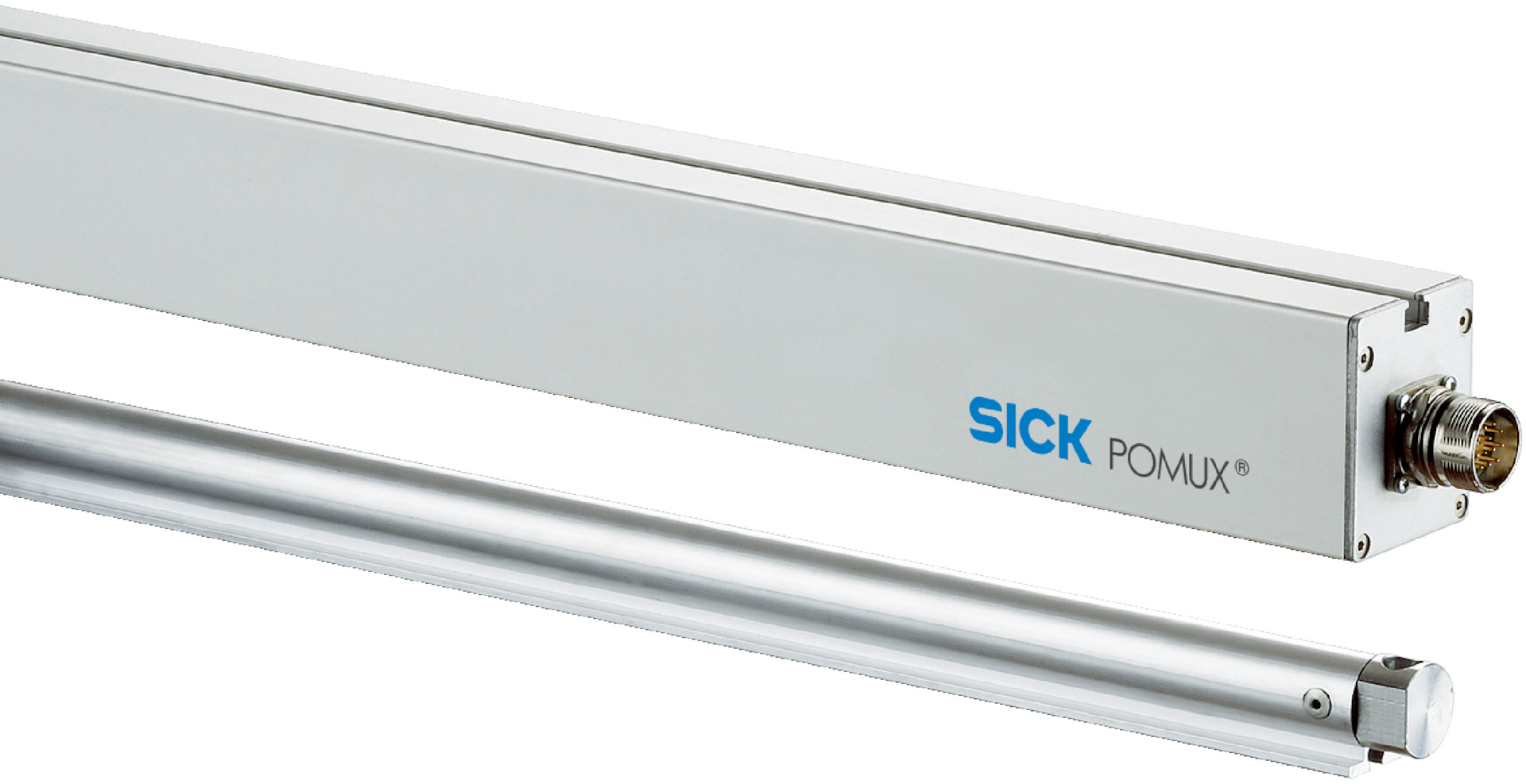

Safety Sensor KHK53-AXT01700 | 1700 m Measuring Range | 0.1 mm Resolution | IP66 Rated | by SICK
The KHK53-AXT01700 safety sensor offers a remarkable measuring range of up to 1700 m with a high resolution of 0.1 mm, making it ideal for industrial automation and safety systems. Designed for precision and reliability, it features a robust IP66 enclosure, ensuring performance in harsh environments. With a fast traversing speed of 6.6 m/s and compliance with safety standards, this sensor is perfect for high precision measurement in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Sensor KHK53-AXT01700 | 1700 m Measuring Range | 0.1 mm Resolution | IP66 Rated | by SICK
Brand: SICK
SKU: 1030080
Alternatively Known As: Safety sensor, Position sensor, Industrial safety encoder, High precision measurement sensor
Technical Specifications
- Measuring range: 0 m to 1700 m
- Resolution: 0.1 mm
- Traversing speed: 6.6 m/s
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Communication interface: SSI, 24 Bit gray code
- Position forming time: +0.8 ms
- Parametrization interface: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 s
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 5 m length
- Weight: 5.2 kg
- Read head material: AlMgSiPbF28
- Enclosure rating: IP66
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Dimensions (H x L x W): 150mm x 400mm x 150mm
- Weight: 5.2 kg
Key Features
- Measuring range up to 1700 m
- High resolution of 0.1 mm
- Repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Reliable safety-related parameters with MTTFD of 21 years
- Communication via SSI interface with 24 Bit gray code
- Wide operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation and safety systems
- Position measurement in machinery
- High precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy efficient operation with low current consumption of 250 mA
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXT01700 safety sensor is available for immediate purchase, ideal for industrial automation and safety applications.
