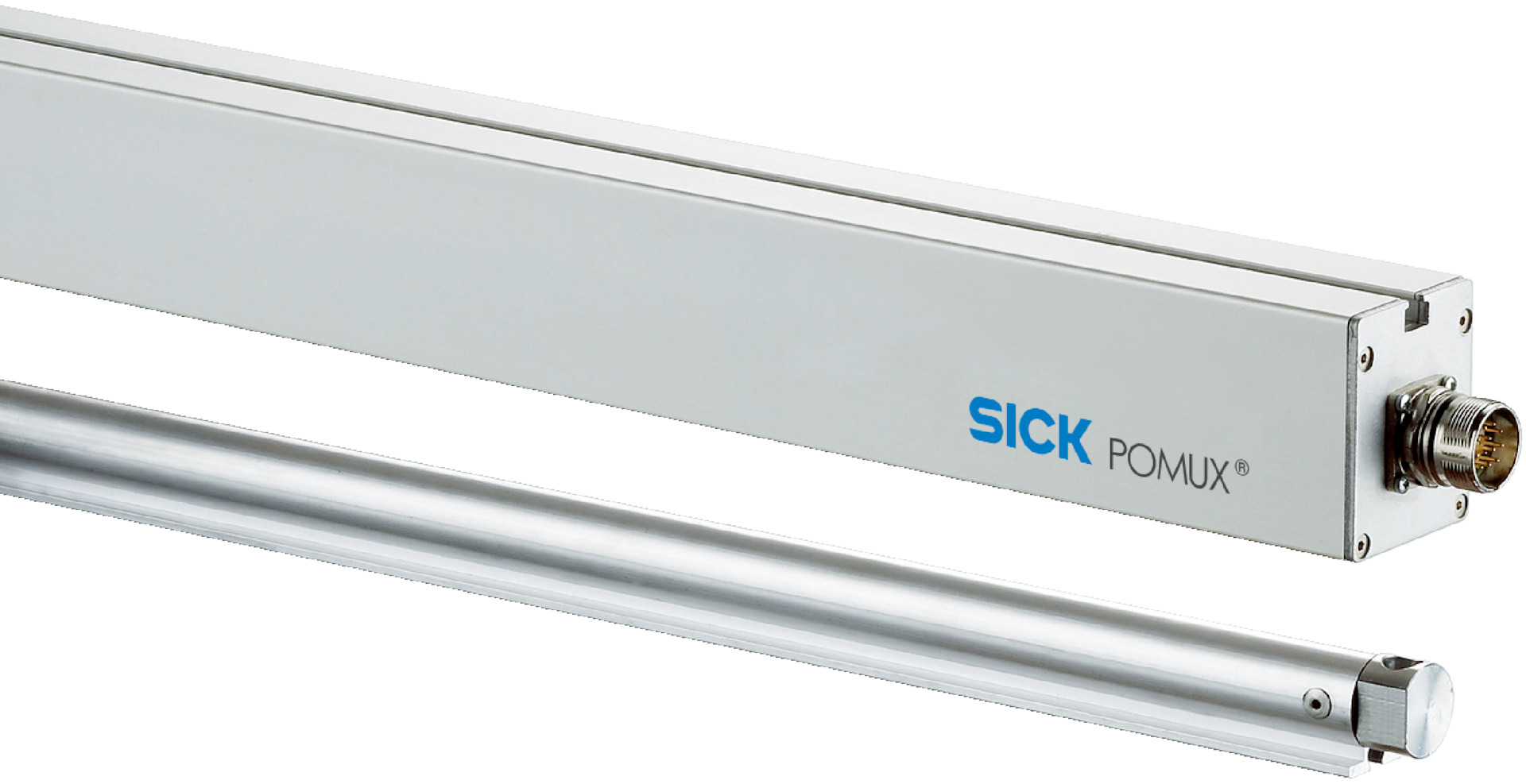

Safety Sensor KHK53-AXU01700 | 1700 m Measuring Range | 0.1 mm Resolution | IP66 Rated | by SICK
The KHK53-AXU01700 safety sensor offers a remarkable measuring range of up to 1700 m with a precision resolution of 0.1 mm, making it ideal for industrial automation and safety-critical applications. With a robust IP66 enclosure, it withstands harsh environments while ensuring high reliability and fast position forming time of +0.8 ms. Perfect for machine monitoring and control systems, this sensor is designed for professionals seeking accuracy and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

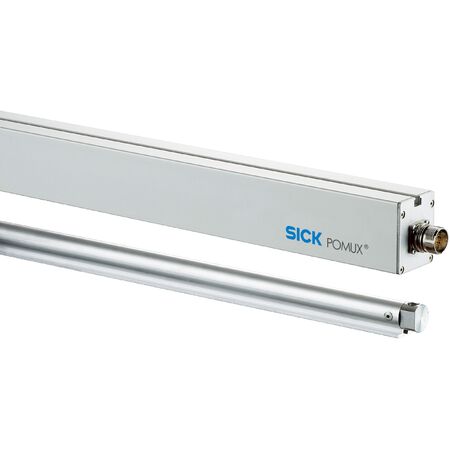

Product Name/Title: Safety Sensor KHK53-AXU01700 | 1700 m Measuring Range | 0.1 mm Resolution | IP66 Rated | by SICK
Brand: SICK
SKU: 1030081
Alternatively Known As: Safety sensor, Position sensor, Industrial safety encoder, High precision position sensor
Technical Specifications
- Measuring range: 0 m to 1700 m
- Resolution: 0.1 mm
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Traversing speed: 6.6 m/s
- Communication interface: SSI, 24 Bit gray
- Position forming time: +0.8 ms
- Interface for parametrization: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 s
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 10 m length
- Read head material: AlMgSiPbF28
- Enclosure rating: IP66
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.2 kg
Key Features
- Measuring range up to 1700 m with 0.1 mm resolution
- High repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast position forming time of +0.8 ms
- Supports SSI 24 Bit gray digital serial interface
- Wide operating temperature range from -20 °C to +60 °C
- Resistance to shocks up to 30 g and vibration up to 10 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensors and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient electronics reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXU01700 safety sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
