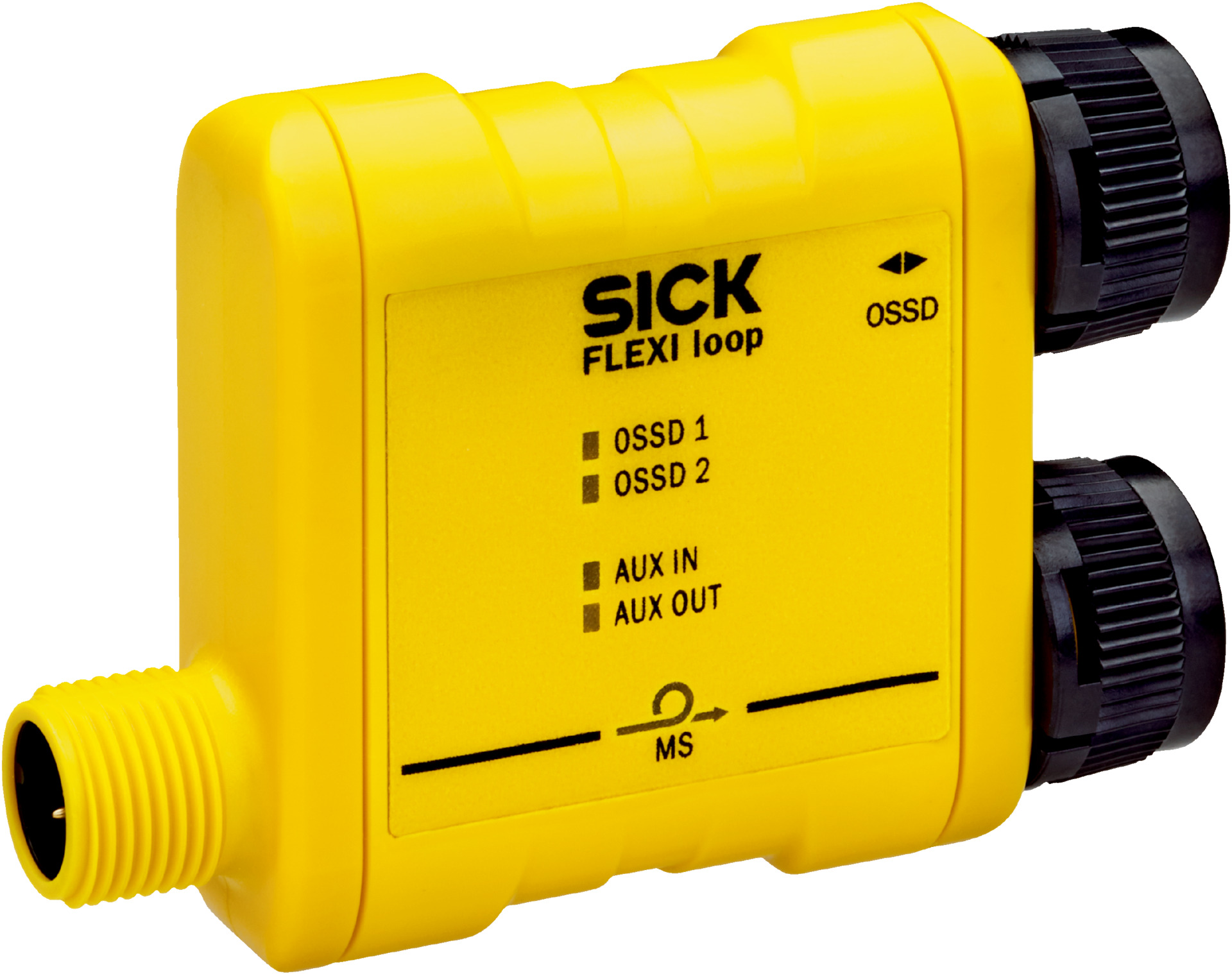

Safety Sensor Module FLN-OSSD1100108 | SIL 3 & Category 4 | Dual-Channel OSSD Outputs | IP65/IP67 Rated | by SICK
The FLN-OSSD1100108 safety sensor module is designed for industrial safety monitoring and control, featuring a SIL 3 safety integrity level and dual-channel OSSD outputs. With robust IP65/IP67 enclosure ratings and a wide operating temperature range from -25 °C to +55 °C, this module is perfect for automation systems requiring high integrity levels and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 0.76 x 10^-9
- Mission time: 20 years
- Connection types: Female M12 8-pin for safety device, Male M12 5-pin for Flexi Loop input, Female M12 5-pin for Flexi Loop output
- Number of non-safe inputs: 1
- Number of non-safe outputs: 1
- Power supply output for external devices: 24 V DC, ≤ 2 A
- Operating voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 45 mA
- Input voltage range for OSSD inputs: HIGH 13 V DC to 30 V DC, LOW -5 V DC to 5 V DC
- Output current: ≤ 500 mA
- Protection class: III (EN 61140)
- Enclosure rating: IP65 and IP67
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Dimensions (H x L x W): 48mm x 18mm x 68mm
- Weight: 0.1 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- Diagnostic and monitoring functions including cross-circuit, short-circuit, discrepancy and sequence error monitoring
- Dual-channel OSSD outputs for safety sensor connection
- Flexi Loop input and output for connection to Flexi Soft safety controller
- Highside driver output, short-circuit protected
- Power supply output for external devices up to 2 A
- Protection class III (EN 61140) with PELV or SELV supply voltage
- Enclosure rating IP65 and IP67 for robust environmental protection
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliance with relevant safety standards.
Applications
- Industrial safety monitoring and control
- Machine safety systems requiring high integrity level
- Automation systems with safety sensor dual-channel OSSD outputs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Robust design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption (45 mA)
- High reliability reduces risk of system failures and associated environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FLN-OSSD1100108 safety sensor module is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
