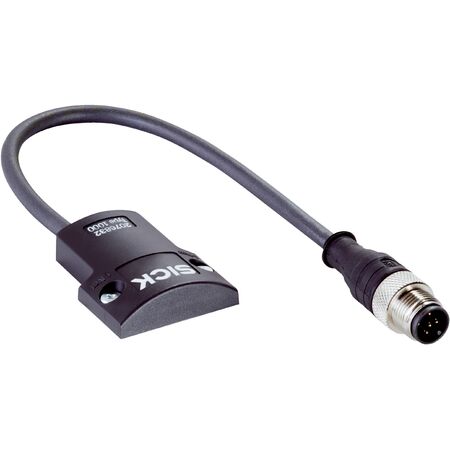

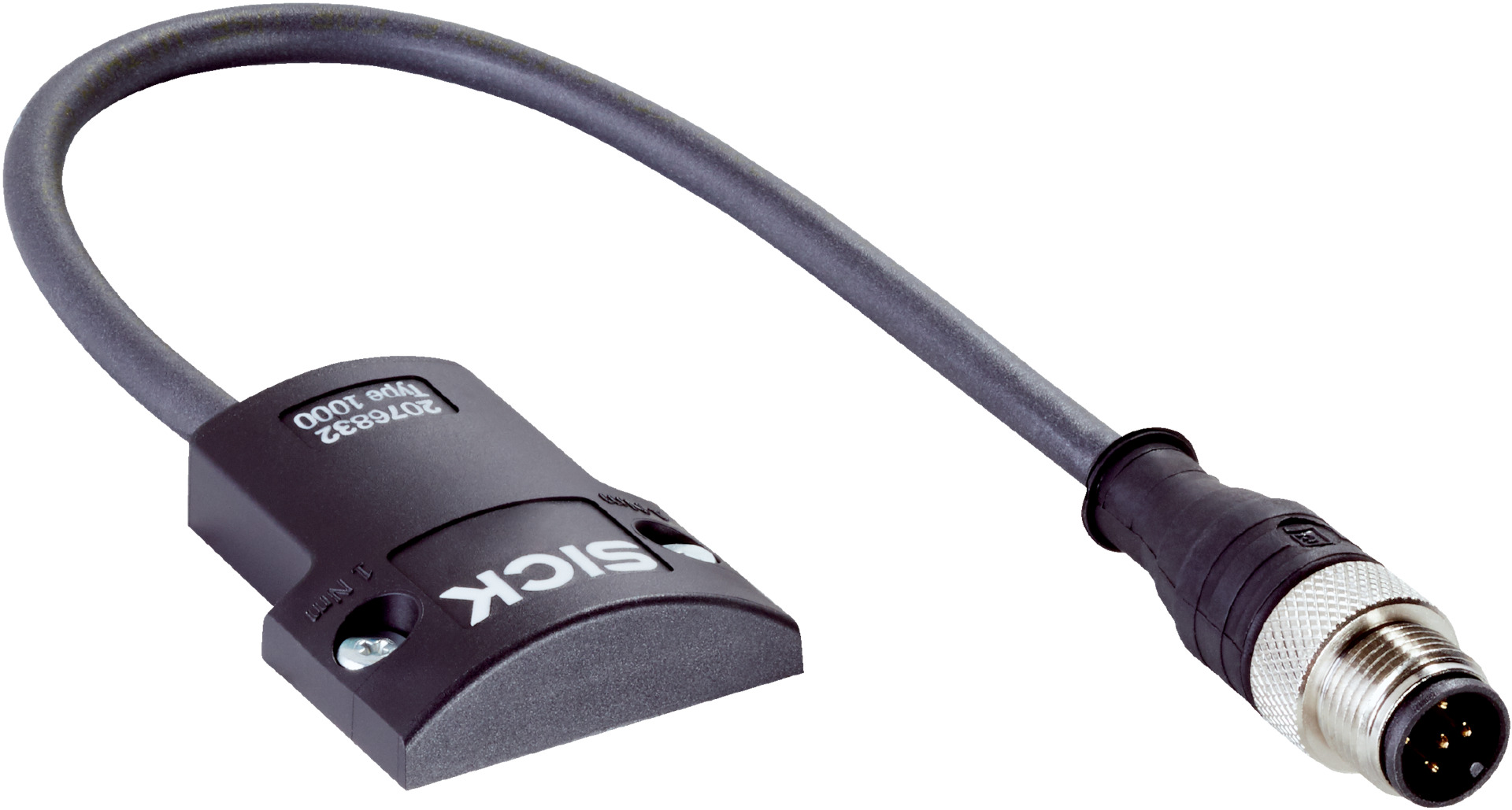

Safety Sensor Plug M12 5-Pin | 24V DC Supply Voltage | Automatic Calibration | by SICK
The Safety Sensor Plug M12 5-pin SP1-1000 is designed for industrial automation safety systems, featuring a 24V DC supply voltage and automatic calibration of protective field width. Ideal for machine protection and monitoring, this durable connector ensures reliable performance in demanding environments, making it a perfect choice for factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Cable length: 200 mm
- Cable diameter: 5 mm
- Ambient operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Configuration method: DIP switch
- Extension connection: None
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Protective operation with automatic calibration of protective field width
- System connection via Plug, M12, 5-pin
- Configuration via DIP switch
- Supplied with system plug
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure compliance and safety.
Applications
- Industrial automation safety systems
- Machine protection and monitoring
- Factory automation requiring protective field sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports energy-efficient safety automation systems
- Durable design reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK SP1-1000 Safety Sensor Plug is available for immediate purchase, ideal for industrial safety and automation applications.
