Safety Standstill Monitor SIL 3 | Category 4 Compliance | 20 Years Mission Time | by SICK
The Safety Standstill Monitor SIL 3 is designed for industrial machinery safety monitoring, ensuring compliance with Category 4 standards. With a mission time of 20 years and a mean probability of dangerous failure per hour (PFHD) of 41 x 10^-9, it provides reliable motor standstill detection. Ideal for safety control systems, this device enhances machine safety and reduces the risk of accidents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 41 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Stop category: 1 (EN 60204-1)
- Connection type: Screw-type terminals, plug-in screw-type terminals
- Conductor cross section: 0.5 mm² to 2.5 mm²
- Encoder interface: Motor voltage measuring
- Supply voltage (A1/A2): 230 V AC (184 V to 253 V), 10% residual ripple
- Max power consumption: ≤ 6 VA
- Diagnostic output supply voltage (A3/A4): 24 V DC (11 V to 30 V), 10% residual ripple
- Measured motor voltage: ≤ 690 V AC (≤ 600 V AC for UL 508 applications)
- Voltage threshold Uan: 20 mV to 400 mV, adjustable
- Standstill time ts: 0.2 s to 6 s, adjustable
- Response time: ≤ 100 ms
- Safety outputs: 3 NO contacts, 1 NC contact, relay positively guided
- Nominal switching voltage: 250 V AC
- Switching capacity AC 15: NO 3 A/230 V AC, NC 1 A/230 V AC
- Switching capacity DC 13: 1 A/24 V DC
- Max switching frequency: ≤ 1200 per hour
- Contact service life: ≥ 200,000 switching operations at 230 V / 5 A
- Mechanical life: ≥ 50 million switching operations
- Semiconductor diagnostic outputs: Electrically isolated, short-circuit protected, max 100 mA
- Signal contacts 53/54: 3 A/250 V AC
- Mounting: 35 mm mounting rail (EN 60715)
- Enclosure rating: Housing IP40, Terminals IP20 (EN 60529)
- Climate conditions: 25/060/04 (EN 60068-1)
- Vibration resistance: 10 Hz to 55 Hz (EN 60068-2-6)
- Shock resistance: Single shock 30 g, 11 ms (EN 60068-2-27)
- Dimensions (H x L x W): 112mm x 121mm x 45mm
- Weight: 0.4 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e
- Mean probability of dangerous failure per hour (PFHD) 41 x 10^-9
- 20 years mission time
- Stop category 1 (EN 60204-1)
- Drive safety function: Standstill detection
- Connection via screw-type terminals and plug-in screw-type terminals
- Motor voltage measuring encoder interface
- Supply voltage 230 V AC with 10% residual ripple
- Semiconductor diagnostic outputs supply voltage 24 V DC
- Relay safety outputs with 3 normally open and 1 normally closed contacts
- Mechanical life of ≥ 50 million switching operations
- Mounting on 35 mm rail according to EN 60715
- Enclosure rating IP40 housing, IP20 terminals
Professional Installation Requirements
- Installation must be performed by a qualified electrician or safety technician familiar with industrial safety standards and electrical wiring regulations.
Applications
- Industrial machinery safety monitoring
- Drive safety functions for motor standstill detection
- Safety control systems requiring SIL 3 and Category 4 compliance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances machine safety reducing risk of accidents and associated environmental hazards
- Long service life reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

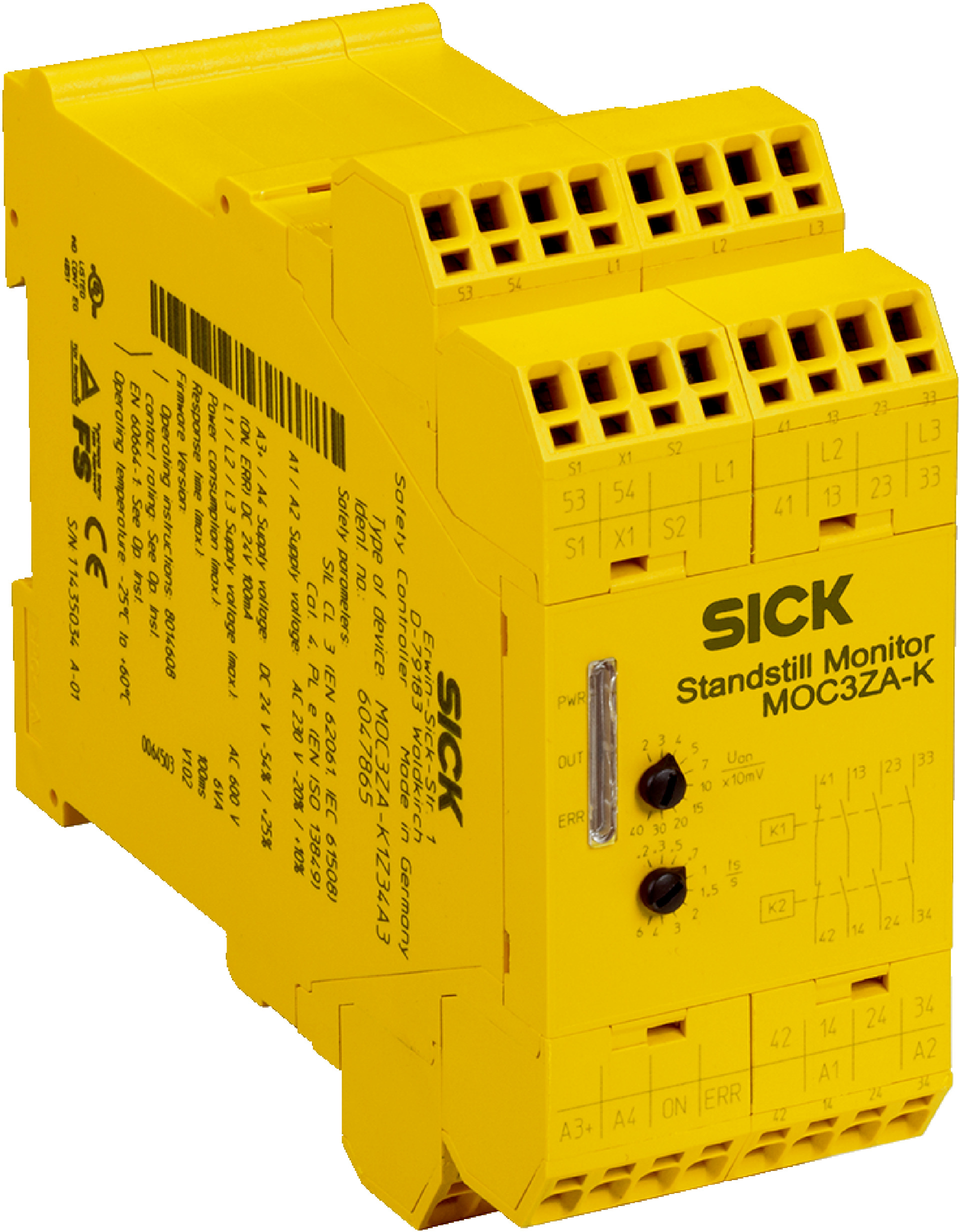

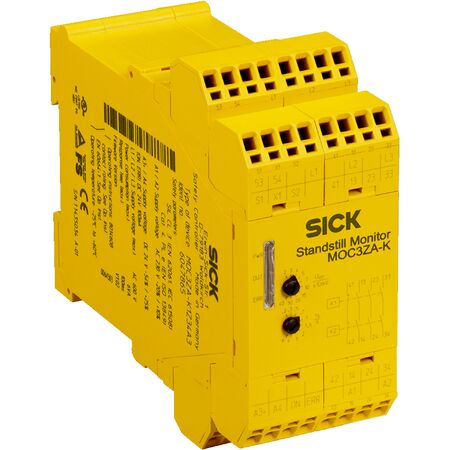

The SICK MOC3ZA-KAZ33A3 Safety-Related Standstill Monitor is available for immediate purchase, ideal for industrial safety applications requiring high integrity motor standstill monitoring.
