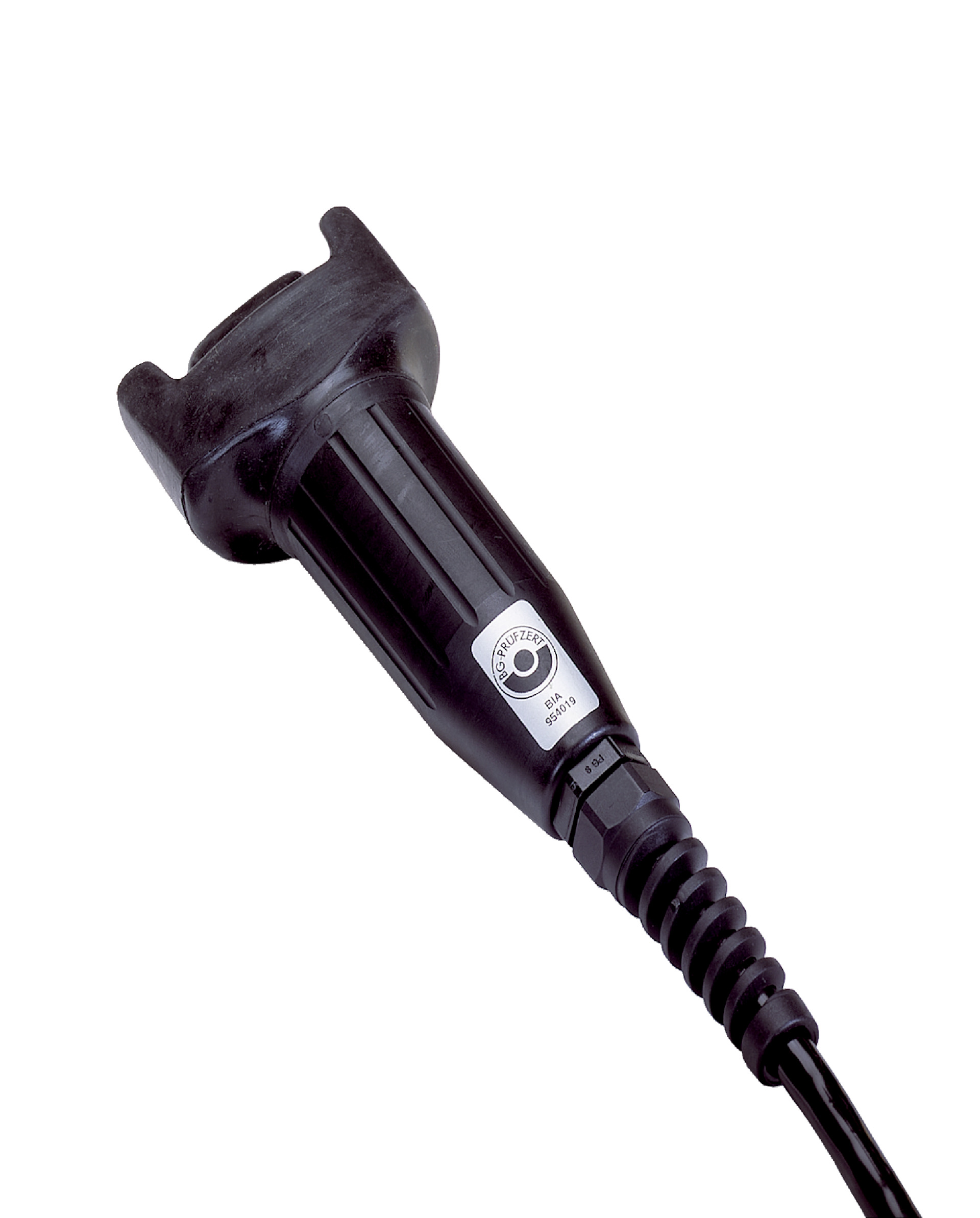

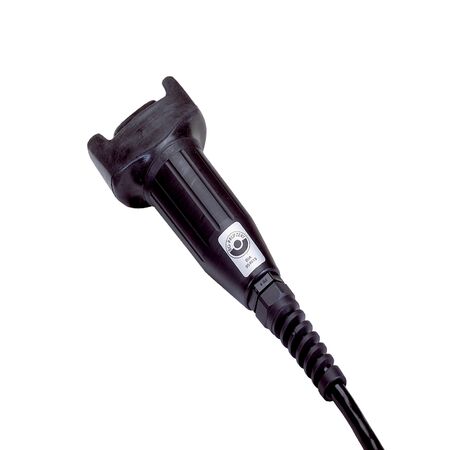

Safety Switch E100-A2A22S10A | 2 N/C & 2 N/O Contacts | IP67 Rated | by SICK
The E100-A2A22S10A safety switch is designed for industrial safety systems, featuring 2 positive action normally closed (N/C) contacts and 2 normally open (N/O) contacts. With an IP67 rated enclosure for dust and water protection, this switch ensures reliable operation in automation and control systems, making it ideal for machinery safety interlocks and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 2
- Actuation directions: 1
- B10d parameter: 5 x 10^5 switching cycles (small load)
- Safe state in fault: No internal fault detection; relies on external safety logic
- Safe series connection: None, individual wiring with diagnostics
- Connection type: Cable open end
- Cable length: 10 m
- Cable diameter: 8 mm
- Conductor cross section: 8 x 0.34 mm²
- Bend radius fixed installation: >7.5 x cable diameter
- Bend radius moving cable: >15 x cable diameter
- Cable material: PUR
- Conductor material: Copper
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (EN 60947-5-1)
- Rated operating current: 2 A (230 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Short-circuit protection: 2 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Mechanical life: 100,000 switching cycles
- Housing material: Plastic
- Enclosure rating: IP67 (EN 60529)
- Operating temperature: -5 °C to +50 °C
- Storage temperature: -5 °C to +50 °C
- Dimensions (H x L x W): 132mm x 64mm x 64mm
- Weight: 1.27 kg
Key Features
- 2 positive action normally closed (N/C) contacts
- 2 normally open (N/O) contacts
- Slow action switching element
- IP67 rated enclosure for dust and water protection
- Cable open end with 10 m PUR cable and copper conductors
- Mechanical life of 100,000 switching cycles
- Rated operating current of 2 A at 230 V AC and 24 V DC
- Short-circuit protection with 2 A gG fuse
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with safety switch wiring and compliance with relevant safety standards.
Applications
- Industrial safety systems requiring reliable safety switch monitoring
- Machinery safety interlocks
- Automation and control systems with safety requirements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- High-quality materials ensure long service life
- Compliant with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK E100-A2A22S10A safety switch is available for immediate purchase, ideal for industrial safety and automation applications.
