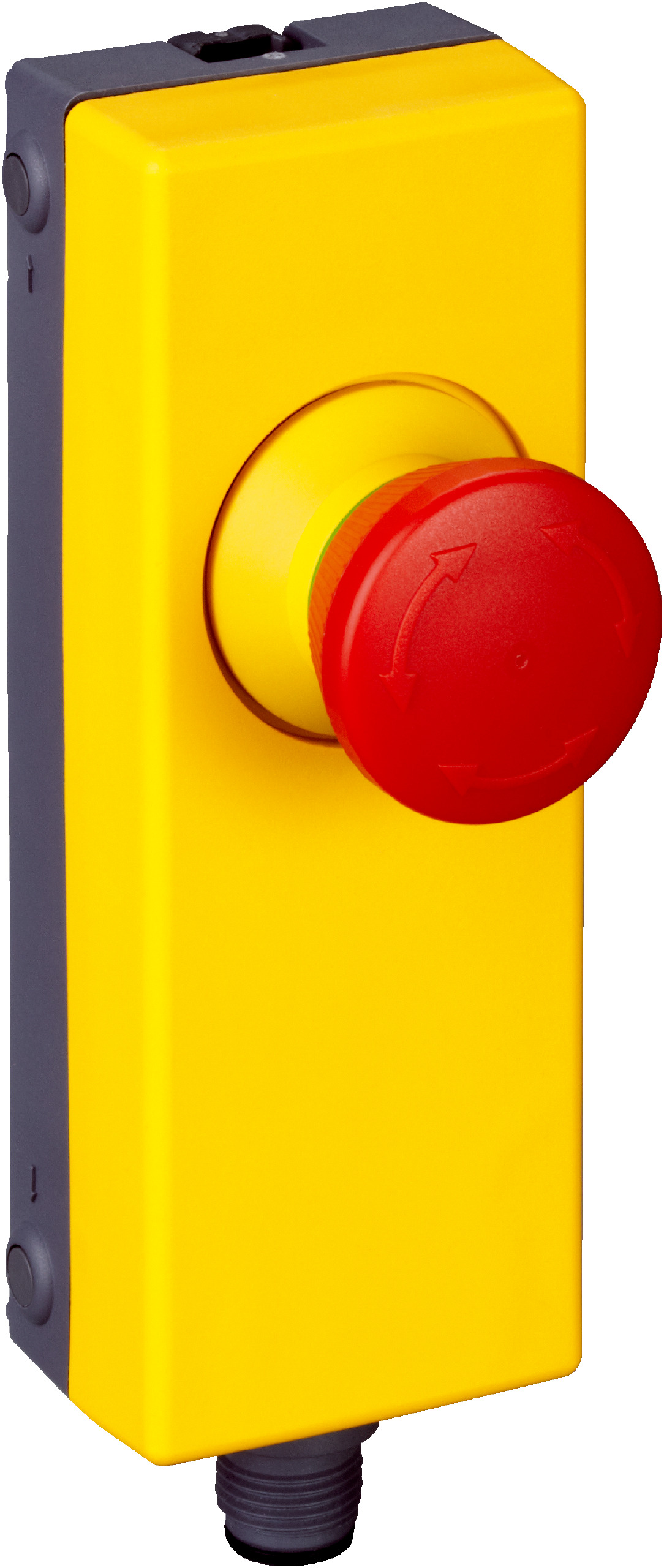

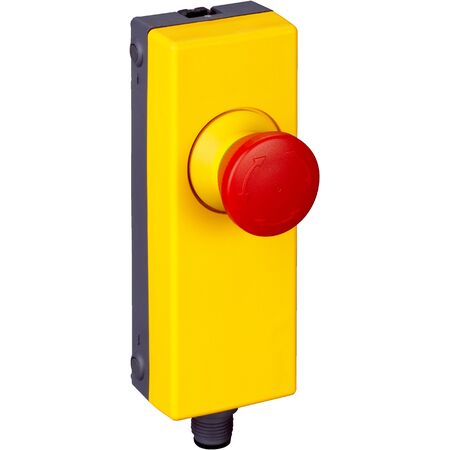

Safety Switch ES11-SA1A4 | 2 Positive Action N/C Contacts | IP65 Rated | by SICK
The ES11-SA1A4 safety switch features 2 positive action normally closed contacts, ensuring reliable emergency stop functions in industrial safety systems. With an IP65 rated enclosure and a wide operating temperature range of -25°C to +70°C, this switch is perfect for machinery safety interlocks and automation control systems. Built for durability and compliance with safety standards, it’s an essential component for any safety circuit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 0
- Actuation directions: 1
- Rated operating current: 2 A at 24 V DC
- Contact material: Silver Nickel (AgNi)
- Electrical life for emergency stop pushbuttons: 50,000 switching cycles
- Mechanical life for emergency stop pushbuttons: 50,000 switching cycles
- Protection class: III (EN 50178)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature range: -25°C to +70°C
- Storage temperature range: -25°C to +80°C
- Connection type: Plug connector, M12, 4-pin
- Coupling nut material: PBT
- Housing material: PBT
- Dimensions (H x L x W): 123mm x 52mm x 40mm
- Weight: 0.112 kg
Key Features
- 2 positive action normally closed (N/C) contacts
- Slow action switching element for reliable operation
- Safe series connection capability with Flexi Loop including diagnostics
- Plug connector M12, 4-pin with PBT coupling nut
- Protection class III (EN 50178)
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with safety standards and proper integration into safety circuits.
Applications
- Industrial safety systems requiring reliable emergency stop functions
- Machinery safety interlocks
- Automation and control systems with safety requirements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable PBT housing reduces need for frequent replacements
- High electrical and mechanical life reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ES11-SA1A4 safety switch is available for immediate purchase, ideal for industrial safety and emergency stop applications.
