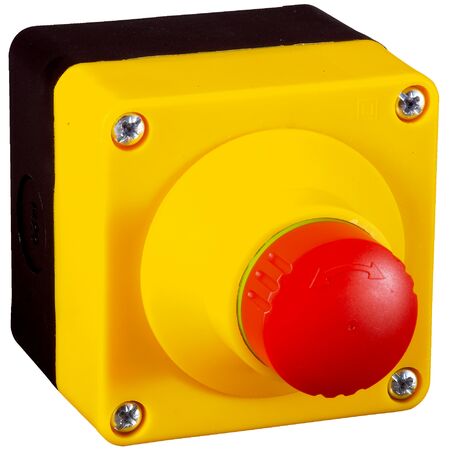

Safety Switch ES21-SA10E1 | 2 Positive Action N/C Contacts | Rotary Release Type | IP65 Rated | by SICK
The ES21-SA10E1 Safety Switch is designed for industrial safety systems, featuring 2 positive action normally closed contacts and a secure rotary release type for reliable actuation. With an IP65 rated enclosure, it offers excellent dust and water protection, making it ideal for machinery safety interlocks and surface mount applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 0
- Actuation directions: 1
- Release type: Rotary release
- B10d parameter: 2.5 x 10^5 switching cycles
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Cable gland, 2 x M20
- Conductor cross section: ≤ 2.5 mm²
- Contact: Screw connection
- Protection class: II (EN 50178)
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (EN 60947-5-1)
- Rated operating current (voltage): 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 600 V
- Switching voltage: ≥ 5 V DC
- Switching current: ≥ 1 mA
- Housing material: Plastic
- Mounting version: Surface mount
- Enclosure rating: IP65 (IEC 60529)
- Ambient operating temperature: –25 °C to +60 °C
- Storage temperature: –25 °C to +85 °C
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 0.21 kg
Key Features
- 2 positive action normally closed (N/C) contacts
- Rotary release type for secure actuation
- Obstruction protection included
- Surface mount version for easy installation
- IP65 rated enclosure for dust and water protection
- Slow action switching element for reliable operation
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with safety switch wiring and compliance standards.
Applications
- Industrial safety systems requiring positive action N/C contacts
- Machinery safety interlocks
- Surface mount safety switch applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable plastic housing reduces material waste
- Long operational life reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ES21-SA10E1 Safety Switch is available for immediate purchase, ideal for industrial safety and machinery interlock applications.
