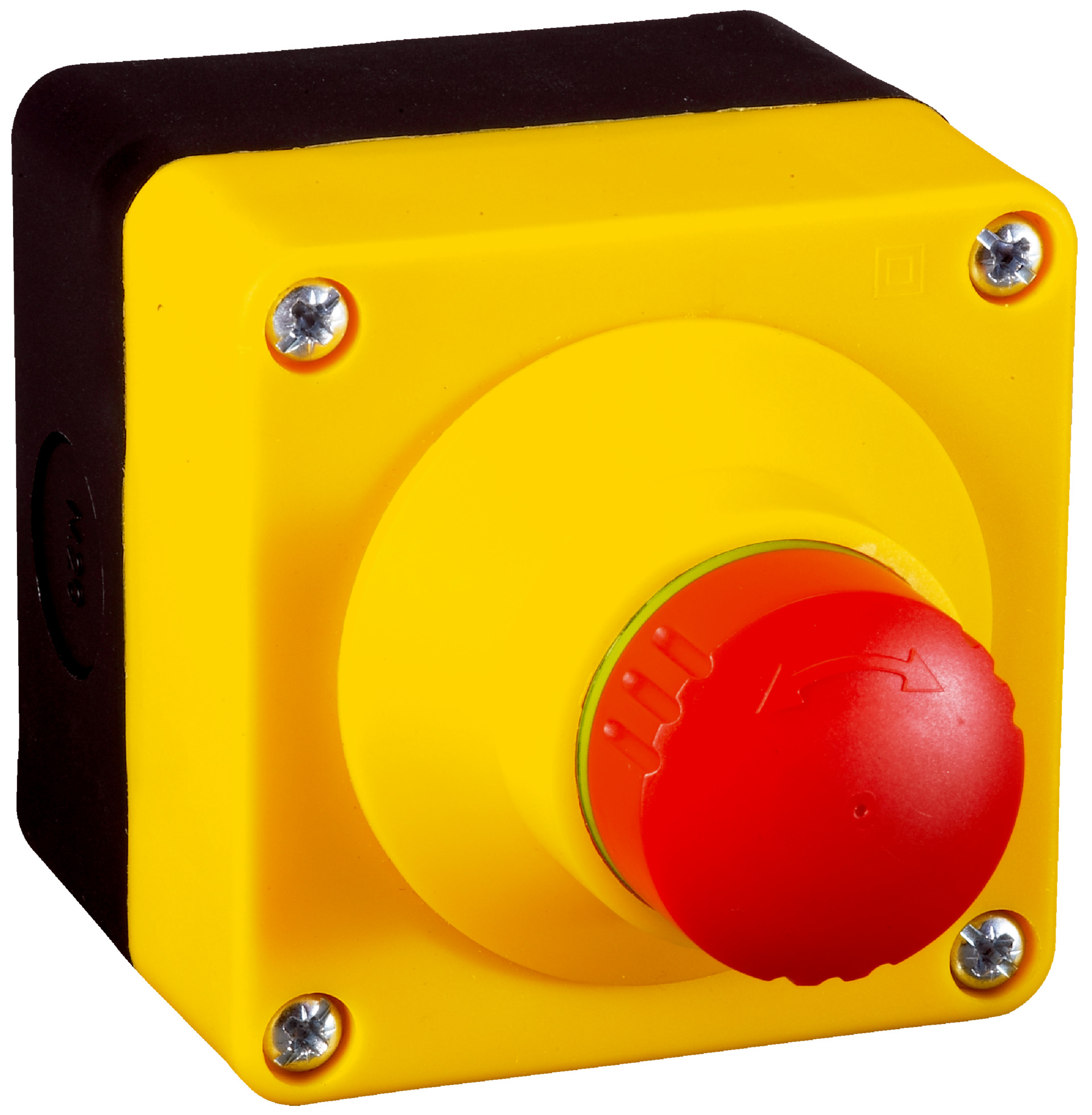

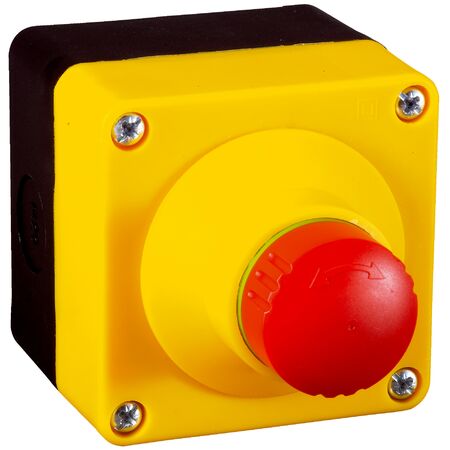

Safety Switch ES21-SA10F1 | Positive Action N/C Contacts | Rotary Release | IP65 Rated | by SICK
The ES21-SA10F1 Safety Switch features 2 positive action normally closed contacts and 1 normally open contact, making it ideal for industrial safety systems and machinery interlocks. With a rotary release for easy manual reset and an IP65 rated enclosure, this switch ensures reliable operation in demanding environments, providing peace of mind for safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 1
- Actuation directions: 1
- Release type: Rotary release
- B10d parameter: 2.5 x 10^5 switching cycles
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Cable gland, 2 x M20
- Conductor cross section: ≤ 2.5 mm²
- Contact connection: Screw connection
- Protection class: II (EN 50178)
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (EN 60947-5-1)
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 600 V
- Switching voltage: ≥ 5 V DC
- Switching current: ≥ 1 mA
- Housing material: Plastic
- Mounting version: Surface mount
- Enclosure rating: IP65 (IEC 60529)
- Ambient operating temperature: –25 °C to +60 °C
- Storage temperature: –25 °C to +85 °C
- Dimensions (H x L x W): 100mm x 40mm x 60mm
- Weight: 0.22 kg
Key Features
- 2 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact
- Rotary release type for easy manual reset
- Obstruction protection included
- Slow action switching element for reliable operation
- Surface mount version with plastic housing
- IP65 rated enclosure for dust and water protection
- Rated operating current: 3 A at 250 V AC, 2 A at 24 V DC
- Rated insulation voltage of 600 V
- Suitable for AC-15/DC-13 usage category
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure compliance with safety standards and proper wiring.
Applications
- Industrial safety systems requiring reliable positive action contacts
- Machinery safety interlocks
- Surface mount safety switch applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ES21-SA10F1 Safety Switch is available for immediate purchase, ideal for industrial safety and machinery interlock applications.
