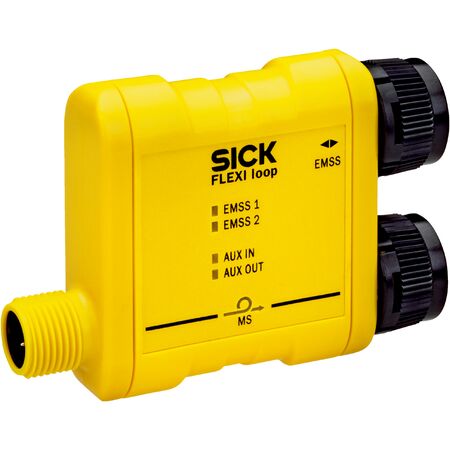

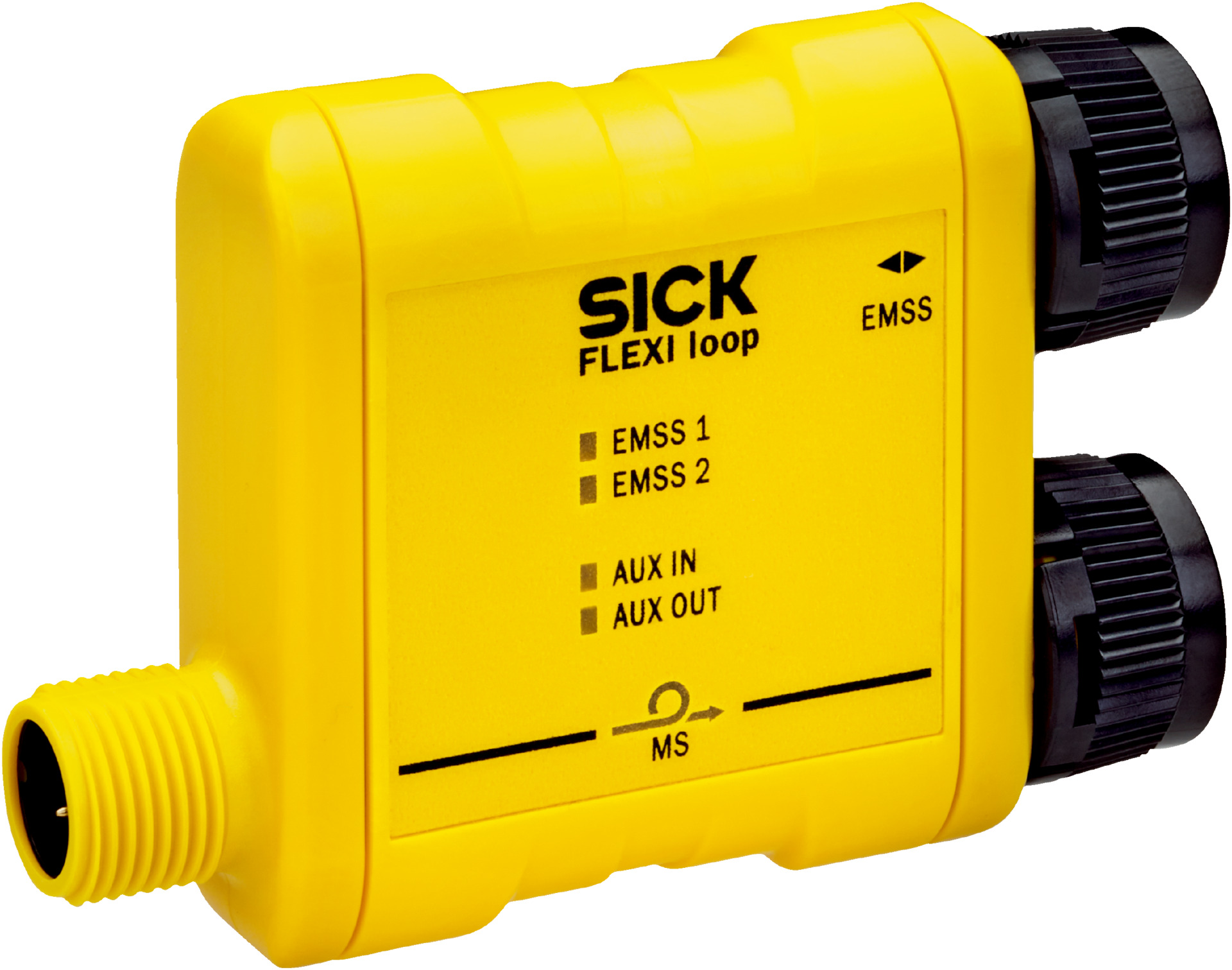

Safety Switch Module FLN-EMSS1100108 | SIL 3 & Category 4 | Diagnostic Functions | by SICK
The FLN-EMSS1100108 safety switch module is designed for industrial safety systems, featuring SIL 3 safety integrity and Category 4 compliance. Ideal for machine safety monitoring and automation systems, it offers diagnostic functions for enhanced reliability and safety. With a durable IP65/IP67 rated enclosure, this module ensures long-lasting performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 48mm x 18mm x 68mm
- Weight: 0.1 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e
- Diagnostic and monitoring functions including cross-circuit, short-circuit, discrepancy and sequence error monitoring via Flexi Loop node
- Dual-channel equivalent electro-mechanical safety switch connection
- Female and male M12 connectors for safety device and Flexi Loop connections
- Power supply output for external devices up to 2 A
- Highside driver output, short-circuit protected
- Operating voltage 24 V DC (16.8 V DC to 30 V DC)
- Power consumption 55 mA
- Test pulse interval 40 ms and width 12 ms
Professional Installation Requirements
- Installation by qualified personnel familiar with safety systems and electrical standards is required to ensure compliance and safety.
Applications
- Industrial safety systems requiring high integrity safety switches
- Machine safety monitoring and control
- Automation systems with safety compliance requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65/IP67 rated enclosure ensures long product life and reduces waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK FLN-EMSS1100108 safety switch module is available for immediate purchase, ideal for industrial safety and automation applications.
