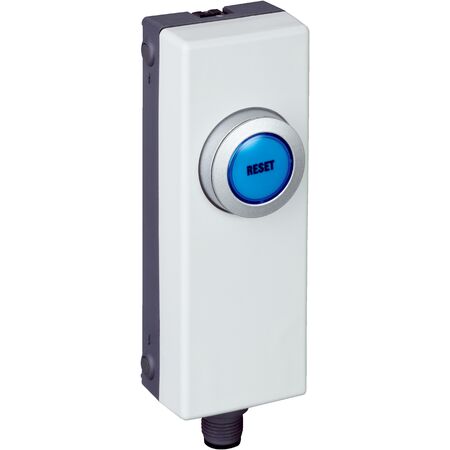

Safety Switch with Reset Button | IP65 Rated | Illuminable Pushbutton | 1 N/O Contact | by SICK
The Safety Switch with Reset Button is designed for reliable monitoring in industrial safety systems. Featuring an IP65 rated enclosure and an illuminable reset pushbutton, it ensures clear status indication and is suitable for muting applications with UE403. Built for durability and low power consumption, this switch is ideal for machinery and equipment safety control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- 1 Normally Open (N/O) contact
- Reset pushbutton rated for 1 million switching cycles
- Rated operating current: 2 A at 24 V DC
- Contact material: Silver Nickel with 5 µm gold plating
- Electrical life: 1 x 10^6 switching cycles
- Mechanical life of reset pushbutton: 1 x 10^6 cycles
- Supply voltage: 30 V AC/DC
- Power consumption: 14 mA at 24 V DC
- Connection type: Plug connector, M12, 4-pin
- Coupling nut material: PBT
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -25°C to +70°C
- Storage temperature: -25°C to +80°C
- Dimensions (H x L x W): 123mm x 36mm x 40mm
- Weight: 0.106 kg
Key Features
- 1 Normally Open (N/O) contact
- Illuminable reset pushbutton for clear status indication
- Suitable for muting applications with UE403
- Slow action switching element for reliable operation
- Plug connector M12, 4-pin with PBT coupling nut
- Protection class III (EN 61140)
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with safety switch wiring and compliance standards to ensure proper function and safety.
Applications
- Industrial safety systems requiring reliable safety switch monitoring
- Muting applications when used with UE403
- Machinery and equipment safety control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption at 14 mA reduces energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ER12-SB3C4S01 safety switch is available for immediate purchase, ideal for industrial safety and muting applications.
