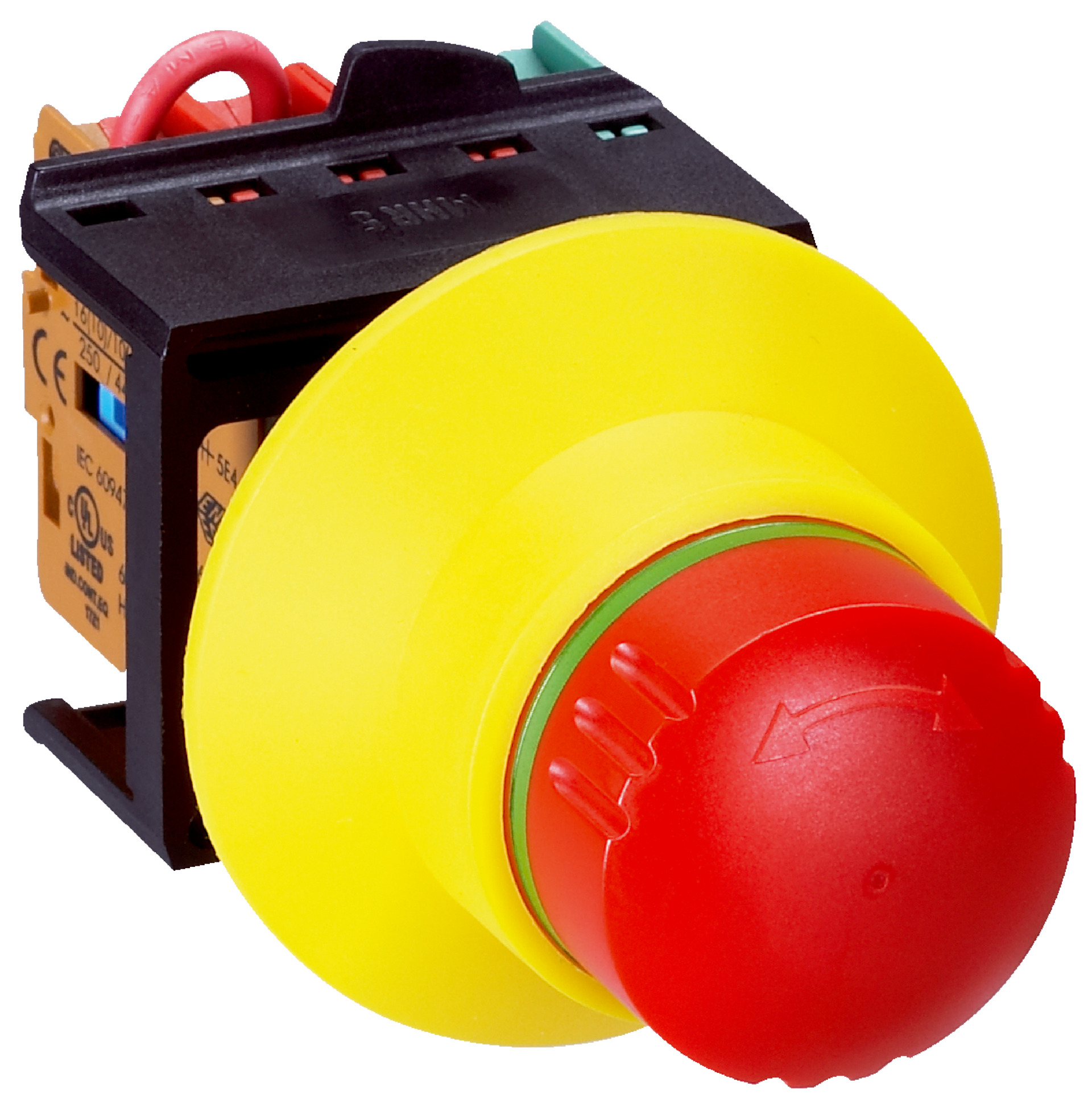

Safety Switch Rotary Release | 2 N/C & 1 N/O Contacts | IP65 Rated | by SICK
The Safety Switch Rotary Release ES21-SB10G1 features 2 positive action normally closed contacts and 1 normally open contact, making it ideal for industrial safety systems. With an IP65 rated enclosure for dust and water protection and a reliable slow action switching element, this panel mount safety switch ensures secure actuation and compliance with safety standards, perfect for machinery interlocks and automation equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 1
- Actuation directions: 1
- Contact module for panel mount version included
- Obstruction protection: Yes
- Release type: Rotary release
- B10d parameter: 2.5 x 10^5 switching cycles
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Terminal strip with screw connection
- Conductor cross section: ≤ 2.5 mm²
- Protection class: II (EN 50178)
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (EN 60947-5-1)
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 600 V
- Switching voltage: ≥ 5 V DC
- Switching current: ≥ 1 mA
- Housing material: Plastic
- Mounting version: Panel mount
- Enclosure rating: IP65 (IEC 60529)
- Ambient operating temperature: -30 °C to +70 °C
- Storage temperature: -50 °C to +85 °C
- Dimensions (H x L x W): 80mm x 40mm x 50mm
- Weight: 0.15 kg
Key Features
- 2 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact
- Rotary release type for secure actuation
- Obstruction protection included
- Panel mount version with contact module
- Slow action switching element for reliable operation
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +70°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with safety switch wiring and compliance standards.
Applications
- Industrial safety systems requiring reliable panel mount safety switches
- Machinery safety interlocks
- Automation equipment safety monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable plastic housing reduces material waste and extends product life
- IP65 rating ensures long-term reliability reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ES21-SB10G1 Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications.
