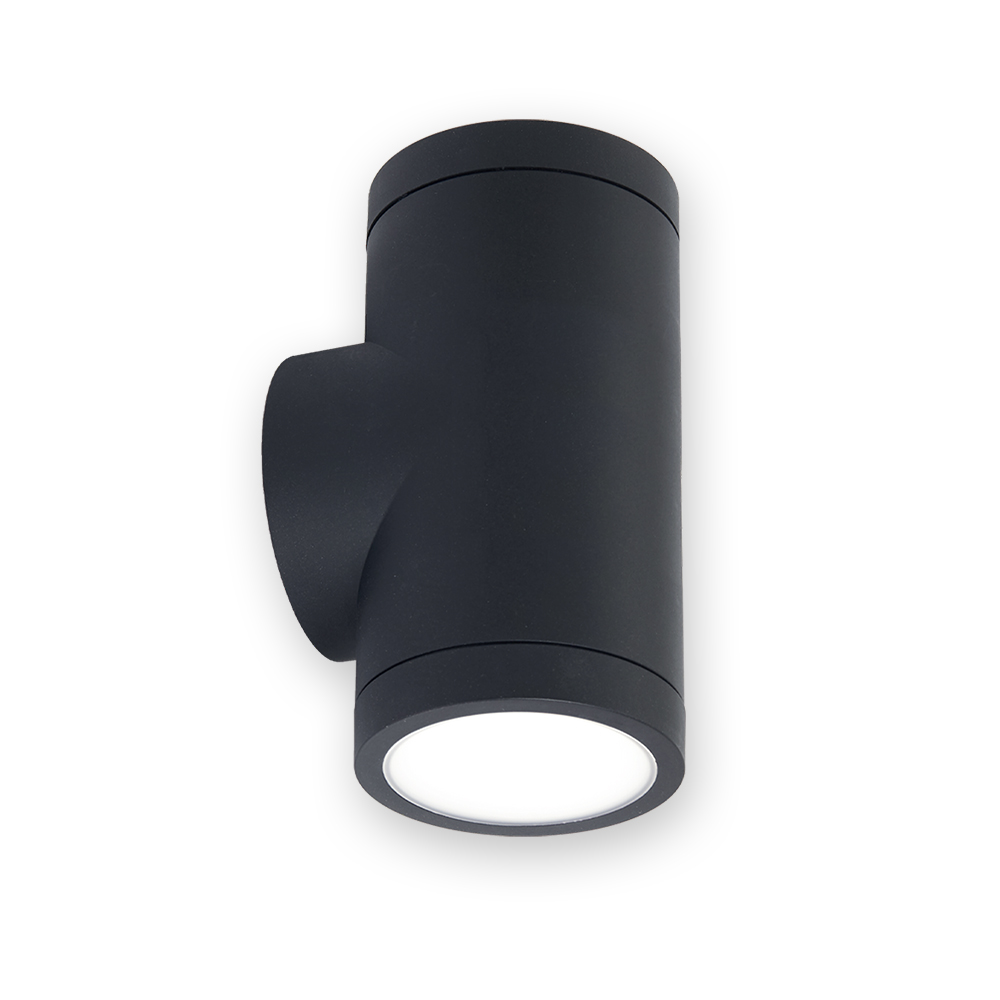

SAMBA LED Up/Down Wall Light | Tri-CCT | IP65 Rated | 100 lm/W Efficiency | by atom
The SAMBA LED Up/Down Wall Light features a versatile Tri-CCT configuration, allowing you to choose between Warm White, Cool White, and DayLight options. With an impressive total system efficiency of 100 lm/W and an IP65 rating, this wall light is perfect for both residential and commercial outdoor applications, providing reliable illumination while enhancing your space's aesthetic.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tri-CCT LED Wall Light, Up Down LED Wall Light, Outdoor LED Wall Sconce, Atom SAMBA Wall Light
Technical Specifications
- Total System Efficiency: 100 lm/W
- IP Rating: IP65
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Wall mount
- Working Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 10 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (3000K, 4000K, 5700K)
- LED Lifetime: >54,000 hours (TM-21 Reported)
- Driver Type: Fixed output, integrated
- Dimmable: No
- Wiring Type: Re-wireable terminal block (2 pin)
- Dimensions (H x L x W): 200mm x 90mm x 120mm
- Weight: 0.8 kg
Key Features
- Tri-CCT configuration with selectable Warm White (3000K), Cool White (4000K), and DayLight (5700K)
- High total system efficiency of 100 lm/W
- IP65 rated for protection against dust and water jets
- Fixed adjustability with integrated driver
- Polycarbonate body and diffuser for durability
- Long LED lifetime of over 54,000 hours based on TM-21 testing
- Non-dimmable with re-wireable terminal block (2 pin)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Residential: Indoor and outdoor wall lighting
- Commercial: Accent and security lighting for building exteriors
- Hospitality: Ambient lighting for outdoor dining and pathways
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 61347 – Lamp Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
Environmental Benefits
- Energy-efficient LED technology reduces power consumption and carbon footprint.
- Long LED lifespan minimizes waste and replacement frequency.
Warranty Information
3 years return to base warranty for domestic use.
Available Now
The SAMBA LED Up/Down Wall Light in White finish by atom is available for immediate purchase, ideal for residential and commercial outdoor wall lighting applications.
