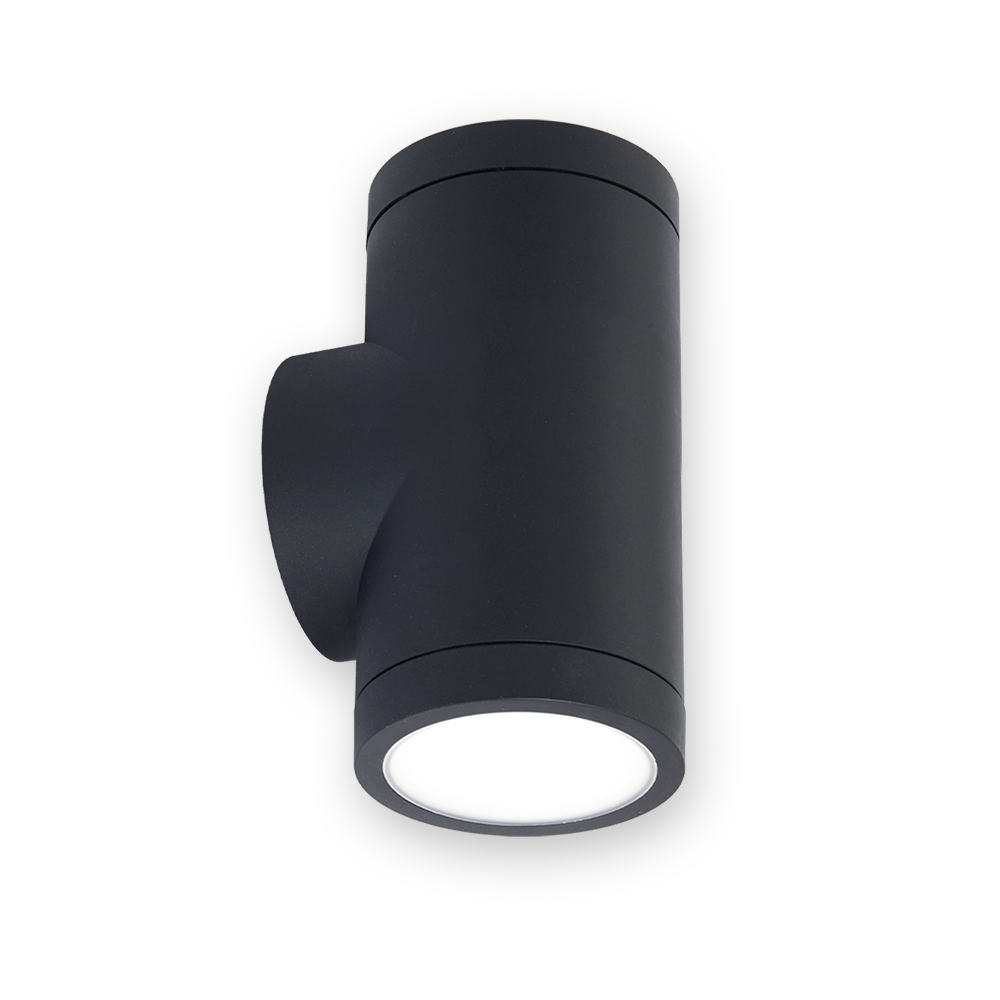

SAMBA LED Up/Down Wall Light | Tri-CCT | IP65 Rated | Charcoal Finish | by atom
The SAMBA LED Up/Down Wall Light features a versatile Tri-CCT configuration, allowing you to choose between Warm White, Cool White, and DayLight options. With an impressive total system efficiency of 100 lm/W and an IP65 rating, this wall light is perfect for both indoor and outdoor applications. Designed for durability with a polycarbonate body, it’s ideal for residential and commercial settings, providing reliable lighting for any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tri-CCT LED Wall Light, Up Down LED Wall Light, Charcoal LED Wall Sconce
Technical Specifications
- Total System Efficiency: 100 lm/W
- IP Rating: IP65
- Adjustability: Fixed
- Fitting Colour: Charcoal
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Wall mount
- Working Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 10 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Colour Rendering Index (CRI): >80
- CCT Configuration: TRI-CCT (3000K, 4000K, 5700K)
- LED Lifetime: >54,000 hours (TM-21 Reported)
- TM-21 Test Hours: 9000 hours
- Driver Type: Fixed output, integrated
- Dimmable: No
- Wiring Type: Re-wireable terminal block (2 pin)
- Dimensions (H x L x W): 100mm x 80mm x 150mm
- Weight: 0.8 kg
Key Features
- Tri-CCT colour temperature configuration: Warm White (3000K), Cool White (4000K), DayLight (5700K)
- High total system efficiency of 100 lm/W
- IP65 rated for protection against dust and water jets
- Fixed output integrated driver included
- Polycarbonate body and diffuser for durability
- Non-dimmable with re-wireable terminal block (2 pin)
- Long LED lifetime greater than 54,000 hours based on TM-21
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential: Outdoor and indoor wall lighting
- Commercial: Accent and security lighting for building exteriors
- Hospitality: Ambient lighting for outdoor dining and lounge areas
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 61347 – Lamp Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption and carbon footprint.
- Long LED lifespan minimizes waste and replacement frequency.
Warranty Information
3 years return to base (RTB) warranty for domestic use.
Available Now
The SAMBA LED Up/Down Wall Light in Charcoal finish is available for immediate purchase, ideal for residential and commercial wall lighting applications.
