Sapphire RT 1.5 1500VA Online 2U Rack Tower UPS Chase Power

BRAND: Chase Power
SKU: CP2310
$1,497.20 List price: $2,245.80
+ −
30 Days Return Electricians Unlock Trade Access
Chase Power Sapphire RT 1.5 online double conversion UPS 1500VA/1350W rack/tower. True online protection for IT racks.

Alternatively Known As: Sapphire RT 1.5 UPS, Chase Power 1.5kVA Rack/Tower UPS, 1500VA Online UPS, 2U Rack UPS

Technical Specifications
  • UPS Topology: True online double conversion
  • Capacity: 1500VA / 1350W
  • Input Voltage Range: 160–290VAC at full load; 110–290VAC at loads up to 60%
  • Input: Single-phase with ground, auto-sensing frequency
  • Input Power Factor: >0.98
  • Generator Compatibility: Supported
  • Output Voltage: 200/208/220/230/240VAC
  • Output Power Factor: 0.9
  • Output Voltage Regulation: ±2%
  • Output Waveform: Pure sine wave

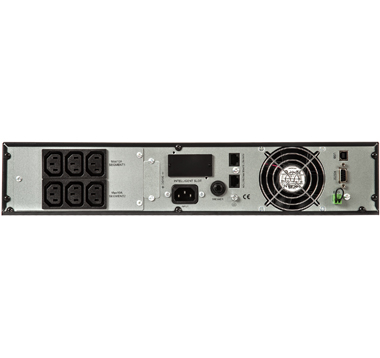

  • Output Sockets: 6 x IEC C13 10A
  • Transfer Time: 0ms mains to battery; <4ms mains to bypass
  • Efficiency: ≥90% AC mode; ≥85% battery mode; ≥94% ECO mode
  • Battery Configuration: 3 x 12V/9Ah batteries, 36VDC nominal
  • Recharge Time: Approximately 5 hours to 90%
  • Battery Charging Current: 1.2A maximum
  • Overload Capacity: 30 seconds at 100–150%; 300ms above 150%
  • Communications: USB and RS-232; optional SNMP card
  • Emergency Shutdown: EPO connector and front-panel EPO controls
  • Operating Temperature: 0–40°C
  • Relative Humidity: 0–90%, non-condensing
  • Noise Level: <50dB at 1 metre
  • Safety Marking: CE
  • Dimensions (H x L x W): 86.5mm x 430mm x 440mm
  • Weight: 18.1 kg
Key Features
  • True online double-conversion protection for continuous voltage and frequency regulation
  • Rack/tower configurable 2U chassis
  • Pure sine-wave output suitable for servers, networking equipment and sensitive electronics
  • Hot-swappable battery design
  • LCD display with load, battery, input, output and operating-mode information
  • Power-shedding function for prioritising critical loads during battery operation
  • Selectable ECO mode for improved operating efficiency
  • Cold-start capability
  • Emergency power-off function
  • Frequency-converter mode selectable through the LCD
  • Generator-compatible input
  • USB and RS-232 monitoring interfaces with optional SNMP capability
Professional Installation Requirements
  • For plug-in operation, connect to a suitable 10A supply in accordance with the manufacturer's instructions. Fixed electrical connections, bypass equipment or site-level UPS installation should be completed and tested by a licensed electrician in accordance with AS/NZS 3000 and applicable UPS requirements.
Applications
  • Server racks and data-centre equipment
  • IT and network infrastructure
  • Telecommunications and radio systems
  • Industrial control and electronic equipment
  • Medical and security equipment
  • Automatic gates and access-control systems
  • Business-critical workstations and communications equipment
Standards & Compliance
  • AS 62040.1:2019 – applicable Australian safety standard for uninterruptible power systems
  • AS IEC 62040.2 – applicable electromagnetic compatibility requirements for UPS equipment
  • AS IEC 62040.3 – applicable UPS performance and test classification standard
  • AS/NZS 3000 – applicable to associated fixed electrical installation work
Environmental Benefits
  • ECO mode can reduce energy consumption during suitable operating conditions
  • High-efficiency operation helps reduce electricity use and associated operating emissions
  • Hot-swappable batteries can extend serviceability and reduce premature equipment replacement
  • Replaceable lead-acid batteries should be recycled through an approved battery-recycling service at end of life
Warranty Information

Chase Power states that its UPS warranty is equal to or superior to competing UPS brands; the specific warranty period and battery coverage should be confirmed with Chase Power or the authorised distributor before purchase.

Available Now

Available through Chase Power and authorised Australian distributors, subject to current distributor stock.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
