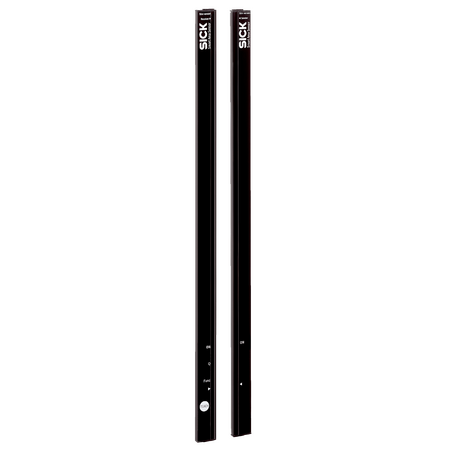

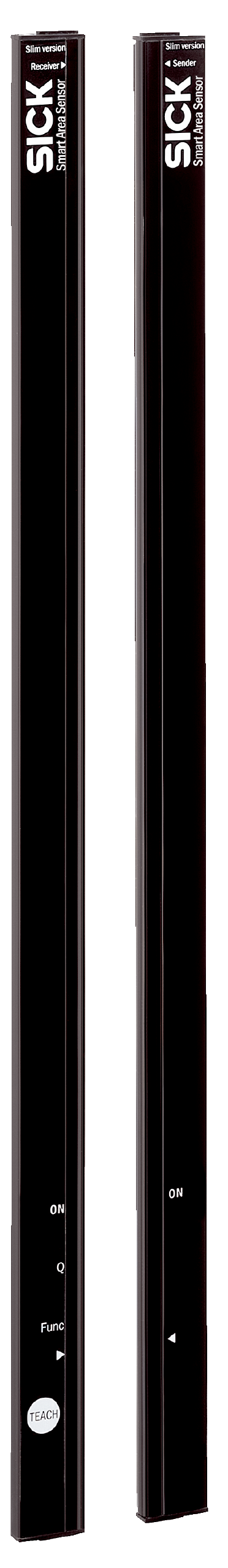

SAS4-S028P7PS1W01 | Automation light grids
The SICK SAS4-S028P7PS1W01 automation light grid sensor features 8 cross beams for precise object detection in industrial automation, offering robust performance with IP65 protection and high ambient light immunity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SAS4-S028P7PS1W01 | Automation light grids
Brand: SICK
SKU: 1214753
Alternatively Known As: Light curtain sensor, safety light grid, automation light barrier, optical safety sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Number of beams: 8 cross beams
- Minimum detectable object: 25 mm
- Beam separation: 40 mm
- Detection height: 280 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Initialization time: 1 s
- Inputs: Teach-in input (receiver), Test input (sender)
- Connection type: Cable with M8 male connector, 4-pin
- Housing material: PMMA
- Enclosure rating: IP65
- Protection class: III
- Response time: 57 ms
- Operating range: 7 m
- Maximum range: 10 m
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient operating temperature: –25 °C to +55 °C
- Ambient storage temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 352mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 8 cross beams
- Minimum detectable object size of 25 mm
- Slim optical light exit design
- Infrared light source with 950 nm wavelength
- High ambient light immunity up to 150,000 lx indirect
- IP65 rated enclosure for dust and water protection
- PNP switching output with 100 mA max output current
- Cable connection with M8 male connector, 4-pin
- Shock resistance of 10 g and vibration resistance of 5 g
- Automatic teach and muting functions deactivated
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure proper alignment and compliance with safety standards.
Applications
- Industrial automation for object detection and safety monitoring
- Machine guarding and perimeter protection
- Conveyor and production line monitoring
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable IP65 housing reduces need for frequent replacements
- Supports safer automation reducing workplace accidents
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SAS4-S028P7PS1W01 automation light grid sensor is available for immediate purchase, ideal for industrial automation and safety applications.
