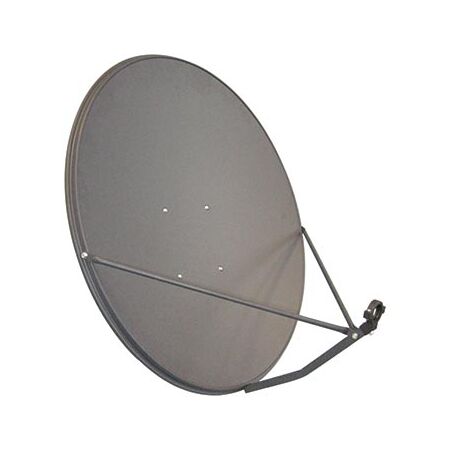

Satellite Dish 120cm | High Gain | Heavy Duty
Satellite dish with high gain and heavy-duty construction—ideal for Ku-Band reception systems. Built for robust performance, with rolled edges for added strength and compatibility with Pay-TV and VAST services.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Satellite Dish 120cm | High Gain | Heavy Duty
SKU: 13MM-R120PN
Alternatively Known As: 120cm Satellite Dish, Ku-Band Satellite Dish, High Gain Satellite Antenna, Heavy Duty Satellite Dish
Technical Specifications
- Reception Frequency: 11.70–12.75 GHz
- Output Frequency: 950–2050 MHz
- L.O. Frequency: 10.7 GHz
- Gain: 60 dB
- Gain Flatness in 54 MHz Bandwidth: ±1.0 dB
- Gain Flatness Across Band 11.7–12.75 GHz: ±2.5 dB
- Gain Difference Between V & H Polarity: 3 dB maximum
- Noise Figure: 0.8 dB
- Image Rejection: 40 dB minimum
- 1dB Compression Point: 0 dBm
- 3rd Order Modulation (Two Tones) Intercept Point: 50 dBc minimum
- L.O. Stability Room Temperature: ±300 KHz
- L.O. Stability Over Temperature: ±500 KHz
- L.O. Phase Noise @ 1 KHz Offset: -55 dBc/Hz maximum
- L.O. Phase Noise @ 10 KHz Offset: -80 dBc/Hz maximum
- L.O. Phase Noise @ 100 KHz Offset: -90 dBc/Hz maximum
- L.O. Leakage @ Input: -50 dBm
- Output VSWR: 2.0:1
- Cross-Polar Isolation: 25 dBm
- Polarity Switching Voltage Vertical: 11.5–14 V
- Polarity Switching Voltage Horizontal: 16–19 V
- DC Current Consumption Input Voltage: 110 mA
- Mobile Interference Suppression: -10 dBm Output @ Test Fixture Antenna Assemble Stage -40 dBm
- Operating Temperature: -30 to +70 °C
- Dimensions (H x L x W): 1200mm x 1200mm x 1200mm
- Weight: 5 kg
Key Features
- Heavy Duty construction with rolled edges for added strength
- High Gain with 60dB
- Supports Ku-Band frequency range
- Mobile interference suppression
- Wide operating temperature range from -30 to +70°C
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal alignment and performance.
Applications
- Ku-Band reception systems
- Pay-TV services
- VAST services
- Caravan travel kits
- Commercial reception systems
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports efficient signal reception reducing power consumption of associated equipment
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 120cm Satellite Dish is available now for immediate purchase. Ideal for residential, caravan, and commercial Ku-Band satellite reception applications.
