SB Earth Cable 70/35 mm2 | 19.5kA Rating | Copper Material & Rubber Insulation by Cabac

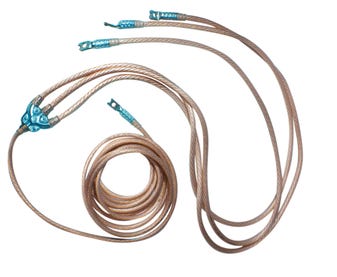

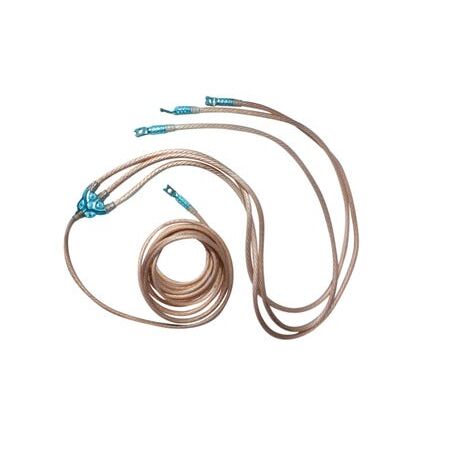

The Cabac SB Earth 70/35 mm2 Cable Set is a premium copper trifurcating earthing cable designed for switchboard earthing applications, offering high fault current rating and durable insulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SB Earth 70/35 mm2 Cable
Brand: Cabac
SKU: D-770604
Alternatively Known As: Switchboard Earth Cable 70/35 mm2, Copper Earthing Cable Set, Trifurcating Earth Cable
Technical Specifications
- A/B/C Phase Tail: 70mm² x 600mm
- Earth Tail: 35mm² x 1800mm
- Rated to 19.5kA for 0.5 seconds
- Material: High purity copper
- Insulation: Advanced rubber moulding
- Dimensions (H x L x W): 35mm x 1800mm x 70mm
- Weight: 1.5 kg
Key Features
- German engineered ultra high quality copper trifurcating earthing cable set
- Includes A/B/C phase tails of 70mm² x 600mm
- Earth tail of 35mm² x 1800mm
- Advanced rubber moulding and insulation for durability
- Rated to 19.5kA for 0.5 seconds for high fault current capacity
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical switchboard earthing and bonding
- Industrial and commercial electrical installations
- Temporary portable earthing for safety during maintenance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High-quality copper ensures excellent conductivity reducing energy loss
- Durable insulation extends product life reducing waste
- Supports safe electrical installations minimizing environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac SB Earth 70/35 mm2 Cable Set is available for immediate purchase, ideal for electrical switchboard earthing and bonding applications.
