SB Earth Set 120mm² | 33.5kA Short Circuit Rating | Universal Earthing Clamps | 50mm by Cabac

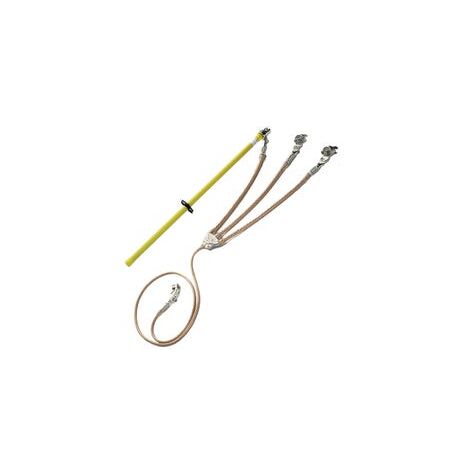

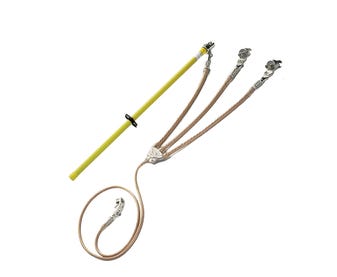

The Cabac SB Earth Set 120/50mm2 is a high-quality switchboard portable earthing device set rated for 33.5kA short circuit and 14.0kA earth fault, designed for electrical safety in industrial and construction applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SB Earth Set 120/50mm2
Brand: Cabac
SKU: D-712604-SET
Alternatively Known As: Portable Earthing Set, Switchboard Earthing Cable Set, Temporary Earthing Device, Electrical Earthing Kit
Technical Specifications
- A/B/C Phase Tail: 120mm² x 600mm
- Earth Tail: 35mm² x 1800mm
- Universal Earthing Clamps on A/B/C cables and earth tail
- Short Circuit Rating: 33.5kA for 0.5 seconds
- Earth Fault Rating: 14.0kA for 0.5 seconds
- Dimensions (H x L x W): 50mm x 1800mm x 120mm
- Weight: 5 kg
Key Features
- Rated to 33.5kA for 0.5 seconds short circuit
- Rated to 14.0kA for 0.5 seconds earth fault
- Includes A/B/C phase tails 120mm² x 600mm
- Earth tail 35mm² x 1800mm
- Universal earthing clamps on A/B/C cables and earth tail
- German engineered ultra high quality copper trifurcating earthing cable set
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper earthing connection.
Applications
- Electrical switchboard earthing and bonding
- Temporary portable earthing for electrical safety
- Industrial and construction site electrical safety
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical faults and fires
- Durable copper construction ensures long service life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac SB Earth Set 120/50mm2 is available for immediate purchase, ideal for electrical switchboard earthing and temporary portable earthing applications.
