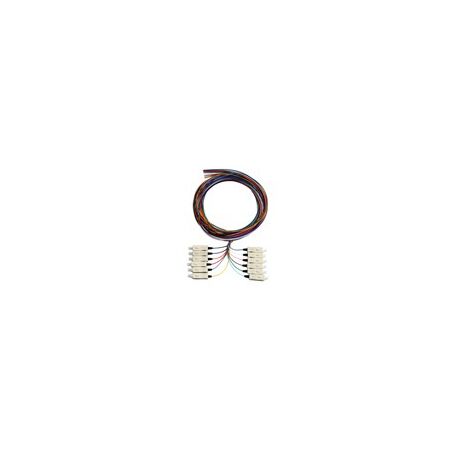

SC/APC Single Mode Pigtail | 12 Fiber Strands | 2M Length | Low Insertion Loss | by SERVEREDGE
The SC/APC Single Mode Pigtail is designed for high-density fiber optic connections, featuring 12 fiber strands for long-distance transmission. With a 2-meter length and low insertion loss of ≤0.3 dB, it's perfect for telecommunications networks and data centers. Built for optimal performance, this pigtail ensures minimal signal loss and is ideal for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SC/APC Single Mode Pigtail | 12 Fiber Strands | 2M Length | Low Insertion Loss | by SERVEREDGE
Brand: SERVEREDGE
SKU: SC/APC-PT-SM-02-12
Alternatively Known As: SC/APC Fiber Optic Pigtail, Single Mode Fiber Patch Cord, 12 Core Fiber Pigtail
Technical Specifications
- Connector Type: SC/APC
- Fiber Type: Single Mode
- Fiber Count: 12
- Cable Length: 2 meters
- Insertion Loss: ≤0.3 dB
- Return Loss: ≥60 dB
- Operating Temperature: -40°C to 85°C
- Dimensions (H x L x W): 10mm x 2000mm x 50mm
- Weight: 0.05 kg
Key Features
- Single mode fiber for long distance transmission
- SC/APC connector type for low back reflection
- 12 fiber strands for high-density connections
- 2 meter cable length for flexible installation
Professional Installation Requirements
- Installation by a qualified fiber optic technician is recommended to ensure optimal performance and minimal signal loss.
Applications
- Telecommunications networks
- Data centers and server rooms
- Fiber optic communication systems
- FTTx (Fiber to the x) installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports energy-efficient high-speed data transmission reducing network power consumption
- Durable materials reduce need for frequent replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Serveredge SC/APC Single Mode Pigtail 2M 12 Fibre is available now for immediate purchase. Ideal for telecommunications and data center fiber optic network installations.
