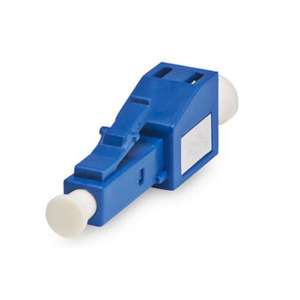

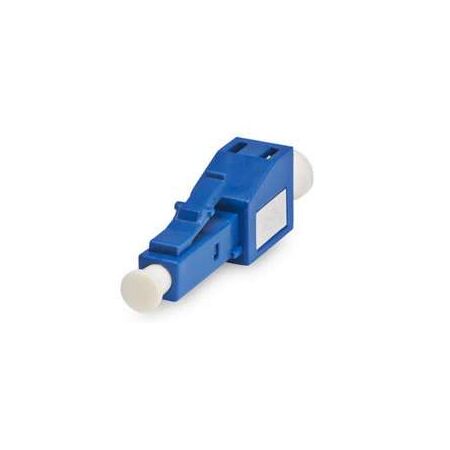

SC SingleLC Singlemode Male to Female Attenuator | 05dB Attenuation | High Return Loss | Wide Operating Temperature | by SERVEREDGE
The SC SingleLC Singlemode Male to Female Attenuator with 05dB attenuation is designed for optimal performance in telecommunications and fiber optic networks. It features a wide operating wavelength range from 1240nm to 1620nm, high return loss, and low polarization dependent loss, making it ideal for precise optical signal attenuation. Built for reliability, this attenuator supports dual 1310/1550nm applications and is perfect for data centers and optical testing setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SC SingleLC Singlemode Male to Female Attenuator | 05dB Attenuation | High Return Loss | Wide Operating Temperature | by SERVEREDGE
Brand: SERVEREDGE
SKU: FA-LC-SM-05
Alternatively Known As: Fiber Optic Attenuator, SC Singlemode Attenuator, Optical Attenuator 5dB
Technical Specifications
- Attenuation Value: 1dB to 30dB
- Operating Wavelength: 1240nm to 1620nm (Dual 1310/1550nm)
- Return Loss: UPC >55dB, APC >65dB
- Attenuation Accuracy: 1-7 dB ±0.5dB, 8-12 dB ±0.7dB, 13-17 dB ±1.0dB, 18-25 dB ±1.3dB
- Maximum Optical Input Power: 1000mW
- Polarization Dependent Loss: ≤0.1dB
- Operating Temperature Range: -40°C to 75°C
- Storage Temperature Range: -40°C to 85°C
- Humidity: 95% RH
- Dimensions (H x L x W): 10mm x 80mm x 60mm
- Weight: 0.1 kg
Key Features
- Attenuation range from 1dB to 30dB with high accuracy
- Operating wavelength range from 1240nm to 1620nm supporting dual 1310/1550nm
- High return loss: UPC >55dB, APC >65dB
- Low polarization dependent loss ≤0.1dB
- High maximum optical input power of 1000mW
- Wide operating temperature range from -40°C to 75°C
Professional Installation Requirements
- Installation by a qualified fiber optic technician is recommended to ensure optimal performance and safety.
Applications
- Telecommunications networks
- Fiber optic communication systems
- Optical signal attenuation in data centers
- Optical testing and measurement setups
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps optimize optical network performance reducing energy waste
- Durable design reduces need for frequent replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The SERVEREDGE SC SingleLC Singlemode Male to Female Attenuator 05dB is available for immediate purchase, ideal for telecommunications and fiber optic network applications.
