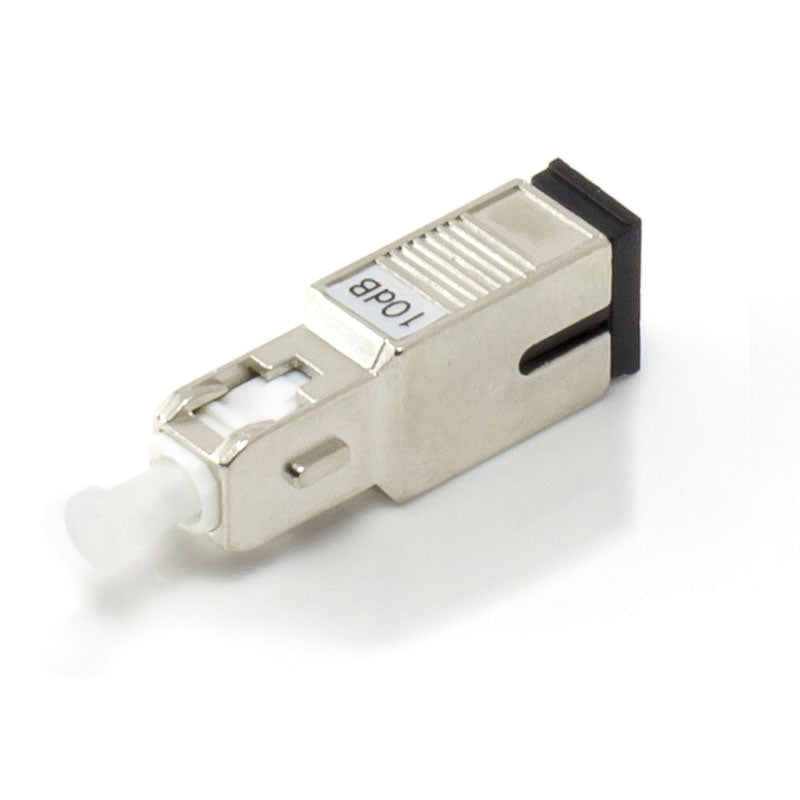

SC Singlemode Male to Female Attenuator | 10dB | High Return Loss & Wide Wavelength Range | by SERVEREDGE
The SC Singlemode Male to Female Attenuator with a 10dB attenuation value is perfect for telecommunications and fiber optic communication systems. Designed for optimal performance, it operates within a wavelength range of 1240 to 1620nm and boasts a high return loss of UPC >55dB and APC >65dB. Ideal for data centers and network infrastructure, this attenuator ensures reliable optical signal power management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SC Singlemode Male to Female Attenuator | 10dB | High Return Loss & Wide Wavelength Range | by SERVEREDGE
Brand: SERVEREDGE
SKU: FA-SC-SM-10
Alternatively Known As: Fiber Optic Attenuator SC Singlemode 10dB, Optical Attenuator SC Male to Female, SC Singlemode Fiber Attenuator 10dB
Technical Specifications
- Attenuation Value: 1dB to 30dB
- Operating Wavelength: 1240 to 1620nm (Dual 1310/1550nm)
- Return Loss: UPC >55dB, APC >65dB
- Attenuation Accuracy: 1-7 dB ±0.5dB, 8-12 dB ±0.7dB, 13-17 dB ±1.0dB, 18-25 dB ±1.3dB
- Maximum Optical Input Power: 1000mW
- Polarization Dependent Loss: ≤0.1dB
- Operating Temperature Range: -40 to 75°C
- Storage Temperature Range: -40 to 85°C
- Humidity: 95% RH
- Dimensions (H x L x W): 15mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Attenuation range from 1dB to 30dB
- Operating wavelength: 1240 to 1620nm (dual 1310/1550nm)
- High return loss: UPC >55dB, APC >65dB
- Low polarization dependent loss ≤0.1dB
- High maximum optical input power of 1000mW
- Wide operating temperature range from -40 to 75°C
- High humidity tolerance up to 95% RH
Professional Installation Requirements
- Installation by a qualified fiber optic technician is recommended to ensure optimal performance and safety.
Applications
- Telecommunications networks
- Fiber optic communication systems
- Optical signal power management
- Data centers and network infrastructure
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps optimize optical network performance reducing energy waste
- Supports long-term network reliability minimizing electronic waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Serveredge SC Singlemode Male to Female Attenuator 10dB is available now for immediate purchase. Ideal for telecommunications and data center optical network applications.
