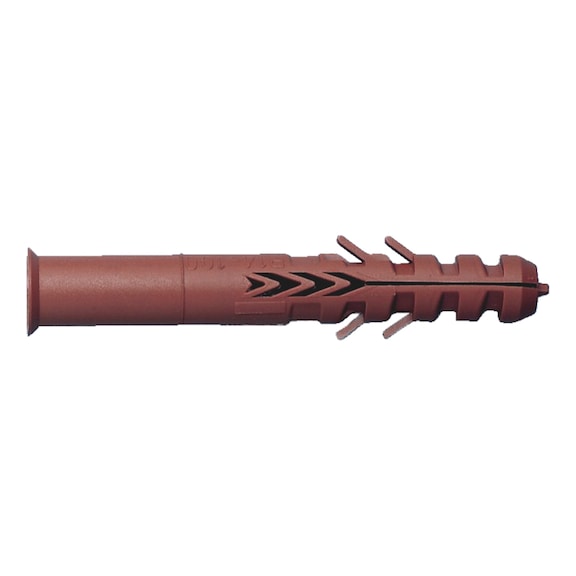

Scaffolding Anchor System | 14mm Diameter | High-Quality Polyamide | @Pack of 50 | by Wurth
The Scaffolding Anchor System features a robust 14mm diameter and is crafted from high-quality polyamide, ensuring maximum load capacity for secure fastening. Ideal for construction sites, these single-use anchors provide reliable support for free-standing scaffolding, making them essential for safe and efficient building practices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Scaffolding Anchor System | 14mm Diameter | High-Quality Polyamide | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912014070
Alternatively Known As: Scaffold anchor bolts, Nylon scaffold anchors, Polyamide scaffold fasteners, Scaffolding fixing anchors
Technical Specifications
- Anchor diameter: 14 mm
- Anchor length: 70 mm
- Embedding depth (nominal): 70 mm
- Nominal drill-bit diameter: 14 mm
- Drill hole depth: 80 mm
- Material: High-quality polyamide (nylon)
- Single-use anchors for maximum load capacity
- Dimensions (H x L x W): 70mm x 70mm x 14mm
- Weight: 1.2 kg
Key Features
- 14 mm diameter scaffold anchors designed for fastening free-standing scaffolding
- Anchor sleeve and eyelet screw are perfectly coordinated to guarantee maximum safety
- Anchors made of high-quality polyamide (nylon)
- Polyamide anchors are single-use to ensure maximum load capacity
- Eyelet screw must protrude from the anchor front by at least 1x the screw diameter for maximum load capacity
- Suitable for drilling hollow block brick without impact mechanism
- Use carbide multi-purpose drill bits for better drill holes and higher extraction values in perforated brick
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer instructions to ensure correct anchoring and maximum load capacity.
Applications
- Fastening free-standing scaffolding
- Construction sites requiring secure scaffold anchoring
- Use with eyelet screw GS 12 for maximum safety
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Use of durable polyamide material reduces frequent replacements and waste
- Single-use anchors ensure safety and reduce risk of failure, promoting sustainable construction practices
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Scaffolding Anchor System 50 PCS is available now for immediate purchase. Ideal for construction and scaffolding applications requiring secure and safe fastening.
