Trade Discount 20%

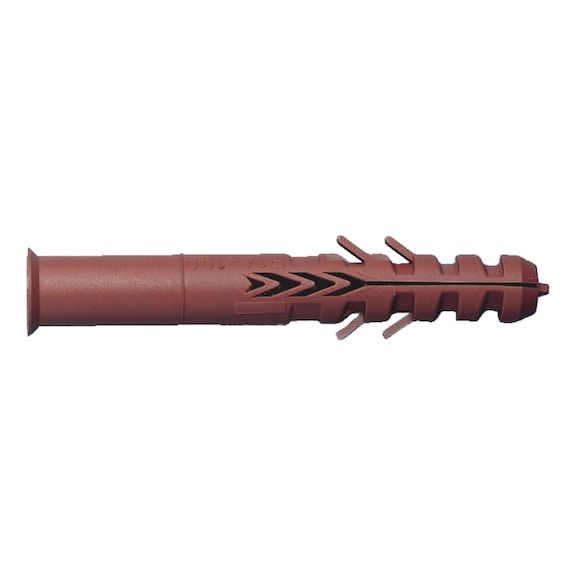

Scaffolding Anchor System | 14 mm Diameter | High-Quality Polyamide | @Pack of 50 | by Wurth
The Scaffolding Anchor System features a robust 14 mm diameter and is crafted from high-quality polyamide, ensuring maximum load capacity and safety. Ideal for fastening free-standing scaffolding, these single-use anchors are designed for professional installation, making them perfect for construction projects that require reliable and secure fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Scaffolding Anchor System | 14 mm Diameter | High-Quality Polyamide | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912014100
Alternatively Known As: Scaffold anchors, Nylon scaffold anchors, Polyamide scaffolding anchors, Eyelet screw anchors
Technical Specifications
- Anchor diameter: 14 mm
- Anchor length: 100 mm
- Embedding depth (nominal): 70 mm
- Nominal drill-bit diameter: 14 mm
- Drill hole depth: 80 mm
- Material: High-quality polyamide (nylon)
- Dimensions (H x L x W): 100mm x 14mm x 14mm
- Weight: 1.2 kg
Key Features
- 14 mm diameter scaffold anchors
- Anchor sleeve and eyelet screw perfectly coordinated for maximum safety
- Made of high-quality polyamide (nylon)
- Polyamide anchors are single-use to ensure maximum load capacity
- Eyelet screw must protrude at least 1x screw diameter from anchor front for max load
- Drill hollow block brick without impact mechanism using carbide multi-purpose drill bits
Professional Installation Requirements
- Installation should be performed by trained professionals following safety guidelines and ensuring the eyelet screw protrudes correctly for maximum load capacity.
Applications
- Fastening free-standing scaffolding
- Use with eyelet screw GS 12 for maximum safety
- Suitable for hollow block and perforated brick drilling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Use of durable polyamide material reduces frequent replacements
- Single-use anchors ensure safety and reduce risk of failure
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Scaffolding Anchor System 50 PCS is available now for immediate purchase. Ideal for construction and scaffolding applications requiring secure fastening.
