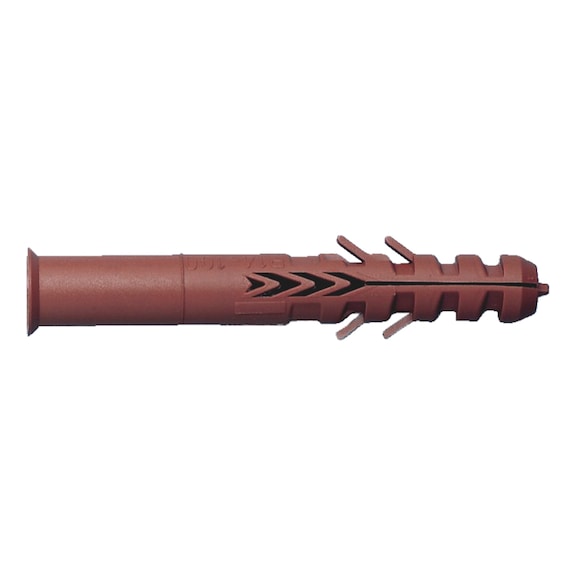

Scaffolding Anchor System | 50 PCS | High-Quality Polyamide | Maximum Safety | by Wurth
The Scaffolding Anchor System is designed for maximum safety with high-quality polyamide construction, making it ideal for fastening free-standing scaffolding. Each anchor is single-use to ensure optimal load capacity, perfect for construction and building site applications. Compliant with AS/NZS 1170 standards, these anchors provide reliable performance in hollow block and perforated brick without the need for an impact mechanism.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Scaffolding Anchor System | 50 PCS | High-Quality Polyamide | Maximum Safety | by Wurth
Brand: Wurth
SKU: 912014135
Alternatively Known As: Scaffold anchors, Nylon scaffold anchors, Polyamide anchor sleeves, Eyelet screw anchors, Construction anchors
Technical Specifications
- Anchor diameter: 14 mm
- Anchor length: 135 mm
- Embedding depth (nominal): 70 mm
- Nominal drill-bit diameter: 14 mm
- Drill hole depth: 80 mm
- Material: High-quality polyamide (nylon)
- Dimensions (H x L x W): 135mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Anchor sleeve and eyelet screw are perfectly coordinated to guarantee maximum safety
- Anchor made of high-quality polyamide (nylon)
- Polyamide anchors are single-use to ensure maximum load capacity
- Eyelet screw must protrude from the anchor front by at least 1x the screw diameter for maximum load capacity
- Suitable for drilling hollow block brick without impact mechanism
- Use of carbide multi-purpose drill bits recommended for better drill holes and higher extraction values
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with scaffold anchoring and safety standards to ensure proper fastening and load capacity.
Applications
- Fastening free-standing scaffolding
- Use in hollow block brick and perforated brick without impact mechanism
- Construction and building site anchoring
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Use of durable polyamide material reduces frequent replacements
- Single-use anchors ensure safety and reduce risk of failure, preventing accidents and material waste
Warranty Information
Standard manufacturer warranty applies. Polyamide anchors are single-use and not reusable.
Available Now
The Wurth Scaffolding Anchor System 50 PCS is available now for immediate purchase. Ideal for construction and scaffolding applications requiring secure and reliable anchoring.
