Scalable Hybrid Intrusion Panel | Onboard Ethernet & Wireless Support | 176 Max Inputs | by Dicker Data

BRAND: Dicker Data
SKU: NXX-8-WZ-AU
$575.80
+ −
30 Days Return Delivery Options
The Scalable Hybrid Intrusion Panel is designed for robust security, featuring onboard Ethernet and wireless support, accommodating up to 176 max inputs. Ideal for residential and commercial security systems, it offers flexibility with zone-doubling support and a built-in web server for easy control and programming. Perfect for both new installations and retrofitting existing systems.

Product Name/Title: Scalable Hybrid Intrusion Panel | Onboard Ethernet & Wireless Support | 176 Max Inputs | by Dicker Data

Brand: Dicker Data

SKU: NXX-8-WZ-AU

Alternatively Known As: Aritech Reliance XR Pro Panel, UltraSync XR Intrusion Panel, Reliance XR Security Control Panel

Technical Specifications
  • Max system inputs: 176
  • Onboard inputs: 8 (16 zone doubled)
  • Onboard outputs: 4 (Output collector type; Output 1 & 2 preprogrammed for Strobe and Piezo)
  • Dedicated external siren terminal: Yes
  • Wireless receiver: Yes - Onboard
  • Max wireless inputs: 176 (Inclusive of max system inputs)
  • Wireless technology: ITI (Legacy) + 80Plus
  • Users supported: 256
  • Dedicated smoke terminal: Yes
  • Ethernet: Yes - Onboard
  • App support: UltraSync+ for user operation and installer programming
  • 4G module: Optional NXX-4G-WFSIM-AU (requires control room registration)
  • Reliance XR bus: 4 Wire RS485 (Recommended cables: Belden 7201A, 3107A, 9842 or equivalent)
  • NX bus (legacy) compatibility: Yes, limited functionality

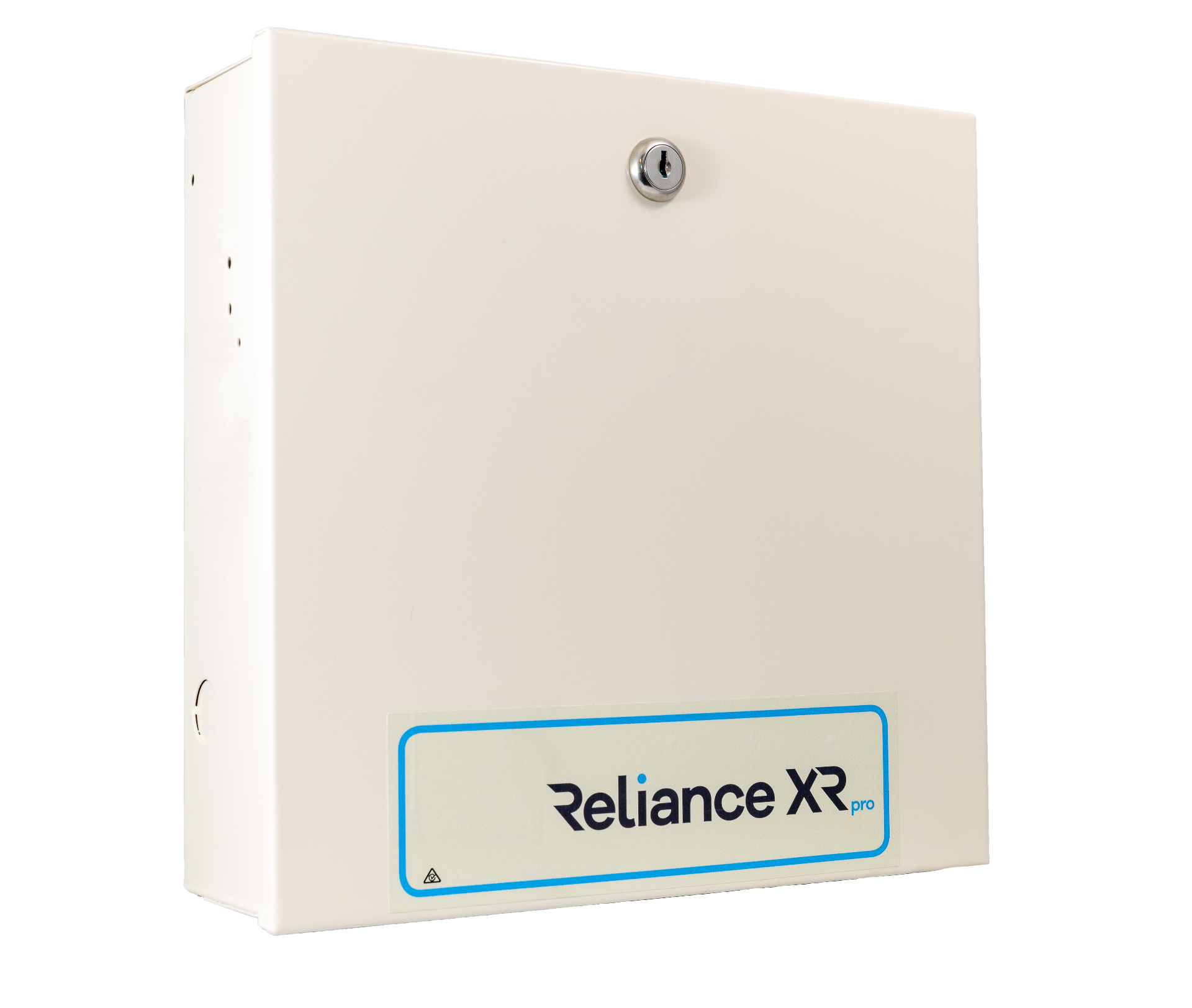

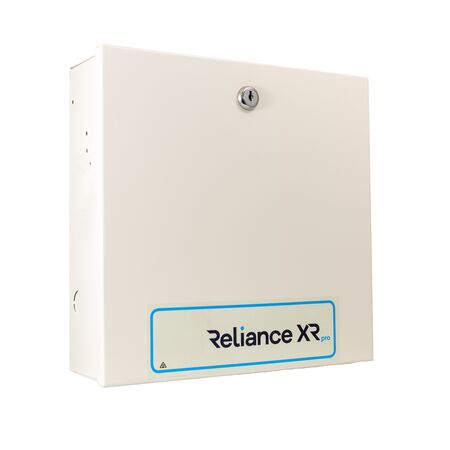

  • Enclosure: NX-003 (compatible with Reliance NX-12/16 or Reliance R12/128 enclosures)
  • Dimensions (H x L x W): 300mm x 80mm x 350mm
  • Weight: 2.5 kg
Key Features
  • Scalable and flexible hybrid intrusion panel
  • Supports both 4-wire XR bus and 3-wire legacy NX or Reliance bus
  • Onboard Ethernet port for secure UltraSync Cloud connection
  • Optional 4G & WiFi router plug-on module for cellular backup or primary connectivity
  • Built-in web server for control, user administration, and programming
  • Auto enroll feature for XR series expanders
  • Zone-doubling support
  • Onboard legacy & LoNa 433 MHz RF receiver for 63 bit and 80plus accessories
  • Firmware upgradeable in the field
Professional Installation Requirements
  • Professional installation by a qualified security system installer or licensed electrician is required to ensure proper setup, configuration, and compliance with safety standards.
Applications
  • Residential security systems
  • Small to large commercial security installations
  • Retrofit upgrades for existing NX or Reliance alarm panels
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Supports remote connectivity reducing the need for physical service visits
  • Firmware upgradeable to extend product life and reduce electronic waste
Warranty Information

2 years warranty from the date of purchase covering manufacturing defects.

Available Now

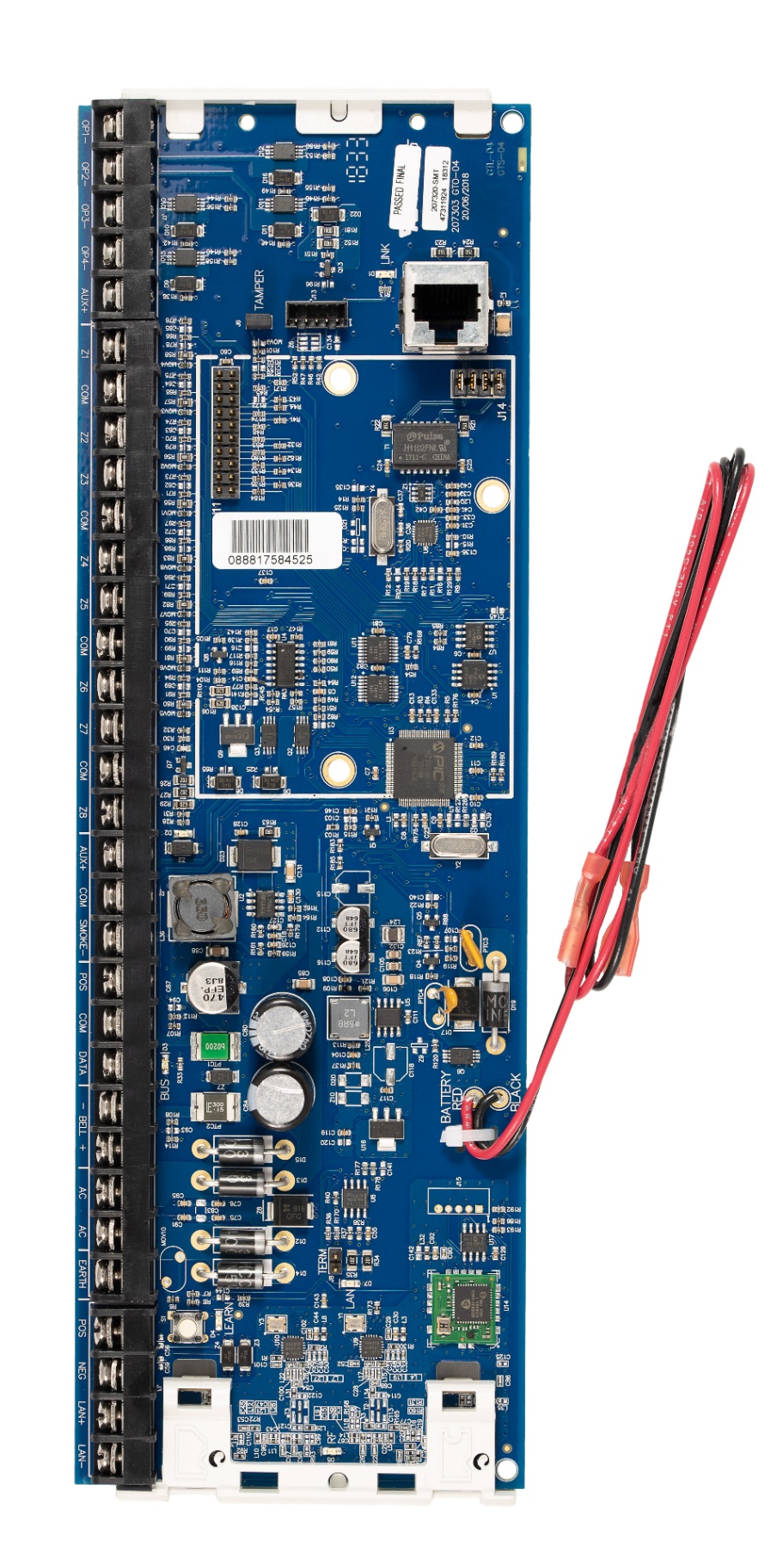

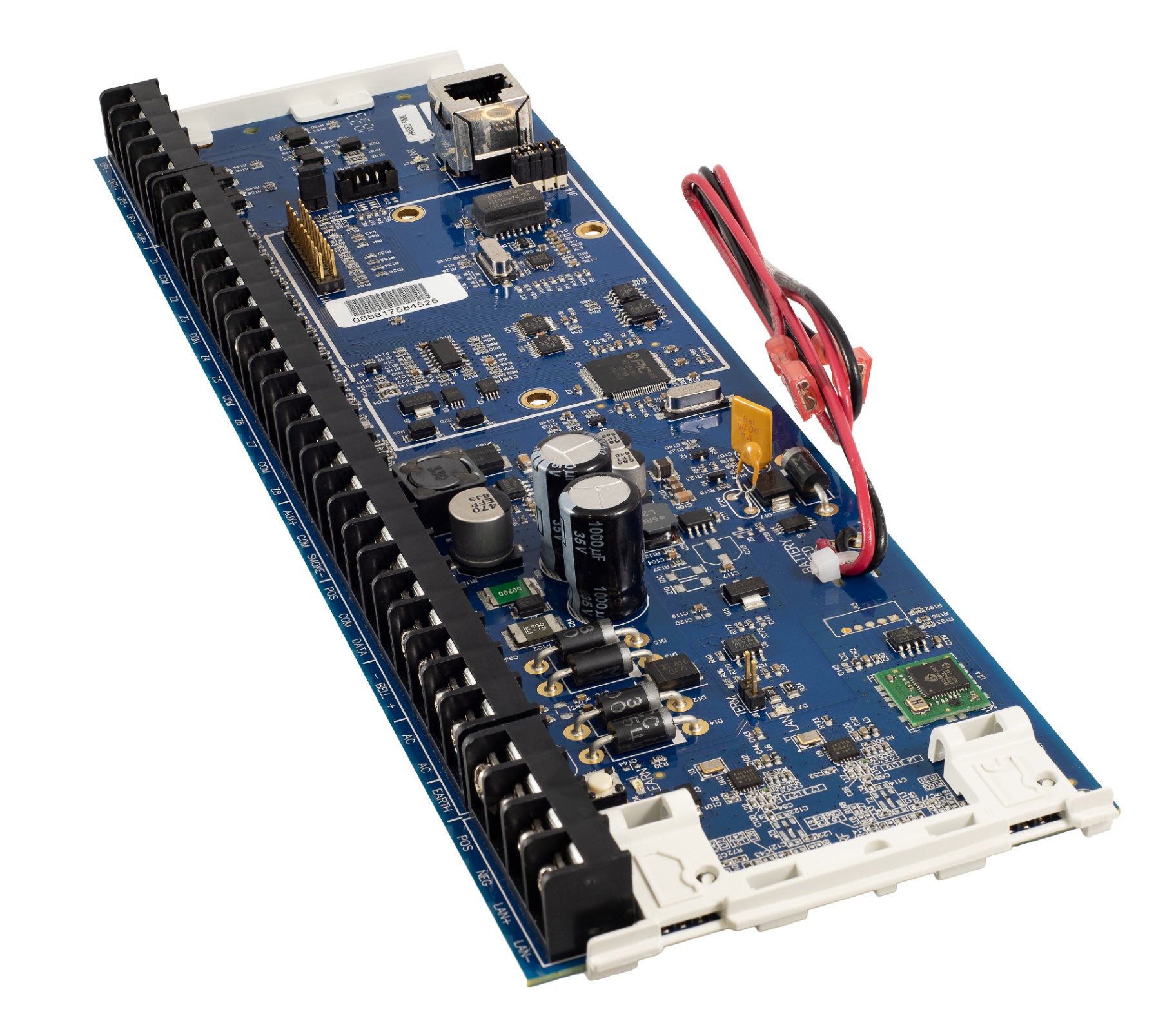

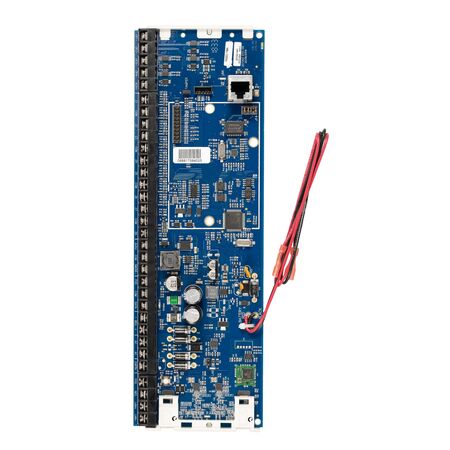

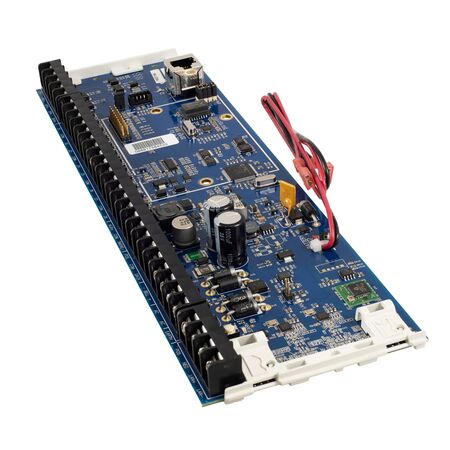

The RELIANCE S110618 XRPRO PCB with Metal Housing is available for immediate purchase, ideal for upgrading or installing scalable intrusion alarm systems in residential and commercial properties.
