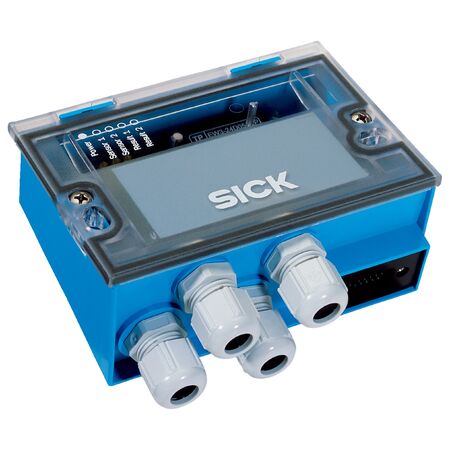

Scanner Connection Module CDB405-001 | IP65 Rated | 6 LED Indicators | by SICK
The Scanner Connection Module CDB405-001 is designed for seamless integration with mobile handheld scanners like the ICR80x. With robust IP65-rated polycarbonate housing and support for multiple serial interfaces (RS-232, RS-422, RS-485), it ensures reliable connectivity in industrial automation settings. Low power consumption and 6 LED optical indicators enhance its functionality, making it an ideal choice for efficient scanning systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Scanner Connection Module CDB405-001 | IP65 Rated | 6 LED Indicators | by SICK
Brand: SICK
SKU: 1027093
Alternatively Known As: Scanner Connection Module, Handheld Scanner Interface Module, SICK CDB405-001 Interface
Technical Specifications
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 4 W
- Housing material: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g
- Scanner connection: 15-pin D-Sub HD female connector
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Serial (RS-232, RS-422, RS-485) depending on sensor connected
- Optical indicators: 6 LEDs
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: ≤ 90%, non-condensing
- Dimensions (H x L x W): 54mm x 124mm x 113mm
- Weight: 0.25 kg
Key Features
- Small connection module designed for 5-V hand-held scanners and ICR80x
- Supports serial interfaces RS-232, RS-422, RS-485 depending on sensor connected
- 6 LED optical indicators for status display
- Robust polycarbonate housing with IP65 enclosure rating
- Supply voltage range from 18 V DC to 30 V DC
- Low power consumption of 4 W
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Connection module for mobile handheld scanners ICR80x
- Industrial automation and scanning systems requiring reliable scanner connectivity
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CDB405-001 Small Connection Module is available for immediate purchase, ideal for integration with mobile handheld scanners in industrial and automation environments.
