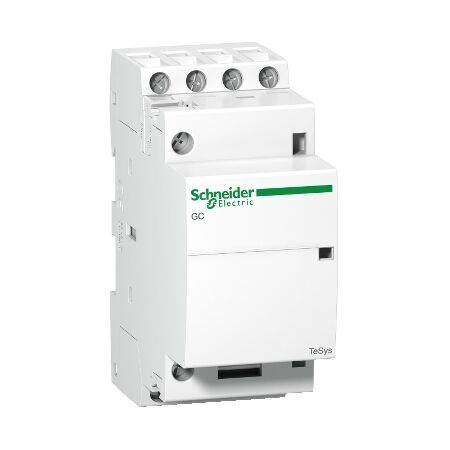

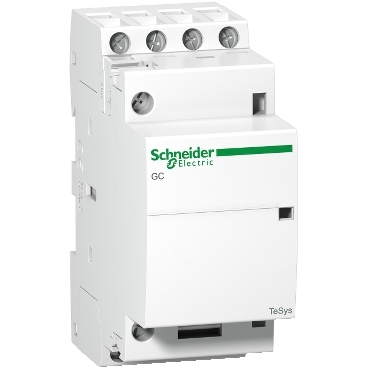

SCHN Contactor 25A 4NC 240VAC | Compact DIN Rail Mount | Durable Construction | Low Power Consumption | @Pack of 1 | by Clipsal
The SCHN Contactor 25A 4NC 240VAC is designed for robust switching applications, featuring 25A rated current and 4 normally closed contacts for secure circuit isolation. Ideal for lighting control, HVAC systems, and motor control circuits, this compact DIN rail mountable contactor ensures reliable performance and energy efficiency in commercial and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SCHN Contactor 25A 4NC 240VAC | Compact DIN Rail Mount | Durable Construction | Low Power Consumption | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHGC2504M5
Alternatively Known As: Clipsal 25A Contactor, 4NC Contactor, 240V AC Contactor, SCHGC2504M5, Industrial Power Contactor, DIN Rail Contactor
Technical Specifications
- Rated operational current: 25A
- Contact configuration: 4 Normally Closed (NC)
- Coil voltage: 240VAC 50/60Hz
- Mounting: DIN rail
- Utilization category: AC-1, AC-7a
- Electrical endurance: 100,000 cycles
- Mechanical endurance: 1,000,000 cycles
- Ambient temperature: -20°C to +60°C
- Degree of protection: IP20
- Dimensions (H x L x W): 85mm x 60mm x 54mm
- Weight: 0.35 kg
Key Features
- 25A rated current for robust switching applications
- 4 Normally Closed (NC) contacts for secure circuit isolation
- 240VAC coil voltage for standard control circuits
- Compact DIN rail mountable design
- Reliable and durable construction for long service life
- Low power consumption coil
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Lighting control in commercial and industrial buildings
- HVAC systems
- Motor control circuits
- Automation panels
- Switching of resistive and inductive loads
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enables efficient energy management by automating load switching
- Reduces unnecessary power consumption in building automation systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHN Contactor 25A 4NC 240VAC (SCHGC2504M5) is available for immediate purchase. Ideal for commercial and industrial power switching applications.
