G'day! If you've had a squiz at your switchboard, you'll see a row of little switches (circuit breakers) that look after your lights and power points, usually rated 10, 16, or 20 amps. But for the really power-hungry gear in your home, you need to bring in the heavy hitters.

That's where you'll find the 40a RCBO. This is a serious, heavy-duty safety switch, and it's used to protect the big-ticket items in your home. Let's get the lowdown on what it is and why it's so fair dinkum important.

First Up: What is an RCBO?

Before we get to the "40a" part, you need to know what an RCBO is. It's a modern, all-in-one safety device. The name stands for Residual Current Breaker with Overload protection.

In plain English, it's a "two-for-one" deal that does two critical jobs:

1. It's a Circuit Breaker: It protects your home's wiring from overloads (too many appliances) and short circuits, which stops your cables from overheating and starting a fire.
2. It's a Safety Switch (RCD): It protects you and your family from fatal electric shock by detecting tiny "leaks" of electricity and tripping in a fraction of a second.

It's the gold standard for modern electrical safety in Australia.

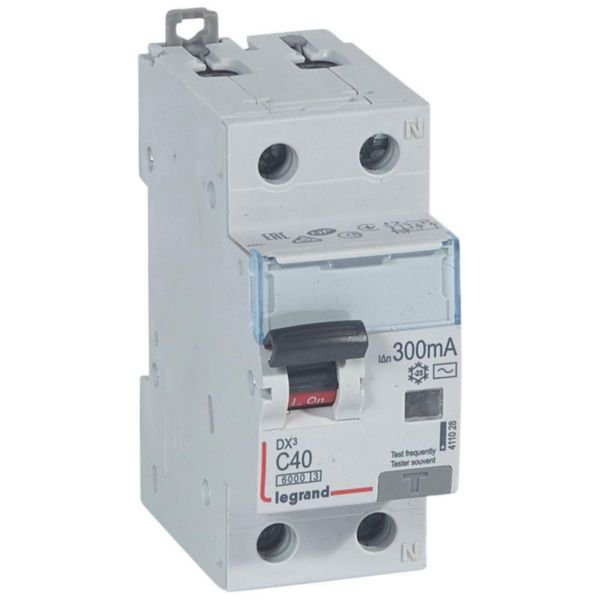

So, Why 40 Amps? The Heavy-Duty Jobs

Righto, so the "40a" on a 40a RCBO stands for 40 Amps. This is the circuit breaker part of its job. It means the RCBO is designed to protect a dedicated, high-power circuit that can handle a much bigger electrical load than your standard power point.

You won't find a 40a RCBO running your bedroom lights, mate. It's strictly for the real power-hungry gear. The most common uses in an Aussie home are:

• Large Electric Cooktops: Big, modern induction or ceramic cooktops can draw a huge amount of power, especially when you've got a few pans on the go. They need their own dedicated circuit, and a 40A rating is very common for this.
• Big Instantaneous Hot Water Systems: Some of the larger electric 'on-demand' hot water systems that heat water instantly are incredibly power-hungry and require a dedicated circuit of this size.
• Feeding a Sub-Board: This is another big one. A 40a RCBO is often used in your main switchboard to protect the thick, heavy-duty cable that runs out to a "sub-board" in your shed, workshop, or granny flat.

The Critical Safety Warning: You Can't Just 'Upgrade'

This is the most important part of the article, so listen up. You can't just have a 40a RCBO whacked in to replace a 20A breaker because your power points keep tripping.

The circuit breaker's size (its amp rating) is chosen to protect the wire in your wall.

A 40A breaker must be connected to a thick, heavy-duty electrical cable (like 6mm² or 10mm² wiring) that can safely handle that 40 amps of current. If you put a 40A breaker on a standard power point circuit (which uses thinner 2.5mm² wire), you're creating a massive fire risk. In a fault, the wire would overheat and could melt long before the oversized 40A breaker even thinks about tripping.

A Job for a Licensed Professional Only: No Exceptions

Let's be dead clear. Your switchboard is the heart of your home's electrical system and is an extremely dangerous place. Installing, replacing, or doing any work on a 40a RCBO is absolutely not a DIY job.

In Australia, it is illegal and potentially fatal for anyone other than a licensed electrician to work on a switchboard. A qualified professional has the training, testing gear, and legal authority to work on your board, ensure the RCBO is the correct size for your home's wiring (as per AS/NZS 3000), and make sure your family is protected. Don't risk it, mate.

A Professional Job Needs Pro Gear

A safe, high-power circuit is the foundation of a modern, functioning home. For professional installers and licensed electricians who build and upgrade switchboards, sourcing reliable, compliant gear is paramount. As one of Australia's most comprehensive electrical wholesaler and suppliers, Schnap Electric Products stocks a complete range of trade-quality switchboard gear. This includes high-quality, certified 40a RCBO units from the world's most trusted brands, alongside all the circuit breakers, safety switches, and heavy-duty cabling accessories that a qualified professional needs to get the job done right. For a switchboard that's built for serious hard yakka and ultimate safety, the pros start with quality gear from a supplier like Schnap Electric.
