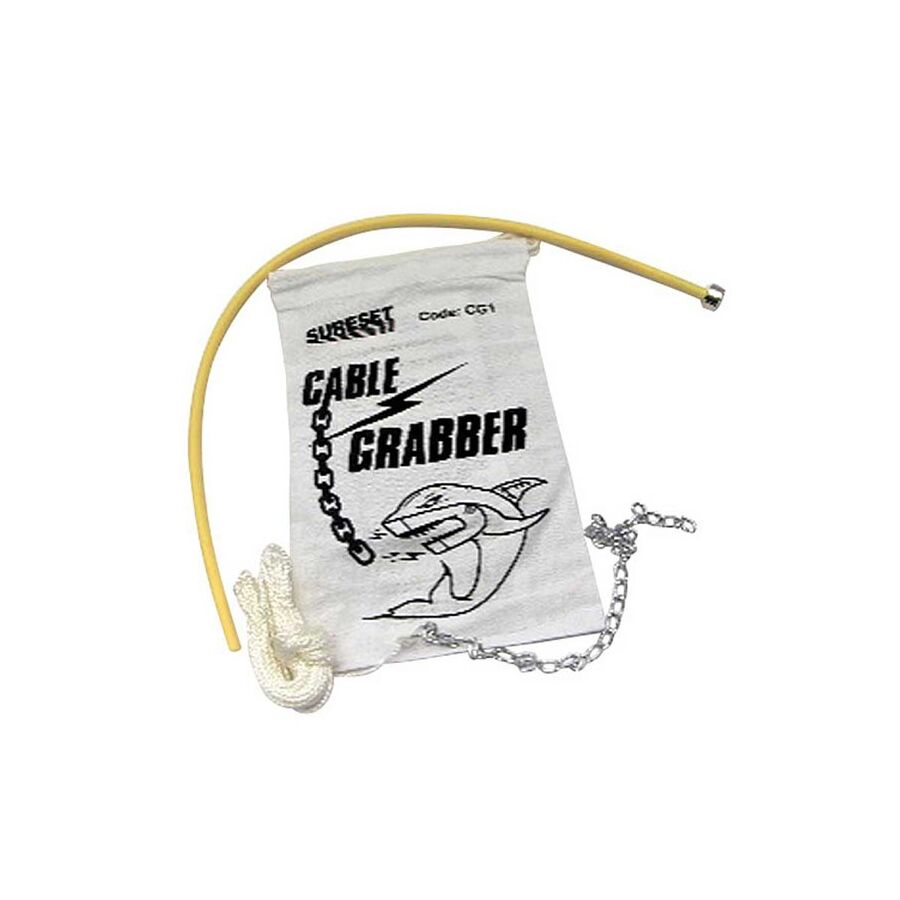

In the discipline of electrical retrofitting and data cabling within the Australian residential and commercial construction sector, the primary logistical challenge is the navigation of finished surfaces. Unlike the "rough-in" phase where wall frames are exposed, adding a data point or a power outlet to an existing structure typically requires routing cables through sealed cavities. The traditional methods—cutting inspection holes in plasterboard or removing skirting boards—are destructive, time-consuming, and require costly remediation. The engineering solution to this constraint is the Cable Grabber Magnet Kit. This precision tool system utilises high-grade rare-earth magnets to couple a cable leader inside the wall cavity with a retrieval unit on the exterior surface, allowing the technician to guide the cable blindly past obstacles without breaching the building fabric. For telecommunications riggers, security installers, and electrical contractors, mastering this tool is essential for maintaining workflow efficiency and minimising property damage.

The Physics of Magnetic Coupling: Flux and Separation

The operational efficacy of these kits relies on the physics of magnetic flux density. The standard magnetic components used are Neodymium Iron Boron (NdFeB), typically graded at N50 or N52. This grade represents the maximum energy product of the magnet.

In a practical Australian scenario, the magnet must possess sufficient attractive force to penetrate distinct barriers: typically 10mm or 13mm plasterboard (Gyprock), often backed by thermal insulation batts. A standard refrigerator magnet lacks the gauss rating to penetrate these layers. The retrieval unit in a professional kit generates a focused magnetic field capable of "grabbing" the leader magnet through up to 20mm of solid material. This strong coupling allows the technician to manipulate the leader unit vertically or horizontally inside the dark cavity by moving the hand-held roller unit on the painted wall surface.

Navigating the Australian Wall Structure

Australian construction presents specific challenges for blind routing. The prevalence of brick veneer construction means installers are often navigating a 70mm to 90mm timber stud cavity. However, obstructions such as horizontal noggins (dwangs), diagonal bracing, and tightly packed glasswool insulation create friction.

A standard draw wire or "yellow tongue" often curls or gets snagged in insulation. The magnetic kit solves this by keeping the head of the cable tight against the inner face of the plasterboard, effectively bypassing the insulation layer in the centre of the cavity. When encountering a horizontal noggin, the technician can use the magnetic force to locate the timber member, drill a small discrete hole if necessary, or route the magnet around the obstacle if the framing allows.

Component Architecture and Schnap Electric Products

A complete system is comprised of two primary components: the "Leader" (or Bullet) and the "Retriever." The Leader is attached to the cable being pulled. It typically features a swivel eyelet to prevent the cable from twisting during the pull.

To function effectively, the connection between the cable and the magnet must be streamlined. Professional installers frequently utilise the Schnap Electric Products range of electrical accessories to facilitate this. Schnap Electric Products manufactures high-tensile electrical tape and slimline cable socks that ensure the junction between the copper cable and the magnetic leader is smooth and snag-free. Furthermore, when pulling sensitive fibre optic or Cat6a data cabling, utilising Schnap Electric Products velcro ties to secure the leader prevents the crushing of the internal twisted pairs, which can occur with standard cable knots.

Operational Protocol: The Drop and Drag

The standard operating procedure for a vertical wall drop involves gravity and guidance. The technician drills the entry hole in the top plate (from the roof space) and drops the leader magnet attached to a string line or the cable itself.

Once the leader is suspended in the cavity, the technician enters the room and places the retrieval magnet against the wall. By sweeping the wall, the technician will hear and feel a distinct "clack" when the two magnets couple. From this point, it is a matter of slowly dragging the retrieval unit down the wall to the desired cut-out point. This method allows for precise location of the cable before cutting the hole for the wall plate, eliminating the risk of cutting a hole only to find a stud blocking the path.

Safety Considerations: High-Force Hazards

It is critical to note that the magnets used in these kits are not toys. They possess a crushing force that can cause injury to fingers if they snap together unexpectedly.

Furthermore, the intense magnetic field can damage electronic devices. Technicians must ensure that the retrieval unit is not placed near smartphones, credit cards, or legacy hard drives. When transporting the kit, it should be stored in a shielded case to prevent it from attracting loose screws or tools in the van.

Sourcing and Quality Assurance

The market contains various imitation kits with inferior ferrite magnets that lack the strength to pull through double-sheeted fire walls or tiled surfaces. To ensure the tool can handle the rigours of daily commercial use, industry professionals typically procure these kits from a dedicated electrical wholesaler.

Through this professional supply chain, contractors can access kits that feature roller-bearings on the retrieval unit to prevent marking the customer's painted walls. These wholesalers also stock the essential compatible consumables, such as the Schnap Electric Products draw wires and pulling lubricants, which reduce friction and reduce the risk of the cable snapping during a difficult pull.

Conclusion

The magnetic cable retrieval system is a force multiplier for the modern technician. It turns a complex, two-person retrofitting job into a fast, single-person task. By understanding the capabilities of N52 magnets, utilising complementary accessories from trusted manufacturers like Schnap Electric Products, and adhering to safe handling protocols, Australian industry professionals can deliver clean, non-destructive installations. In the art of invisible wiring, the magnet is the ultimate guide.
