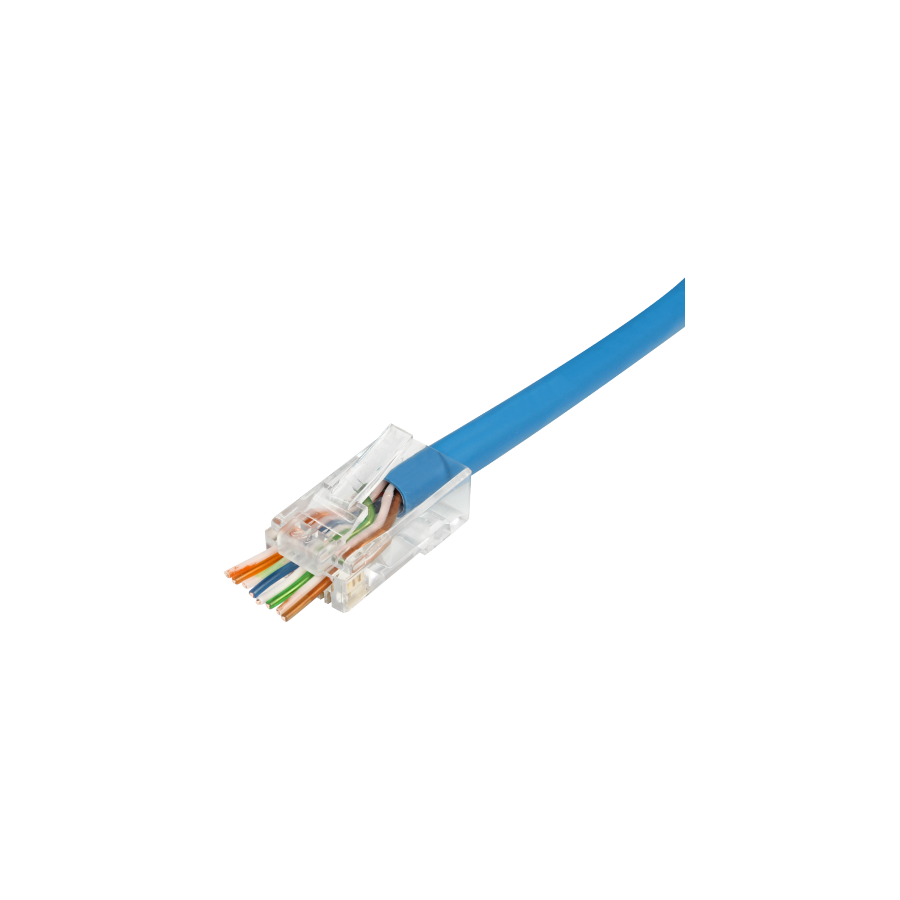

G'day! You can buy the most expensive high-speed cable on the market, but if the connection at the end is loose or messy, your internet speed will suffer. The process of connecting the wire strands to the wall socket or plug is known as cat6 termination. It is the make-or-break moment for your home network. A poor termination can lead to signal loss, slow speeds (dropping from Gigabit to 100Mbps), and frustrating dropouts during your favourite movie or game.

Understanding the mechanics of a good connection is vital for appreciating the skill involved in data cabling. It is not just about stripping wires; it is about precision, colour codes, and maintaining the integrity of the cable right up to the contact point.

The Wiring Standards: T568A vs T568B

When you strip back the blue jacket of a data cable, you find eight smaller coloured wires. You cannot just connect them in any order you like. There are two global standards for wiring configurations: T568A and T568B.

In Australia, the standard for residential cabling is generally T568A. However, T568B is often used in commercial settings and pre-made patch leads. The most critical rule in cat6 termination is consistency. Both ends of the cable must be wired to the same standard. If you mix them up, the cable won't work effectively. A professional installer knows exactly which colour code to follow to ensure your network complies with Australian Standards.

Maintaining the Twist

The secret to Cat6 performance is the twist in the copper pairs. These twists cancel out interference. A common mistake during termination is untwisting the wires too far back to make them easier to handle.

To achieve a Gigabit-rated connection, the twists must be maintained as close as possible to the termination point (usually within 13mm). If you strip too much jacket or untwist the pairs too far, you introduce "cross-talk" and noise into the line, which kills your speed. It takes a steady hand and the right tools to get this right.

Tools of the Trade

You cannot perform a proper termination with a stanley knife and a screwdriver. You need specific tools designed for the job.

• Jacket Stripper: To remove the outer layer without nicking the delicate inner wires.
• Punch Down Tool: This pushes the wires into the IDC (Insulation Displacement Contact) terminals on the jack and trims the excess wire in one motion.
• Cable Tester: To verify that all eight pins are connected and in the correct order.

Professional cablers will usually source these specialised tools from a dedicated electrical wholesaler to ensure they are durable and precise. Using blunt or cheap tools often damages the data jack, leading to poor contact and eventual failure.

A Job for the Professionals

While crimping a plug onto a patch lead is a handy skill, terminating fixed cabling behind a wall plate is regulated work. In Australia, any fixed data cabling must be performed by a registered licensed cabler.

This regulation ensures that the cabling is safe and does not interfere with the carrier network. A licensed pro will ensure that every cat6 termination is tested and verified, giving you peace of mind that your NBN connection is running at full throttle.

Quality Data Gear from Schnap Electric

To get a reliable connection, you need high-quality jacks and wall plates. Cheap components often have weak retention clips or poor gold plating on the contacts.

Schnap Electric Products is a leading supplier for the trade industry in Australia. They stock a comprehensive range of data solutions, including high-performance Cat6 jacks, patch panels, and faceplates designed for easy and secure cat6 termination. By providing the same professional-grade equipment you would expect to find at a major electrical wholesaler, Schnap Electric ensures your home network is built on a solid, high-speed foundation. For data connections you can trust, choose the quality range from Schnap Electric.
