G'day! There is nothing more frustrating than setting up a new home office, plugging in your computer, and getting absolutely no internet connection. You reset the modem, check the settings, and call the service provider, but the problem persists. More often than not, the issue isn't the NBN connection coming into your house, but a simple fault in the cabling inside. This is where a data cable tester becomes the most valuable tool in your kit.

Whether you are making your own patch leads or troubleshooting a drop-out in your smart TV connection, this simple device saves you hours of guessing. It gives you an immediate answer as to whether your cable is transmitting data correctly or if it belongs in the bin.

What is a Data Cable Tester?

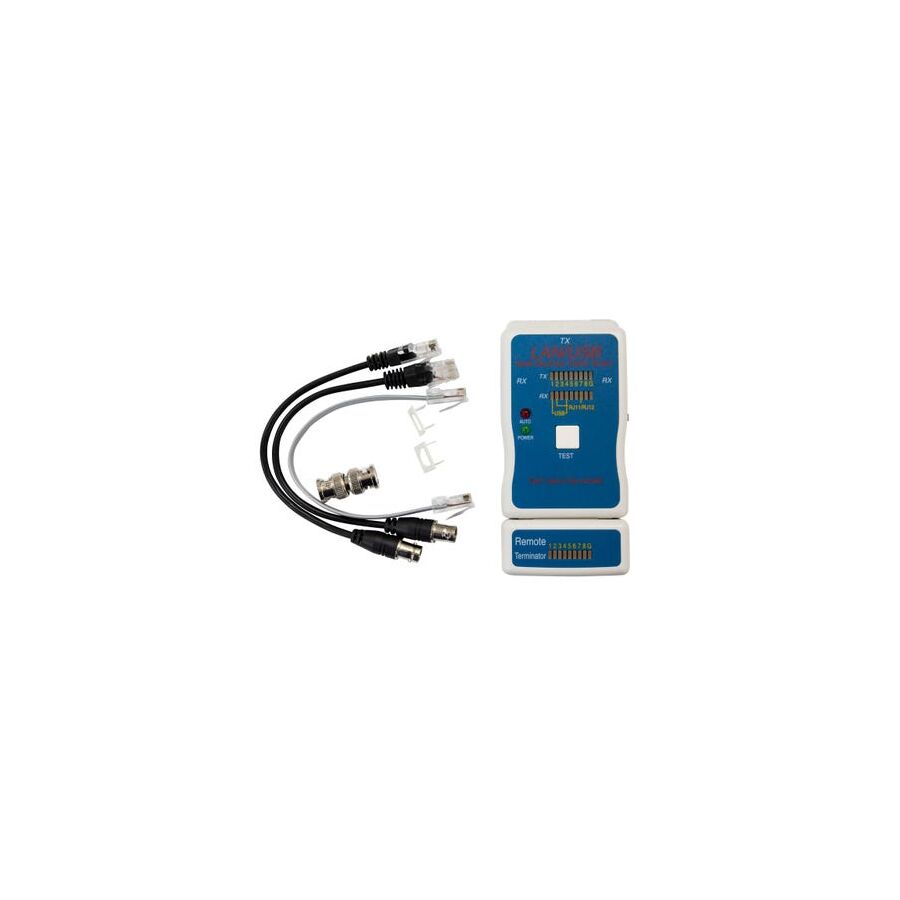

A data cable tester is a handheld electronic device designed to verify the electrical connections in a signal cable. For most Aussie homes and small businesses, these are used for RJ45 (Ethernet) cables.

The tool typically comes in two parts: a master unit and a detachable remote. By plugging one end of the cable into the master and the other into the remote, the device sends a signal down each of the eight internal wires. It checks for continuity, ensuring that pin 1 connects to pin 1, pin 2 to pin 2, and so on. It instantly identifies common faults like open circuits (broken wires), short circuits (wires touching), or crossed wires (wires connected in the wrong order).

Why You Need One

You cannot see a broken wire inside the plastic jacket. A cable might look brand new on the outside but have a snapped copper core on the inside. Without a data cable tester, you are flying blind.

• Verify Patch Leads: Before you run a cable behind a desk, test it to make sure it works.
• Troubleshoot Lag: If your gaming console is lagging, a tester can tell you if the cable is damaged and dropping data packets.
• Check Terminations: If you have crimped your own plugs, this tool confirms you have pushed the wires in fully and in the correct T568A or T568B order.

Professional installers will always use a high-end certification tester, which they source from a dedicated electrical wholesaler to ensure every job meets strict Australian Standards, but a standard continuity tester is perfect for home troubleshooting.

How to Use It

Using a tester is incredibly straightforward.

1. Connect the Cable: Plug one end of your Ethernet cable into the main tester unit and the other end into the remote unit.
2. Turn it On: Switch the device to 'Test' mode.
3. Watch the Lights: You will see LED lights numbered 1 to 8 (and G for Ground) flash in sequence.
4. Read the Results: If the lights flash in the exact same order on both units (1-1, 2-2, 3-3, etc.), your cable is good. If a light doesn't flash, that wire is broken. If the lights flash out of order, the wires are crossed.

A Note on Fixed Cabling

While making and testing loose patch leads is a great DIY skill, remember that the fixed cabling inside your walls is a different story. In Australia, any data cabling that is concealed in wall cavities or ceiling spaces must be installed and maintained by a registered licensed cabler.

If your data cable tester indicates a fault with a wall socket or internal wiring, do not attempt to fix it yourself. You need to call a professional to legally repair the fixed infrastructure.
