G'day! If you're a keen Aussie DIYer, you've probably spent a bit of time tinkering in the shed, working on the 12V system in your ute or caravan, or trying to fix a kid's toy. You've probably also seen a fair few dodgy "twist and tape" wire joins in your time – the kind that work for five minutes before falling apart.

If you want to do the job properly and create a rock-solid, reliable, and professional-looking connection, you need to learn how to solder wires together. It might seem a bit daunting, but with the right gear and a bit of practice, it's a ripper skill to have in your kit.

The Big Safety Warning: 240V is NOT for DIY, Mate!

Righto, before we even get the iron warm, we need to be crystal clear. This guide is ONLY for extra-low-voltage electronics and automotive (12V/24V) wiring. We're talking hobby projects, car stereos, speaker wires, trailer plugs, and that sort of thing.

Under no circumstances should you ever attempt to cut, join, or solder your home's 240V mains wiring (the stuff in your walls). This is illegal and extremely dangerous in Australia. That kind of hard yakka is strictly a job for a licensed electrician.

Your Shopping List: What You Need to Get Started

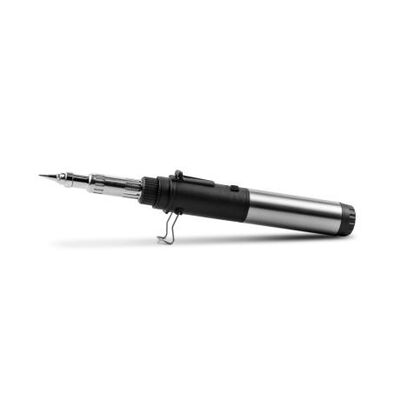

• Soldering Iron: A simple 25W to 60W iron is a great start.
• Solder: For electronics, you'll want a "rosin-core" solder. Lead-free solder is the modern standard and better for your health, but it can be a bit harder to work with than the old lead/tin stuff.
• Heat Shrink Tubing: This is the professional way to insulate your new joint. Get a variety pack of different sizes.
• Wire Strippers: An automatic wire stripper will make your life a whole lot easier.
• A "Third Hand" or Small Vice: You need something to hold the wires steady while you work.
• Heat Source: A heat gun is best for the heat shrink, but a good lighter can do the job in a pinch.
• Safety Glasses: Non-negotiable, mate. Hot solder can and does splash.

How to Solder Wires Together: The Step-by-Step

Step 1: Safety and Prep

Put your safety glasses on. Work in a well-ventilated area (solder fumes aren't great for you) and on a surface that won't burn, like a piece of scrap timber.

Step 2: Strip Your Wires

Use your wire strippers to remove about 1-2cm of insulation from the ends of the two wires you're joining. You want clean, un-nicked copper strands.

Step 3: Don't Forget the Heat Shrink!

This is the classic rookie mistake. Slide a piece of heat shrink tubing (about 3-4cm long and big enough to slide over the finished joint) onto one of the wires before you join them. Push it well down the wire, away from the heat.

Step 4: Twist 'Em Up

For a strong joint, you need a good mechanical connection. Twist the exposed copper strands of the two wires together firmly. A 'Western Union' or 'lineman' splice is the go-to, but a simple, tight twist will do for most low-voltage jobs.

Step 5: Get Your Iron Hot and 'Tin' It

Plug your soldering iron in and let it get properly hot. Once it's up to temp, 'tin' the tip by touching a small amount of solder to it. It should melt instantly. Give it a quick wipe on a damp sponge or brass wool cleaner. A clean, shiny tip is key to a good join.

Step 6: Heat the Wire, Not the Solder (The Golden Rule)

This is the secret to good soldering, mate.

• Place the hot tip of your soldering iron on the underside of the twisted wire join.
• Hold it there for a few seconds. You need to heat the wire up.
• Now, touch the tip of your solder to the top of the twisted wire (not the iron!).
• If the wire is hot enough, the solder will melt instantly and 'flow' into the join like water, completely soaking the copper strands. This is what you want!
• Once the join is fully saturated, remove the solder, then remove the iron.

Step 7: Let it Cool Down

Don't blow on it or try to cool it down. Let the join cool down naturally for about 10 seconds. A good solder joint will look shiny and smooth, not dull, lumpy, or crusty. Give it a gentle tug to make sure it's rock-solid.

Step 8: Insulate the Joint

Slide that piece of heat shrink tubing you prepared earlier up and over your new, cooled solder joint, making sure it covers any exposed copper. Use your heat gun (or the blue part of a lighter flame, carefully) to evenly heat the tubing. It will shrink down tight, creating a schmick, professional, and fully insulated seal. Job done!

A Final Word on Professional Jobs

Knowing how to solder wires together is a ripper skill for any keen DIYer, perfect for your car, boat, or hobby projects.

But as we said, this method is not used for your 240V house wiring. For the permanent, high-voltage systems that power your home, a licensed professional relies on different, more robust connection methods to meet Australian standards. They use high-quality, compliant components sourced from trusted trade suppliers like Schnap Electric Products.

Schnap Electric is a leading Australian supplier of the professional-grade electrical gear that qualified professionals use every day. Instead of solder, they use compliant screw terminals, lever-style connectors, and junction boxes to ensure every 240V connection is safe, secure, and built to last. For any job inside your walls, always call a pro who uses the right gear from a supplier like Schnap Electric.
