G'day! So you're setting up your 12V system in the 4WD, ute, or caravan. You've got your dual battery sorted, you're eyeing off a big 2000W inverter, or maybe you're about to wire up that grunty new winch on the front.

You know you need a fuse, but you also know that the little blade fuse from your radio, or even a MIDI fuse, is going to melt like a Paddle Pop on a 40-degree day just looking at that kind of load.

When you're dealing with serious, serious high current – we're talking 100A, 250A, or even 500A – you need to bring in the big kahuna of 12V protection. You need a MEGA fuse holder.

So, What is a MEGA Fuse Holder, Exactly?

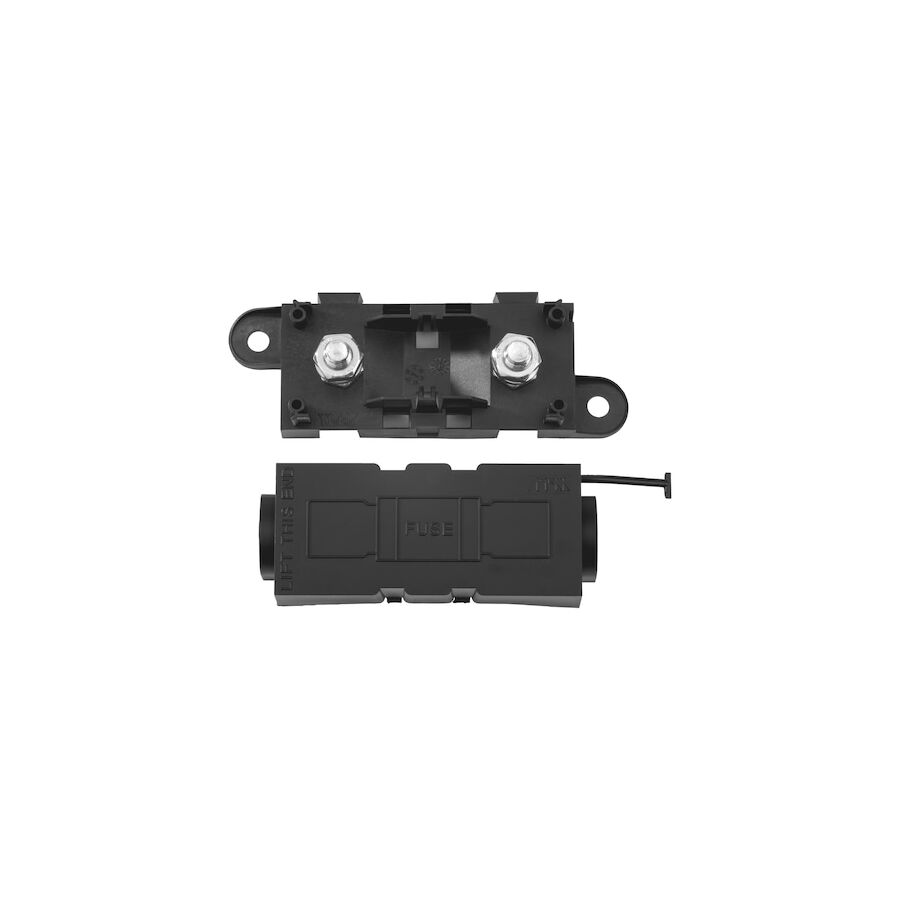

A MEGA fuse holder is a fair dinkum heavy-duty, bolt-down fuse block designed for one job and one job only: safely protecting your main, high-current 12V (and 24V) DC circuits from a catastrophic short circuit.

It's the "master safety switch" of your 12V system. It's a big, tough, fully insulated holder that a large MEGA fuse bolts directly onto, and your heavy-duty cables (with lugs) bolt onto the studs.

The Ripper Benefits: Why It's a Non-Negotiable

This isn't just a "nice-to-have," mate. For high-power gear, it's a critical safety device.

• It Handles Massive Grunt: This is the big one. A MEGA fuse holder is built for the high-amperage loads that would instantly vaporise a smaller fuse. It's designed to run circuits from 100A right up to 500A.
• Catastrophic Protection (Stops Fires!): This is its most important job. It's not just protecting your fridge; it's protecting the massive, thick (and bloody expensive) cable running from your main battery. If that cable rubs through and shorts to the chassis without a fuse, it will get red hot, melt its insulation, and could easily start a fire in your rig. The MEGA fuse blows in an instant, stopping this from happening.
• Rock-Solid Connection (No Rattles!): A blade fuse can rattle loose on a corrugated road, cutting power to your fridge (talk about a nightmare!). A MEGA fuse bolts down. Your heavy-duty cable lugs also bolt down onto the studs. It's a 100% vibration-proof connection that will not let you down.

Where You'll See These Heavy Hitters Used

• 4WD Dual-Battery Systems: The number one use. As the main fuse right off the starting battery, protecting the big cable running to your DC-DC charger or VSR in the back.
• Winch Power: A winch pulls a massive amount of current (300A-500A+!). It must have its own high-amp fuse, and a MEGA fuse holder is the go-to.
• Large Inverters: That 1500W or 2000W inverter needs its own protection (e.g., a 150A or 200A MEGA fuse).
• Boats & Marine: Protecting main battery banks, anchor winches, or bow thrusters.
• Heavy Machinery: Used all over industrial and farm gear.

A CRITICAL Note on Installation (Don't Be a Galah!)

This is not a "she'll be right" job. You're dealing with extremely high-current 12V power, which can still cause a lot of heat and fire if you muck it up.

1. Use the Right Cable: You must use thick, heavy-gauge cable (often 0 B&S or bigger) that's rated to handle the current.
2. Crimp it Right!: The ring terminals (lugs) on the end of your cable must be crimped with a proper, heavy-duty hydraulic or indent crimping tool. A dodgy crimp with a hammer will get hot, melt, and fail.
3. Fuse for the Wire, Not the Gear: This is the golden rule. You choose a fuse size to protect the cable from catching fire, not just the appliance.
4. Get it Close to the Battery: The fuse must go as close to the power source (i.e., the battery terminal) as possible.

From 12V Rigs to 240V Homes

Using the right, high-quality component like a MEGA fuse holder is the mark of a professional, safe 12V installation. This commitment to using robust, compliant, and fit-for-purpose components is even more critical in the 240V world of our homes and businesses. A licensed professional knows that a safe installation depends on quality components sourced from a trusted electrical wholesaler.

As one of Australia's most comprehensive electrical wholesaler and supplier networks, Schnap Electric Products stocks the lot. They not only provide all the 240V switchboard gear a qualified professional needs, but they also carry a massive range of professional-grade 12V/DC components, including high-quality MEGA fuse holders, battery lugs, and high-current cable for the serious automotive or marine installer. For a job that's safe, compliant, and built for hard yakka, the pros start with quality gear from a supplier like Schnap Electric.
