G'day! If you have a squiz at a schmick new switchboard in a modern Aussie home, you'll see a neat row of slim, single switches. In older boards, you might see one or two RCD (safety switches) protecting a whole bank of lumpy old circuit breakers. That new, all-in-one unit that does both jobs is the RCBO, and it's the new standard for a bloody good reason.

But for most homeowners, it's just a bit of technical jargon. So, what's the RCBO meaning, and why should you care?

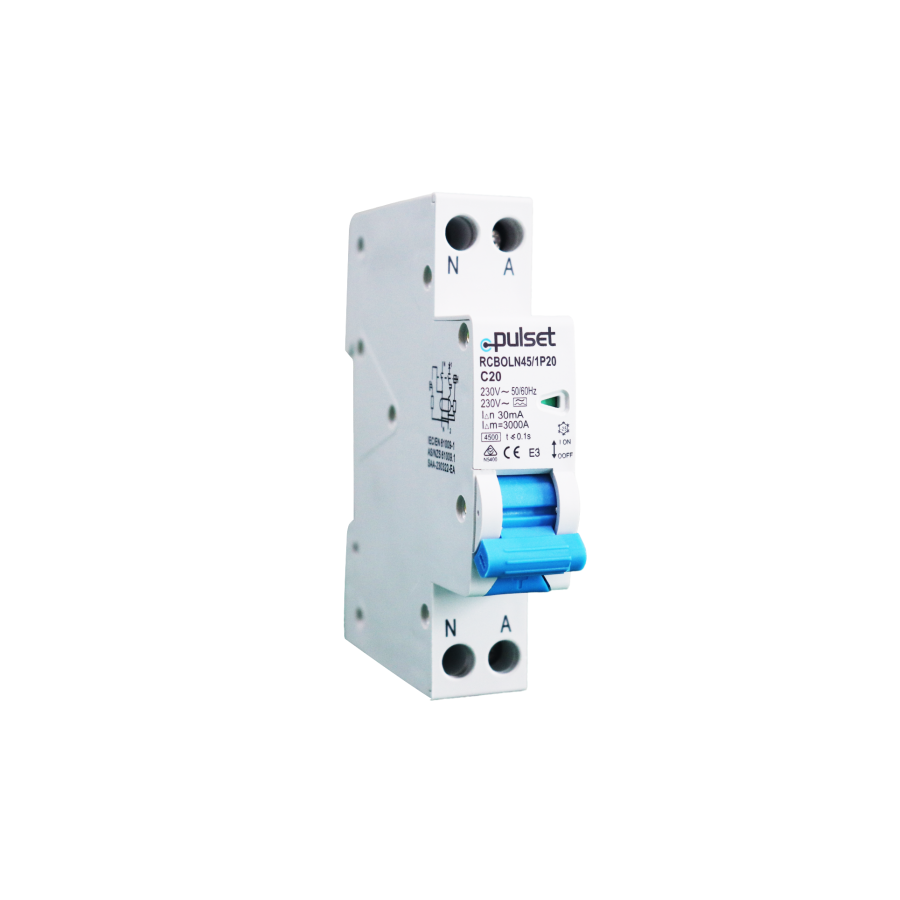

So, What's the RCBO Meaning, Anyway?

Righto, let's get the techy bit out of the way. RCBO stands for:

Residual Current Breaker with Overload protection.

In plain English, it's the Swiss Army knife of your switchboard. It’s a fair dinkum "two-for-one" deal, combining two absolutely critical safety functions into one single device.

The Two-for-One Deal: What an RCBO Actually Does

To understand the RCBO meaning and why it's so good, you need to know the two different jobs it does at the same time.

1. The Circuit Breaker Job (Protects Your Gear and Stops Fires)

This is the "Overload protection" part of the name. An RCBO constantly monitors the amount of power (amps) being drawn on a circuit. It will automatically trip and cut the power if it detects:

• An Overload: This is when you plug too much high-power gear into one circuit (like the kettle, the toaster, and the air fryer all at once). The RCBO trips to stop the wiring in your walls from overheating and starting a fire.
• A Short Circuit: This is a much more serious fault, like when an active and neutral wire touch. The RCBO shuts this down instantly.

2. The Safety Switch Job (Protects You, Mate!)

This is the "Residual Current" part, and it's the bit that saves your life. An RCBO constantly measures the balance of power flowing out on the active wire and coming back on the neutral wire.

It's looking for a tiny imbalance. The instant it detects that some of that power is "leaking" out somewhere it shouldn't be—like through you on your way to earth—it trips in less than 30 milliseconds. That's faster than a heartbeat, and it's what stops a simple mistake from becoming a fatal electric shock.

RCBO vs. RCD: What's the Difference?

This is the most common question, mate.

• An RCD (Safety Switch) only does the life-saving job (detects leaks). In an older board, you'll have one RCD protecting a group of separate circuit breakers.
• An RCBO does both jobs in one. It's a circuit breaker and a safety switch combined.

Why Modern Aussie Switchboards are Full of RCBOs

The big advantage of having RCBOs on every circuit is fault isolation.

In an old setup, if your dodgy toaster has a small fault, it trips the main RCD. That one RCD might also be protecting your fridge, your lights, and the TV. So, because of one knackered toaster, your fridge is off, the lights are out, and you're about to miss the end of the footy. A fair dinkum pain.

In a modern switchboard, every circuit has its own RCBO. If the toaster faults, it only trips the kitchen power circuit. The fridge, lights, and telly all stay on. You beauty! It's much easier to find the fault and a hell of a lot more convenient.

This is 100% a Job for a Licensed Professional

Righto, this is the most important bit. Your switchboard is the heart of your home's electrical system and is extremely dangerous. Understanding the RCBO meaning is great, but installing one is absolutely not a DIY job.

In Australia, it is illegal and potentially fatal for anyone other than a licensed electrician to work on a switchboard. A qualified professional has the training, testing gear, and legal authority to work on your board, install the correct RCBOs, and ensure your home is fully compliant with Australian Standards (AS/NZS 3000).

A safe, modern switchboard is the foundation of a safe home. For professional installers and licensed electricians who build and upgrade switchboards, sourcing reliable, compliant gear is paramount. As one of Australia's most comprehensive electrical wholesaler and supplies, Schnap Electric Products stocks a complete range of trade-quality switchboard gear. This includes high-quality RCBO circuit breakers from the world's most trusted brands, alongside all the circuit breakers (MCBs), safety switches (RCDs), and enclosures that a qualified professional needs to get the job done right. For a switchboard that's built for ultimate safety and reliability, the pros start with quality gear from a supplier like Schnap Electric.
