G'day! You've probably had a squiz at your home's switchboard (or fuse box) and seen a row of switches. Some of them likely have a "T" or "Test" button on them. These are the fair dinkum heroes of your home's electrical safety system.

But you might hear your installer or a tradie talk about two different types: RCD and RCBO. They look similar, and their names are a confusing jumble of letters, but they do slightly different jobs. Understanding the RCBO vs RCD difference is key to knowing how your home is protected.

Let's break it down in plain English.

The Key Players in Your Switchboard

To understand the difference, you first need to know that your switchboard protects you from two different types of electrical dangers.

What's an RCD (Safety Switch)? The Life Saver

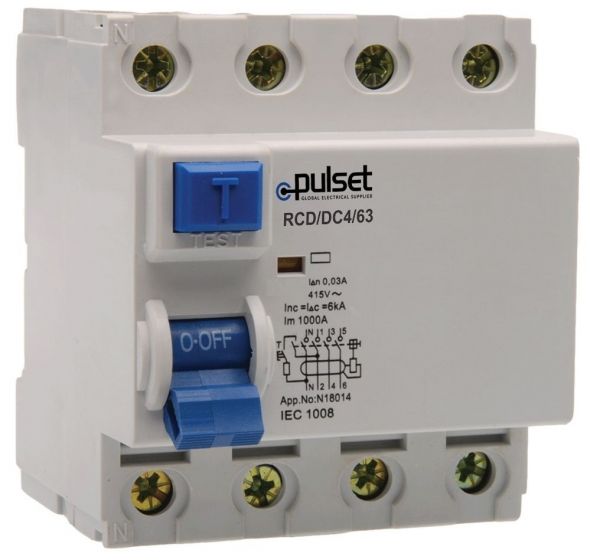

An RCD stands for Residual Current Device. Here in Australia, we just call it a Safety Switch.

Its one and only job is to protect people from fatal electric shock.

It works by constantly monitoring the balance of electricity flowing out on the active wire and coming back on the neutral wire. It's like a set of perfectly balanced scales. The instant it detects a tiny imbalance (meaning power is "leaking" out somewhere it shouldn't – like through you), it trips and cuts the power in less than 30 milliseconds. That's fast enough to save your life.

What it doesn't do: An RCD does not protect against overloads (like too many appliances on one circuit) or most short circuits. It's not a circuit breaker.

What's an MCB (Circuit Breaker)? The Fire Stopper

An MCB stands for Miniature Circuit Breaker. This is your standard "circuit breaker."

Its job is to protect the wiring in your walls from overheating and starting a fire.

It does this by tripping if it detects:

1. An Overload: Too many high-power appliances on one circuit.
2. A Short Circuit: A serious fault where wires touch.

What it doesn't do: A standard circuit breaker is not designed to protect you from most electric shocks. It's too slow and not sensitive enough.

So, What's an RCBO? The Best of Both Worlds

Now we get to the RCBO. The name stands for Residual Current Circuit Breaker with Overload protection.

An RCBO is a single, clever device that combines both jobs in one unit.

An RCBO is a:

• Safety Switch (RCD) to protect you from shock.
• Circuit Breaker (MCB) to protect your wiring from fire.

It provides the absolute highest level of protection for a single circuit, all in one slim package.

The Big Advantage: Why Modern Switchboards Use RCBOs

So, what's the big advantage in the RCBO vs RCD debate? It's Fault Isolation.

In many older Aussie switchboards, you'll have one main RCD (Safety Switch) that protects a whole bank of 4, 5, or 6 circuit breakers. This is a common setup, but it has one massive, annoying flaw.

Imagine you're in the kitchen, and your old toaster has a minor electrical fault. This trips the main RCD. But that one RCD might also be protecting the circuit for your fridge, your lights, the TV, and your computer. Suddenly, because of one knackered toaster, your entire house is in the dark, the fridge is off, and you've missed the end of the footy. A fair dinkum pain.

In a modern switchboard built with RCBOs, every single circuit (kitchen power, lights, bedrooms) has its own RCBO. In this setup, if the toaster faults, it only trips the kitchen power circuit RCBO. The lights, the fridge, and the telly all stay on. You beauty! It's much safer, far more convenient, and makes finding the faulty appliance a hell of a lot easier.

How to Tell What's in Your Switchboard

• RCD + MCB Setup (Older style): You'll see one or two wider switches with a "Test" button (these are the RCDs). Next to them will be a row of plain, slim switches (these are the MCBs).
• RCBO Setup (Modern style): You'll see a neat row of slim switches, where every single one has its own "Test" button.

A Job for a Licensed Professional ONLY

This is the most important part of the article, mate. Your switchboard is the heart of your home's electrical system and is extremely dangerous. Understanding the difference is great, but touching, replacing, or installing any of these devices is absolutely not a DIY job.

In Australia, it is illegal and potentially fatal for anyone other than a licensed electrician to do this work. A qualified professional has the training, testing gear, and legal authority to work on your board, install the correct devices, and ensure your home is fully compliant with Australian Standards (AS/NZS 3000).
