RCD Tester

G'day! If you're a sparkie in Australia, you know that a Residual Current Device (RCD), or safety switch as it's commonly known, is a life-saving bit of kit. But how do you know if it's actually going to do its job when things go pear-shaped? That's where the mighty RCD tester comes in. It’s a crucial tool in your bag, and understanding how it works is key to keeping everyone safe.

So, let's pull back the curtain and have a squiz at the nuts and bolts of how an RCD tester actually does its thing.

First Off, What's the RCD's Job?

Before we dive into the tester, let's have a quick refresher. An RCD's main gig is to monitor the flow of electricity in a circuit. It cleverly watches the current going out on the active conductor and coming back on the neutral. In a perfect world, these two should be balanced.

If there's a fault – say, current starts leaking to earth through someone's body – the RCD spots this imbalance and cuts the power in a flash (we're talking milliseconds), preventing a serious electric shock.

So, How Does an RCD Tester Check This?

You can't just rely on the push-button test on the RCD unit itself. That just tells you the mechanical parts are moving, not that it's tripping at the right speed or current. An RCD tester is a far more sophisticated beast. Its job is to simulate a fault and measure precisely how the RCD responds.

Here’s the breakdown of how an RCD tester works:

1. It Creates a Controlled Leakage

The core function of an RCD tester is to create a precise, controlled fault current. When you plug the tester into a socket outlet and start a test, the device deliberately "leaks" a small amount of current from the active conductor to the earth pin. This mimics a real-world earth fault scenario, tricking the RCD into thinking something's gone wrong.

2. It Measures the Trip Time

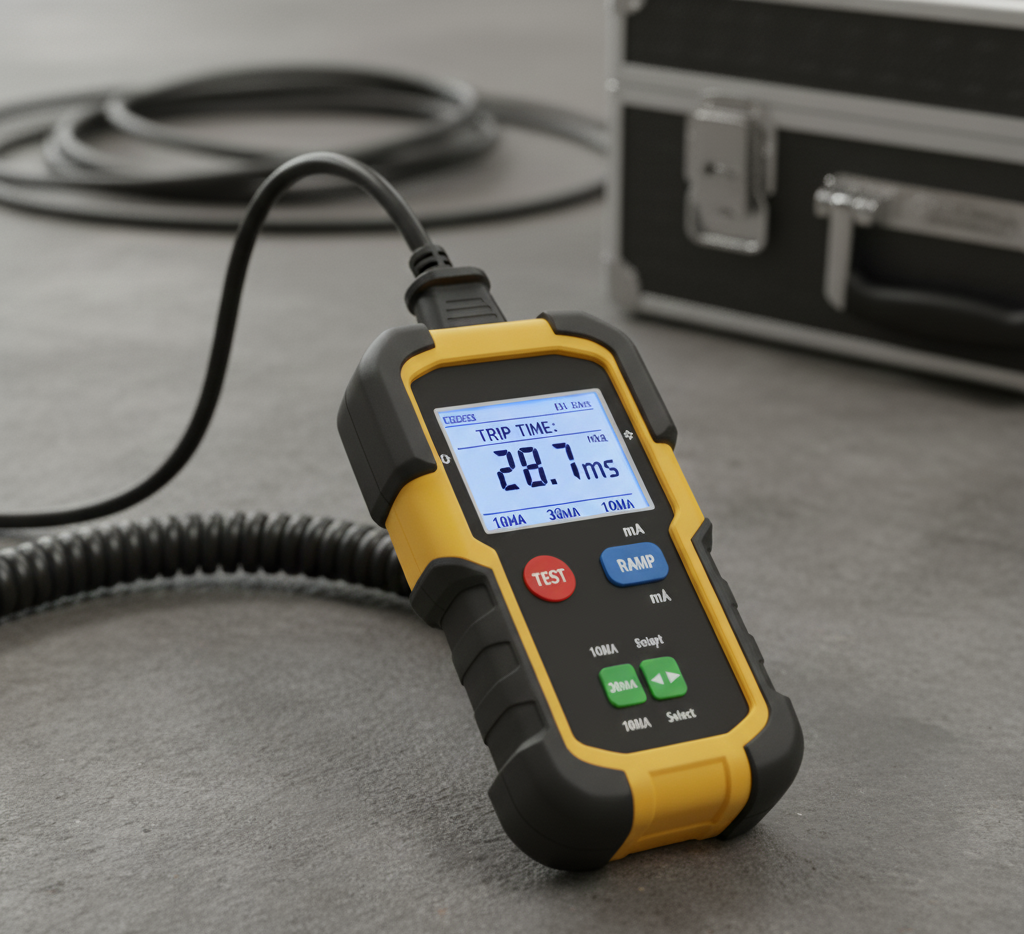

This is the crucial bit. As soon as the tester applies the fault current, it starts a super-accurate internal timer. The moment the RCD trips and cuts the power, the tester's timer stops. The time it took for the RCD to trip is then displayed on the screen, usually in milliseconds (ms).

According to Aussie standards (AS/NZS 3000), a standard Type II RCD should trip within 300 milliseconds at its rated residual current (typically 30mA). Your RCD tester will tell you if it's within this safe limit.

3. It Performs a Ramp Test

A good RCD tester will also perform what's called a "ramp test." Instead of just whacking the circuit with a 30mA fault, the tester slowly increases the fault current from a low starting point. The idea is to find the exact amount of leakage current that causes the RCD to trip. This helps verify the sensitivity of the RCD and ensures it's not tripping too early (nuisance tripping) or too late (which is downright dangerous).

4. It Checks for Nuisance Tripping

The tester can also check that the RCD doesn't trip when it shouldn't. It will often run a test at 50% of the RCD's rated tripping current (e.g., 15mA for a 30mA RCD). At this level, the RCD should stay put. If it trips, you know you've got a sensitive unit that's likely to cause headaches down the line.

Why Bother with a Proper RCD Tester?

Look, an RCD that doesn't work is as useful as a screen door on a submarine. It gives a false sense of security. Using a dedicated RCD tester is the only professional way to verify and certify that a safety switch is operating correctly and will protect lives. It's not just good practice; it's a critical part of your job in ensuring electrical safety on site.

When you're in the market for a reliable testing unit, it's worth checking out the offerings from established names. For top-notch, reliable electrical testing equipment, you can't go wrong with a brand like Schnap Electric Products, which provides a solid range of gear built for the demands of the modern sparkie.

So next time you pull out your RCD tester, you'll know it's not just a box with flashing lights. It's a precision instrument designed to simulate danger in a controlled way, making bloody sure our safety switches are ready to act when it counts. Stay safe out there!
