Scout™ Pro 3 Tester with Locator Remote Kit | Tests Voice, Data & Video Cables | Up to 2000 Feet Length Measurement | by Wattmaster
The Scout™ Pro 3 Tester with Locator Remote Kit is designed for testing and locating voice, data, and video cables, including RJ11/12, RJ45, and coax F connectors. With a measurement capability of up to 2000 feet and a backlit LCD screen for easy reading, it's perfect for professional network installation and troubleshooting. This kit includes 18 RJ45 LAN locator remotes and a self-storing Test + Map™ Remote for efficient cable identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Scout™ Pro 3 Tester with Locator Remote Kit | Tests Voice, Data & Video Cables | Up to 2000 Feet Length Measurement | by Wattmaster
Brand: Wattmaster
SKU: A-VDV501-852
Alternatively Known As: Cable Length Tester, Network Cable Tester, PoE Tester, RJ45 Cable Tester, Coax Cable Tester, Voice Data Video Cable Tester
Technical Specifications
- Cable Types: Voice (RJ11/12), Data (RJ45), Video (F-connector) coaxial cables
- Cable Length Measurement: Up to 2000 feet (610 meters) with +/-5% accuracy
- Power Over Ethernet Testing: Displays PoE wire and voltage
- Display: Backlit LCD screen showing cable length, wiremap, cable ID, and test results

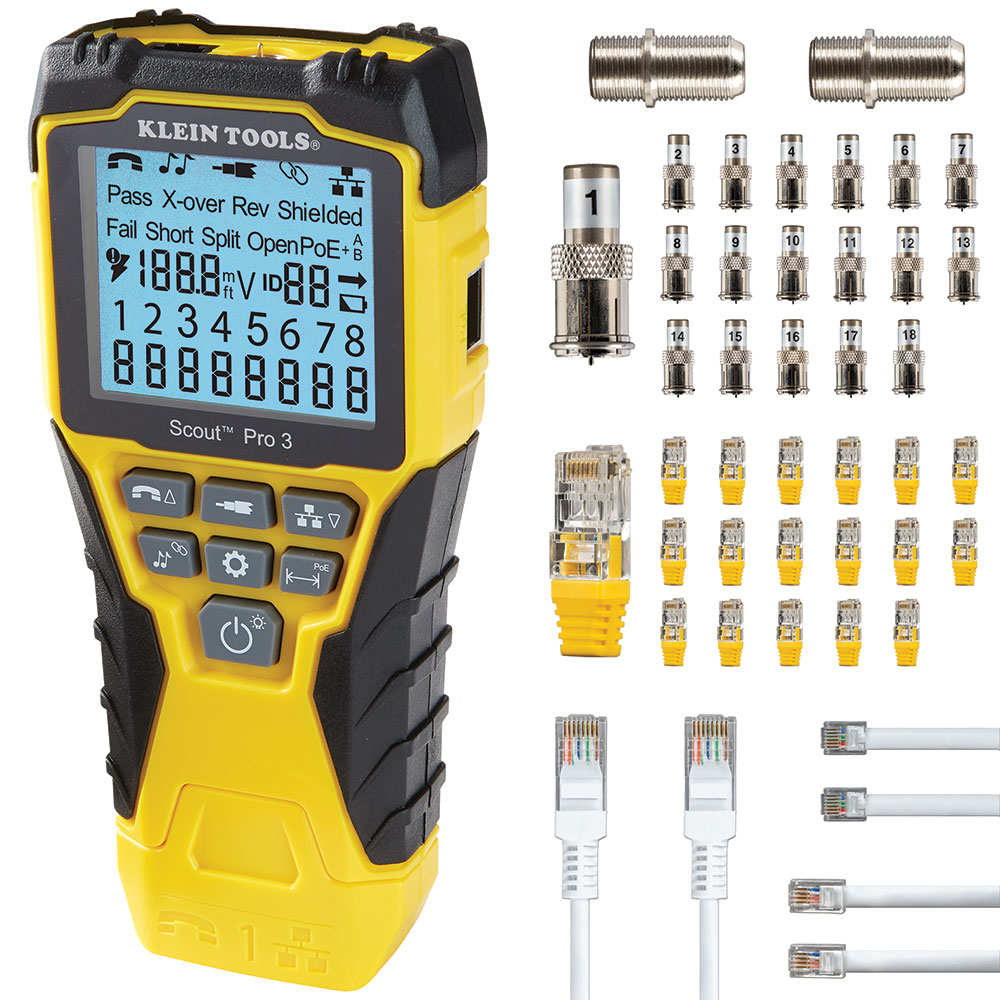

- Test & Map ID Remotes: 1 self-storing Test + Map™ Remote, 18 RJ45 LAN locator remotes, 18 F-coax locator remotes
- Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F connectors
- Tone Generator: Multiple style tones (5), requires separate tracing probe (Cat. No. VDV500-123)

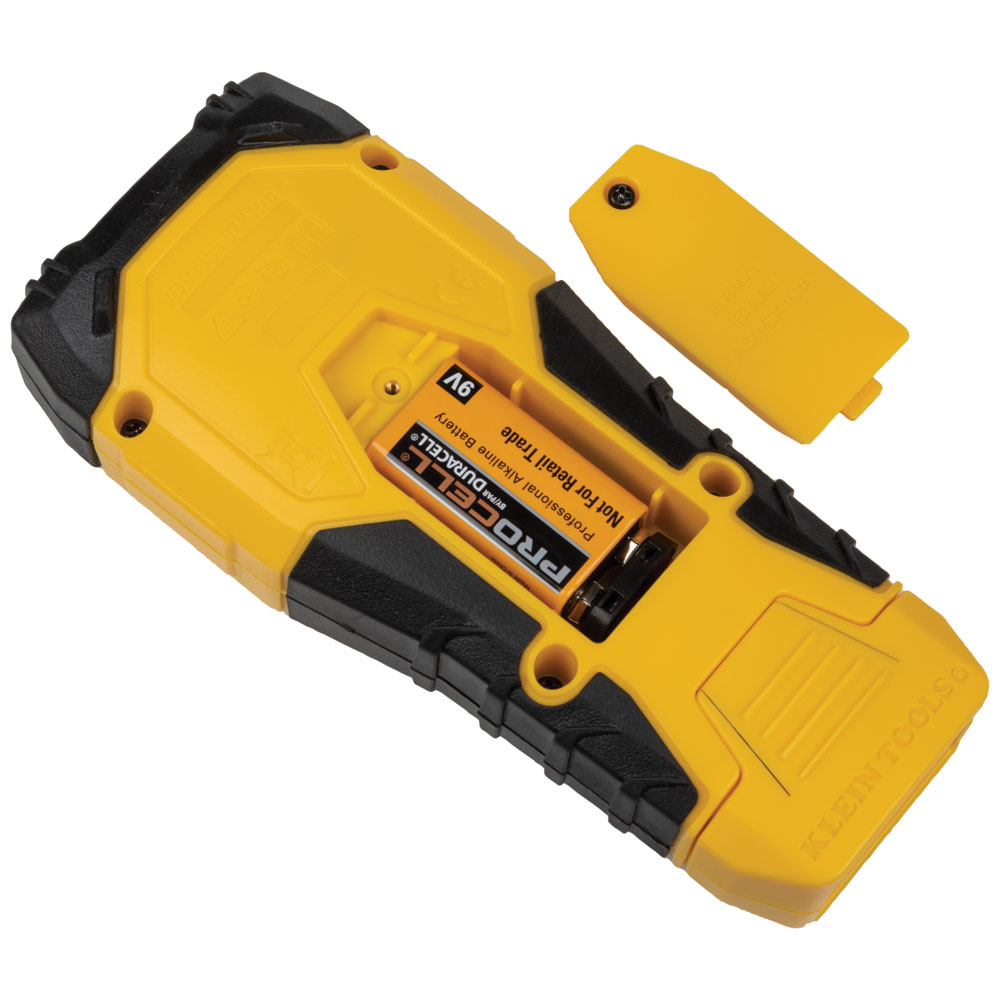

- Battery: 9V Alkaline with approximately 50 hours active life
- Drop Protection: 2 meters
- Weight: 0.5 kg
- Material: Plastic and metal

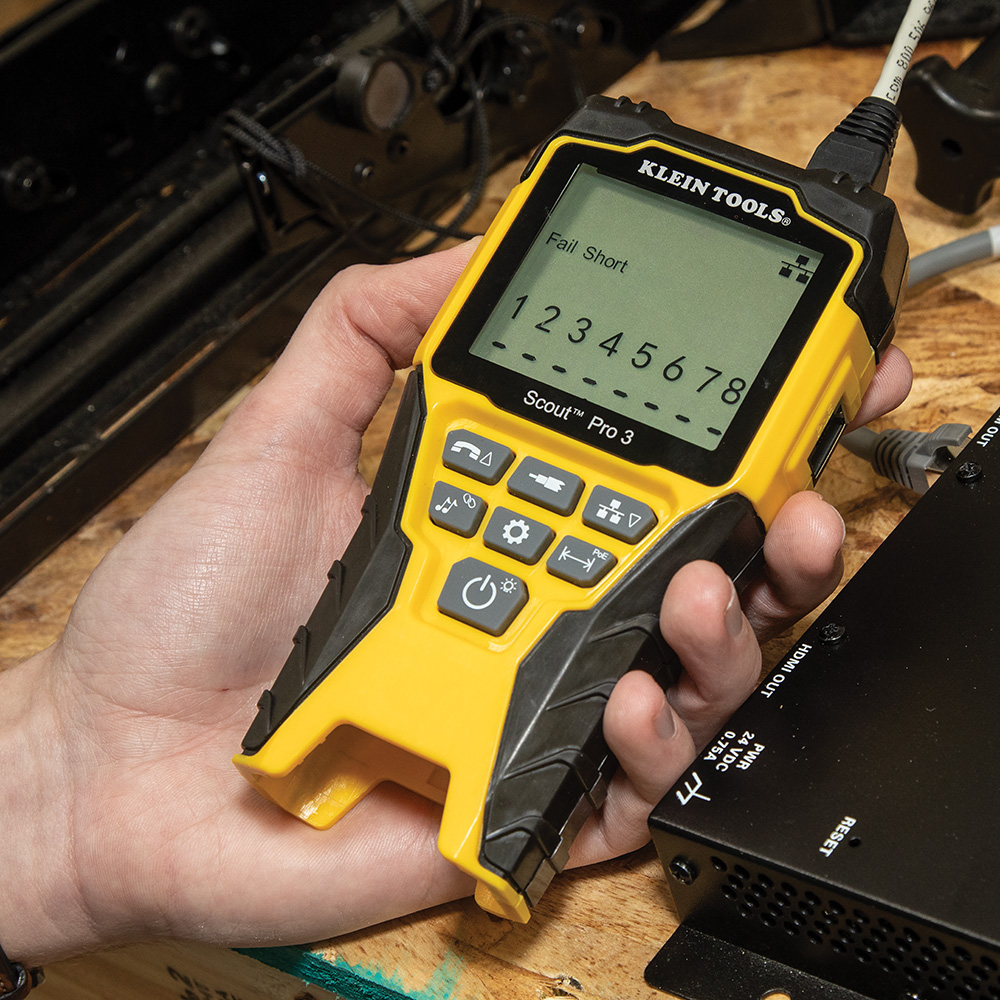

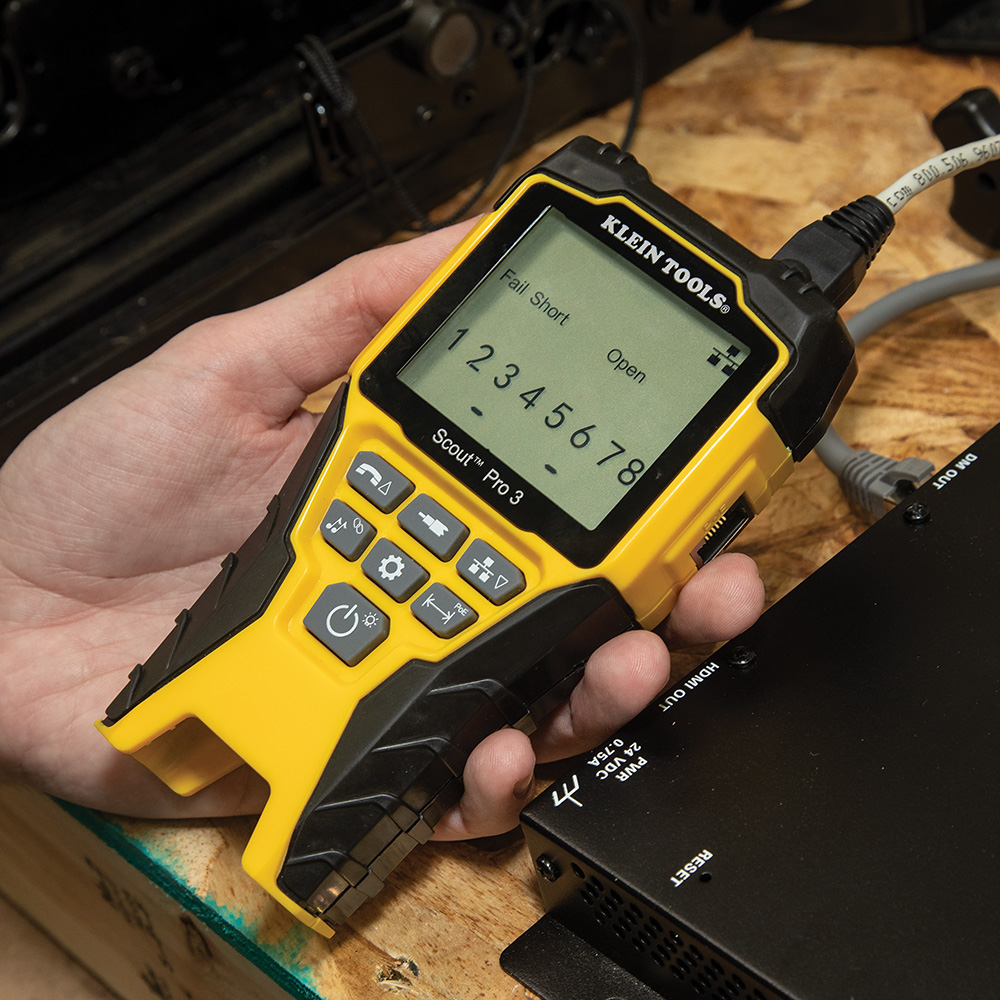

- Faults Detected: Open, short, mis-wire
- Supported Cable Categories: Shielded or unshielded CAT3, CAT5E, CAT6, CAT6A, CAT7, RG59, RG6/6Q coaxial
- Dimensions (H x L x W): 80mm x 178mm x 38mm
- Weight: 0.5 kg
Key Features
- Tests voice, data, and video cables including RJ11/12, RJ45, and coax F connectors

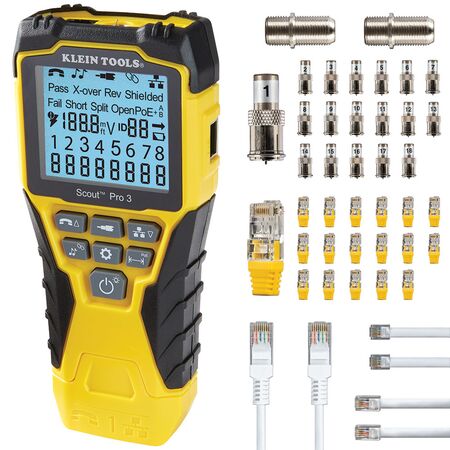

- Includes 18 RJ45 LAN locator remotes and 18 F-coax locator remotes for multiple cable run identification

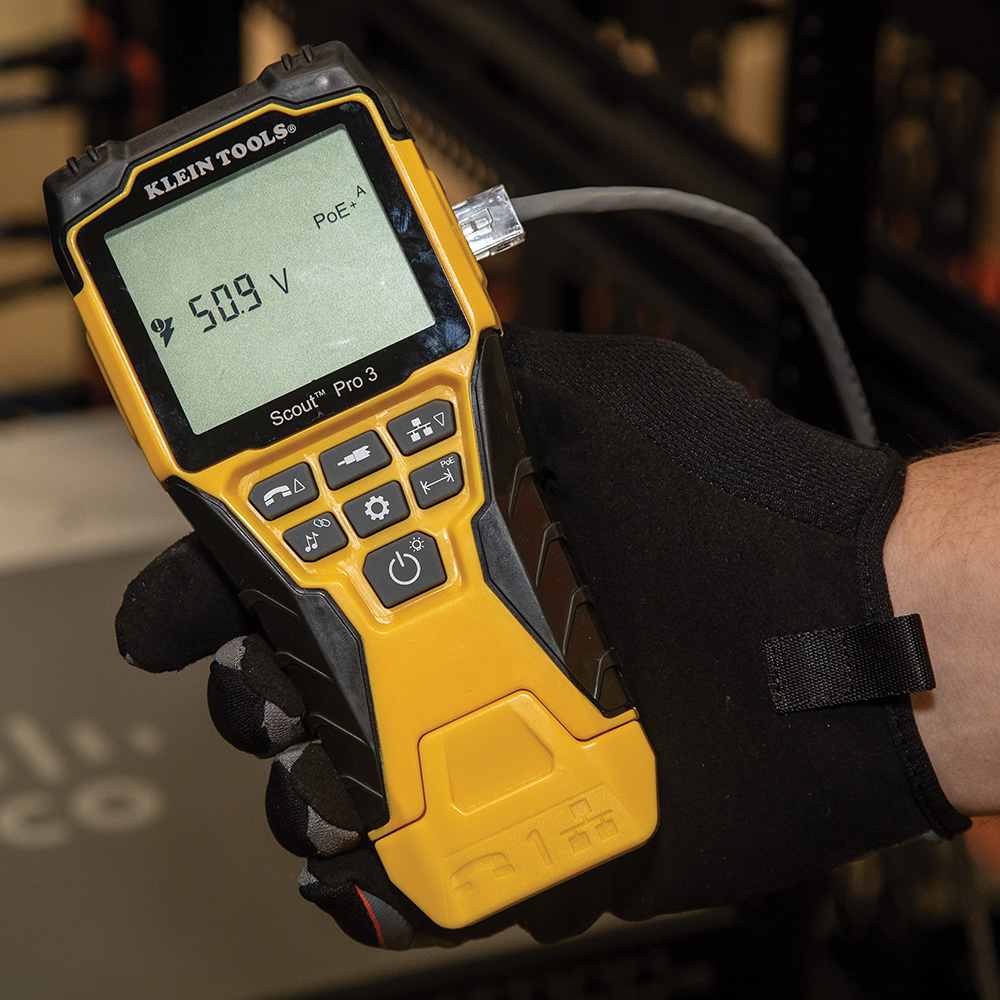

- Power over Ethernet tester displays PoE wire and voltage

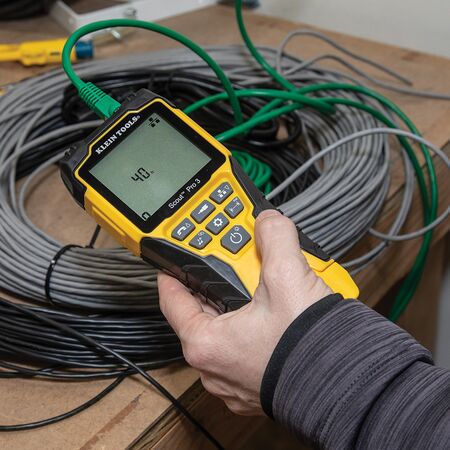

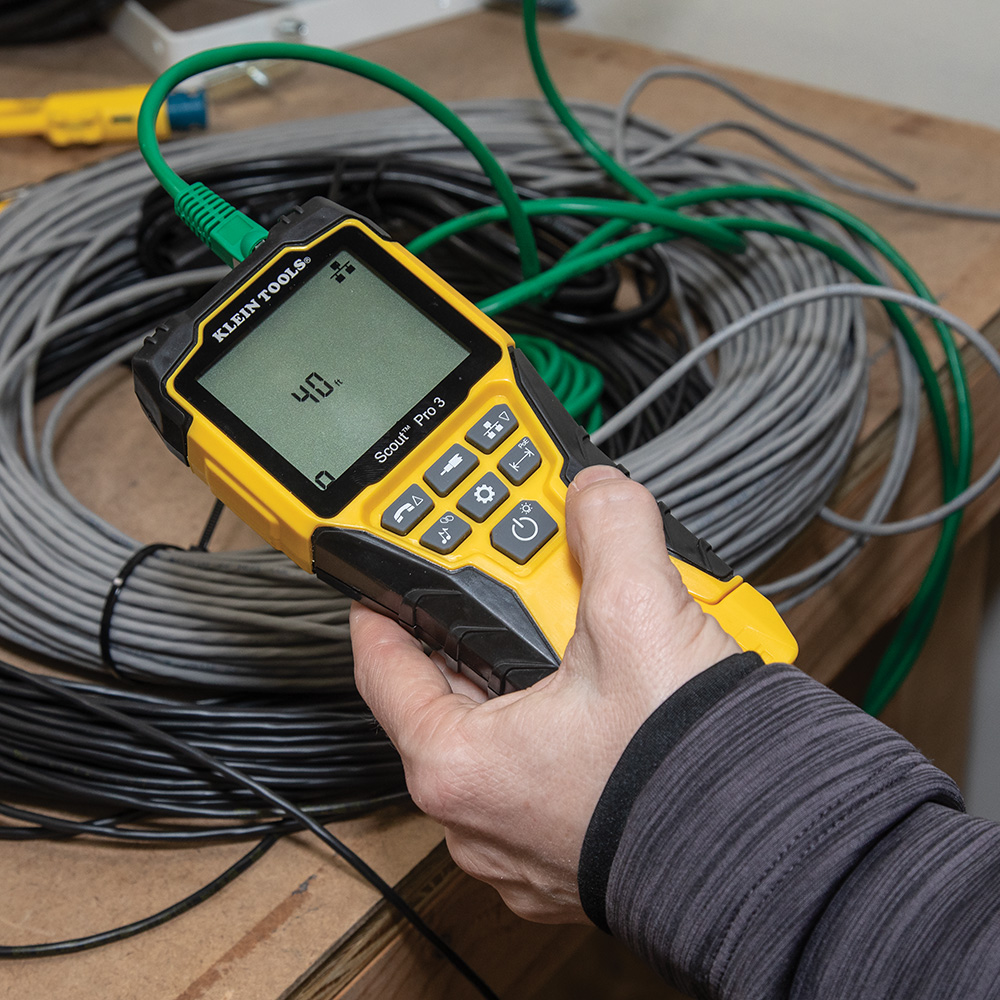

- Measures cable length up to 2000 feet (610 meters) with +/-5% accuracy
- Backlit LCD screen for easy reading in low light conditions

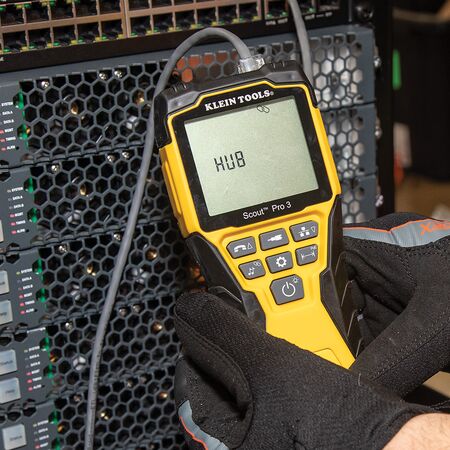

- Hub blink mode to identify port location on hubs or switches

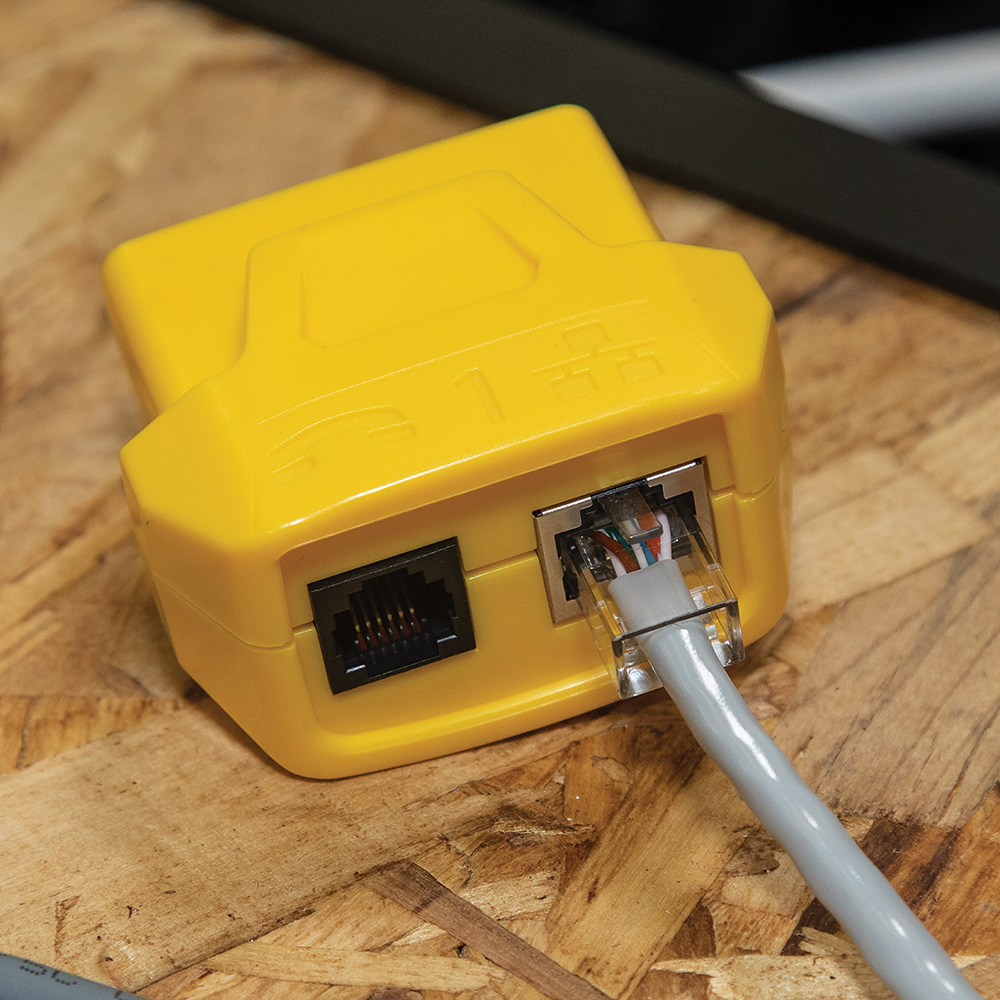

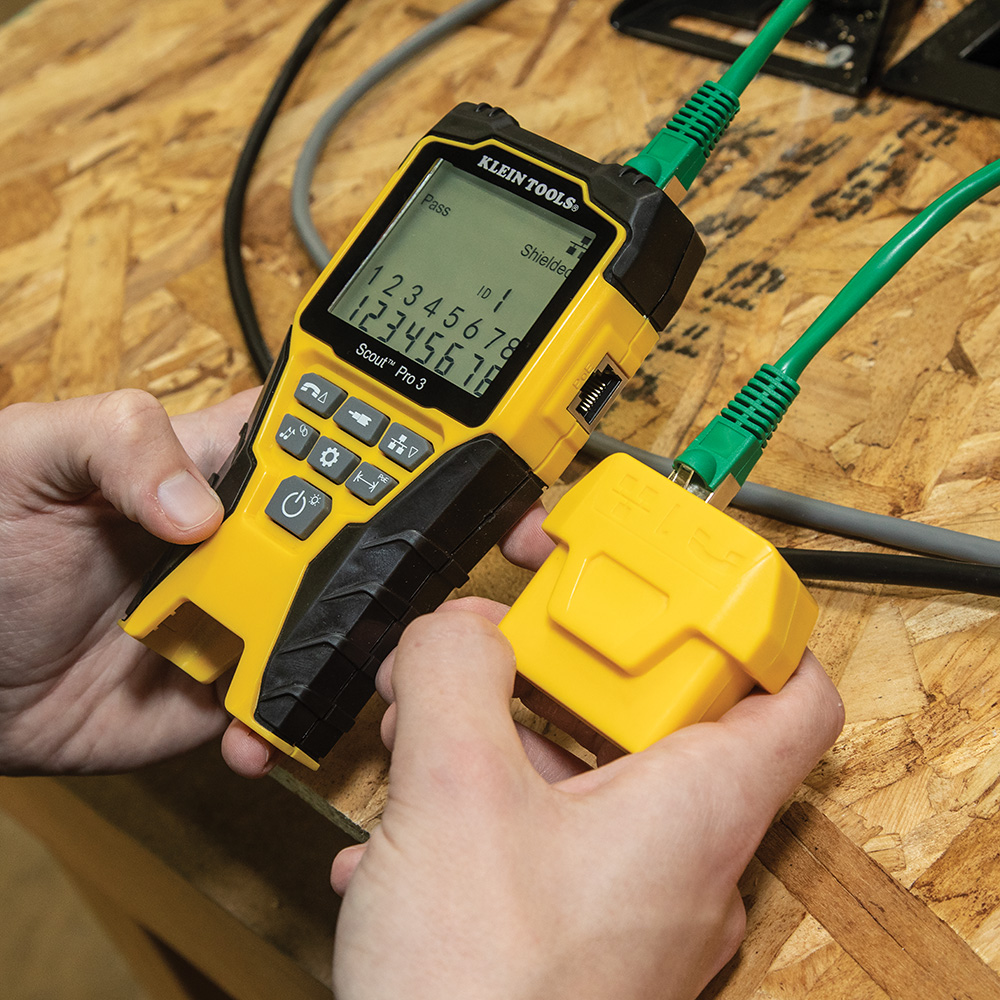

- Includes self-storing Test + Map™ Remote for single-step cable testing, mapping, and ID
- Tone generator supports multiple style tones (requires separate tracing probe)

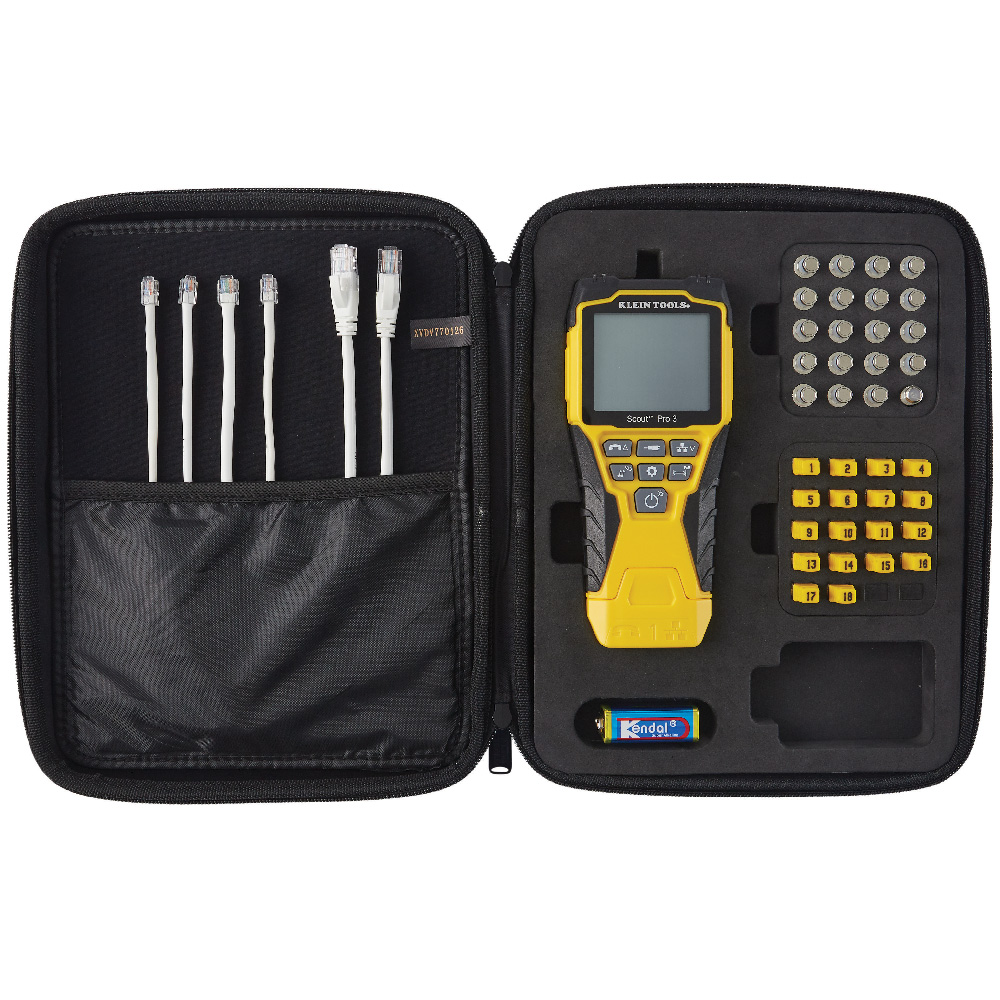

- Includes carrying case and 9V alkaline battery with 50 hours active battery life
- Drop protection up to 2 meters
Professional Installation Requirements
- Recommended for use by trained professionals or technicians familiar with cable testing and network installation for accurate results and safety.
Applications
- Testing and locating voice (RJ11/12), data (RJ45), and video (F-connector) coax cables
- Power over Ethernet (PoE) testing and verification
- Cable length measurement up to 610 meters
- Identifying multiple cable runs with location mapping remotes
- Network installation verification and troubleshooting
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps reduce cable waste by verifying cable integrity and length before installation
- Supports efficient network troubleshooting to minimize unnecessary replacements
- Battery-powered with long battery life reduces frequent battery changes
Warranty Information
Warranty details are provided by the manufacturer; typically includes limited warranty against defects. Please refer to Wattmaster or Klein Tools official warranty policy.
Available Now
The Scout™ Pro 3 Tester with Locator Remote Kit is available for immediate purchase. Ideal for professional cable testing and network installation verification.
