Scout™ Pro 3 Tester with Test + Map Remote Kit | Tests Voice, Data & Video | PoE Detection | by Wattmaster
The Scout™ Pro 3 Tester with Test + Map Remote Kit is designed for comprehensive cable testing, capable of testing voice (RJ11/12), data (RJ45), and video (F-connector) coax connections. With features like Power over Ethernet (PoE) detection and wiremap testing for various faults, it’s perfect for professionals ensuring accurate installations. The backlit LCD screen and multiple remotes enhance usability, making it an essential tool for network technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Scout™ Pro 3 Tester with Test + Map Remote Kit | Tests Voice, Data & Video | PoE Detection | by Wattmaster
Brand: Wattmaster
SKU: A-VDV501-853
Alternatively Known As: Cable Tester with Remote Kit, Network Cable Tester, PoE Cable Tester, Wiremap Cable Tester, Cable Length Meter
Technical Specifications

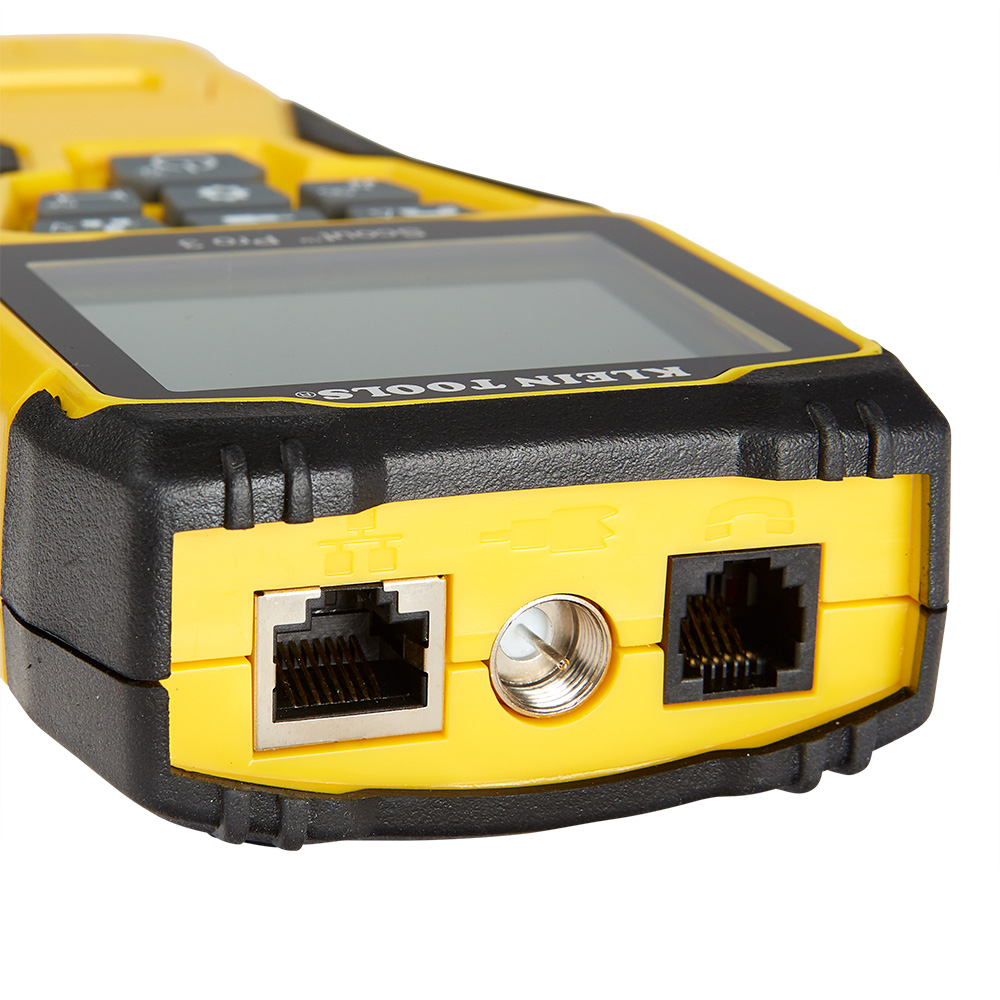

- Tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections

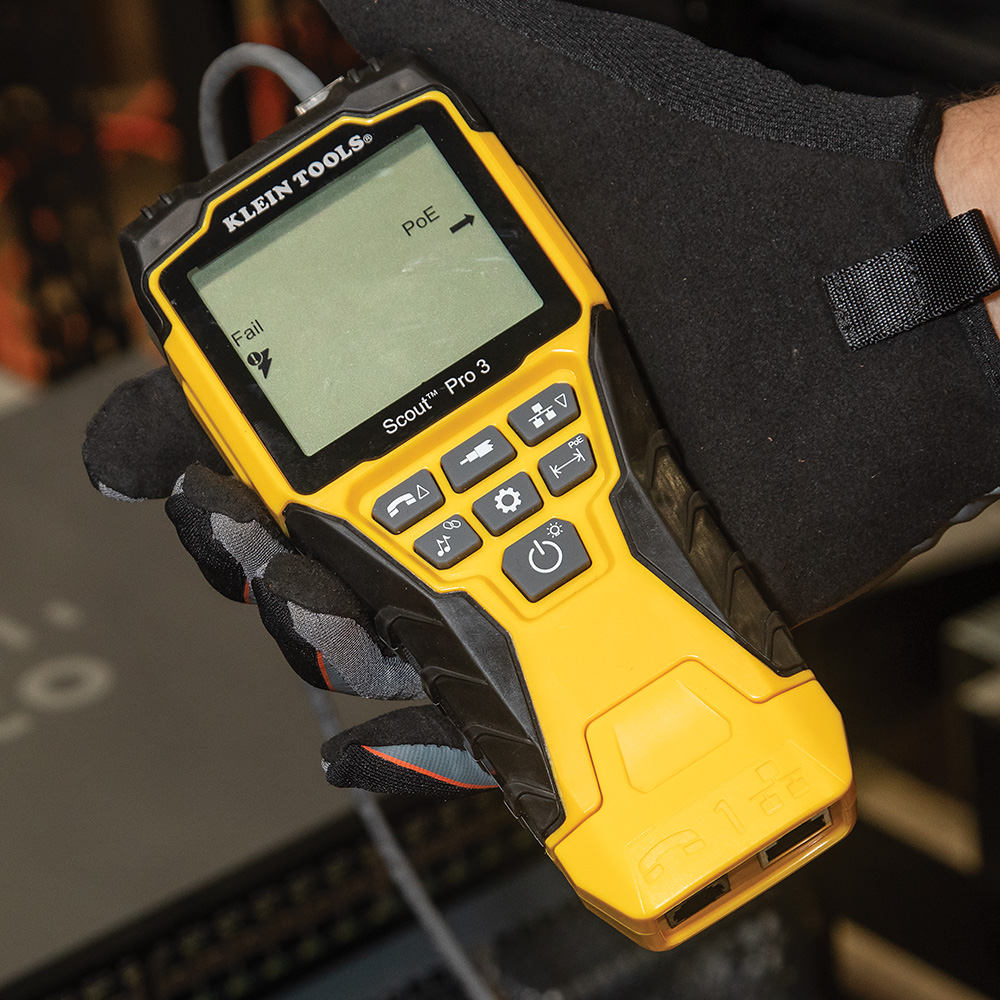

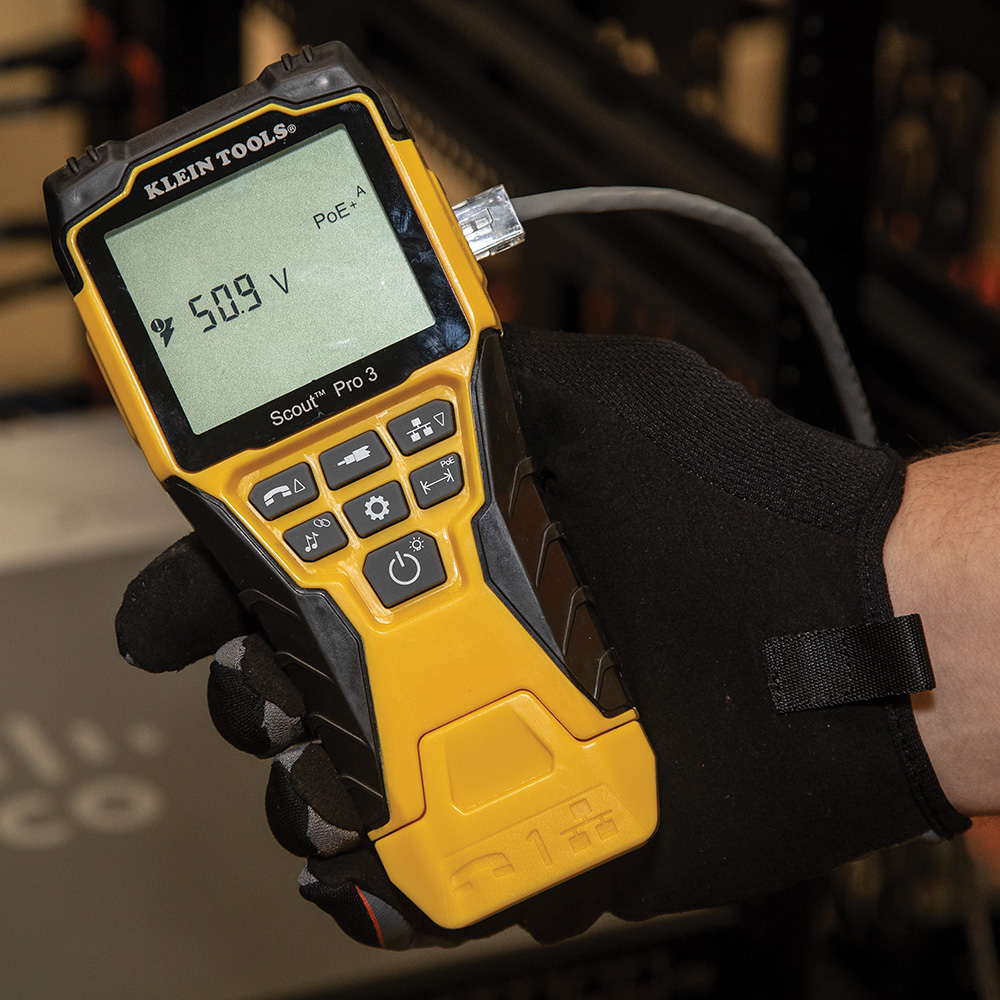

- Detects and identifies Power over Ethernet (PoE)

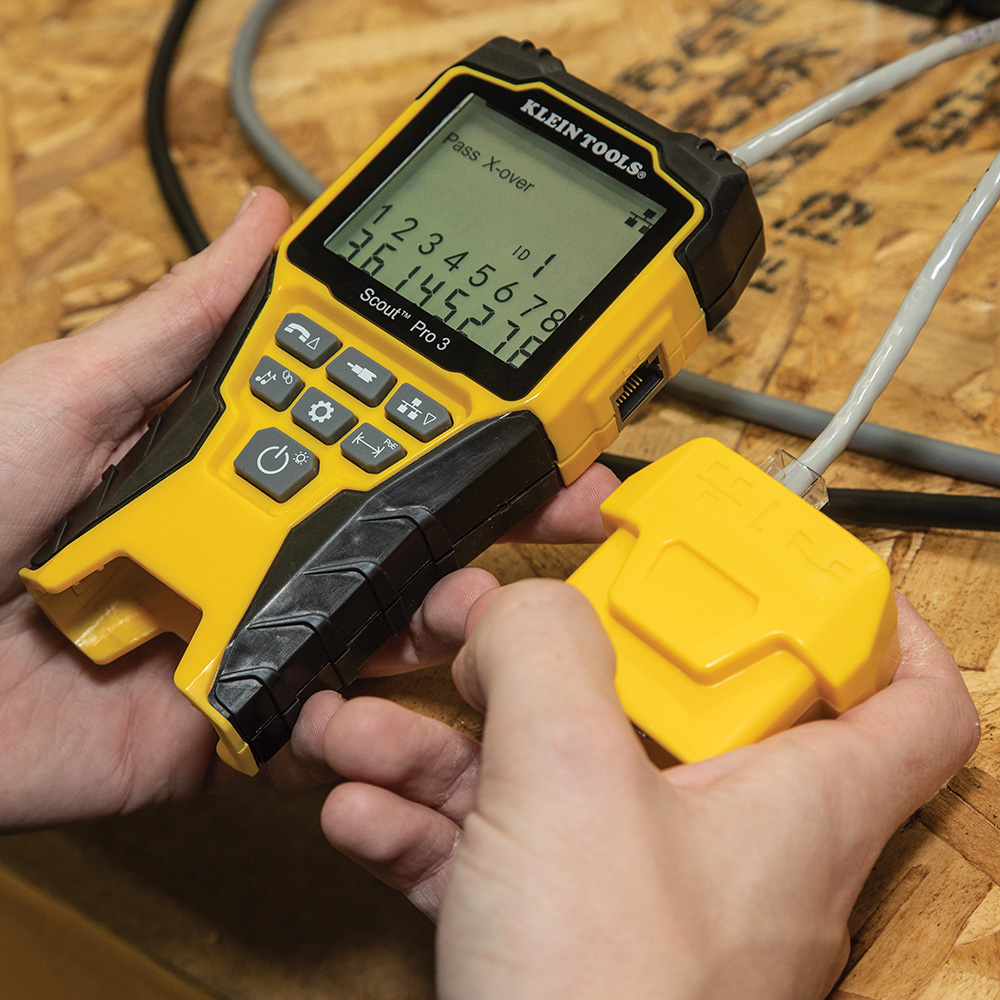

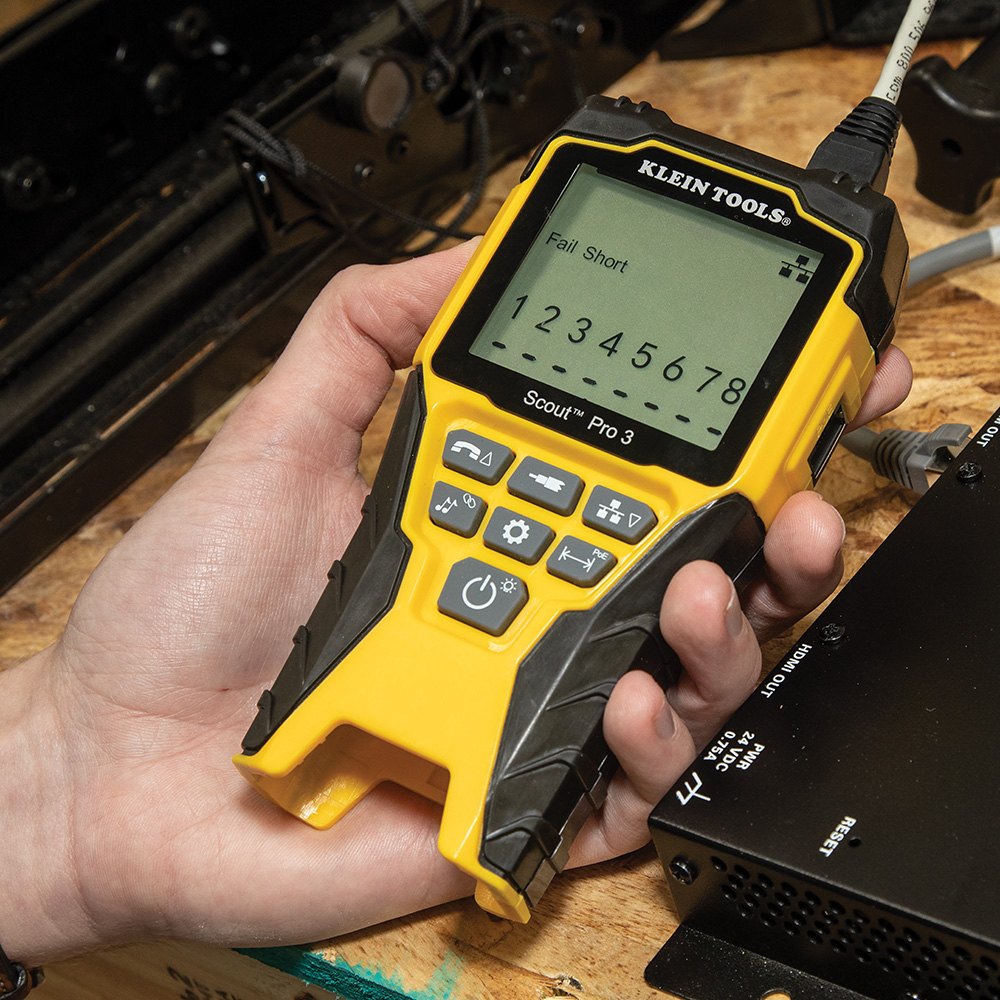

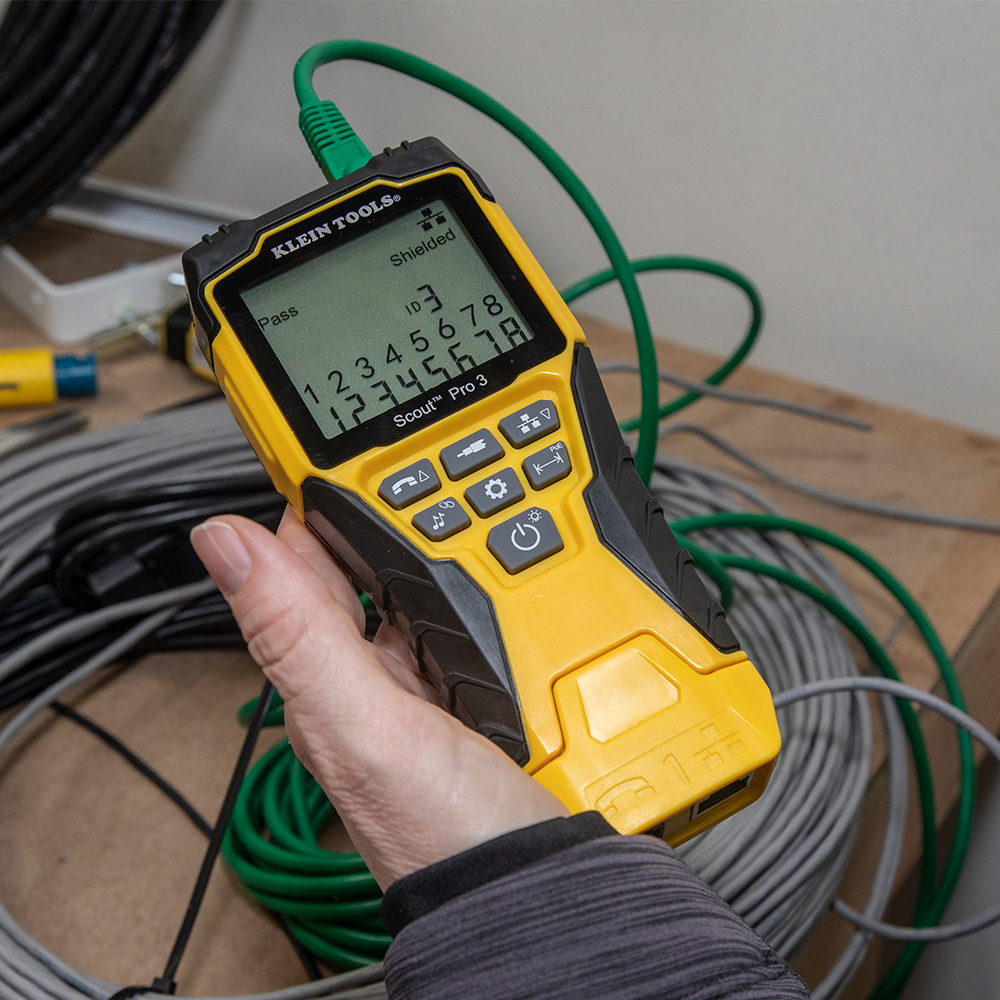

- Wiremap testing for miswires, split pairs, short faults, open faults and shields

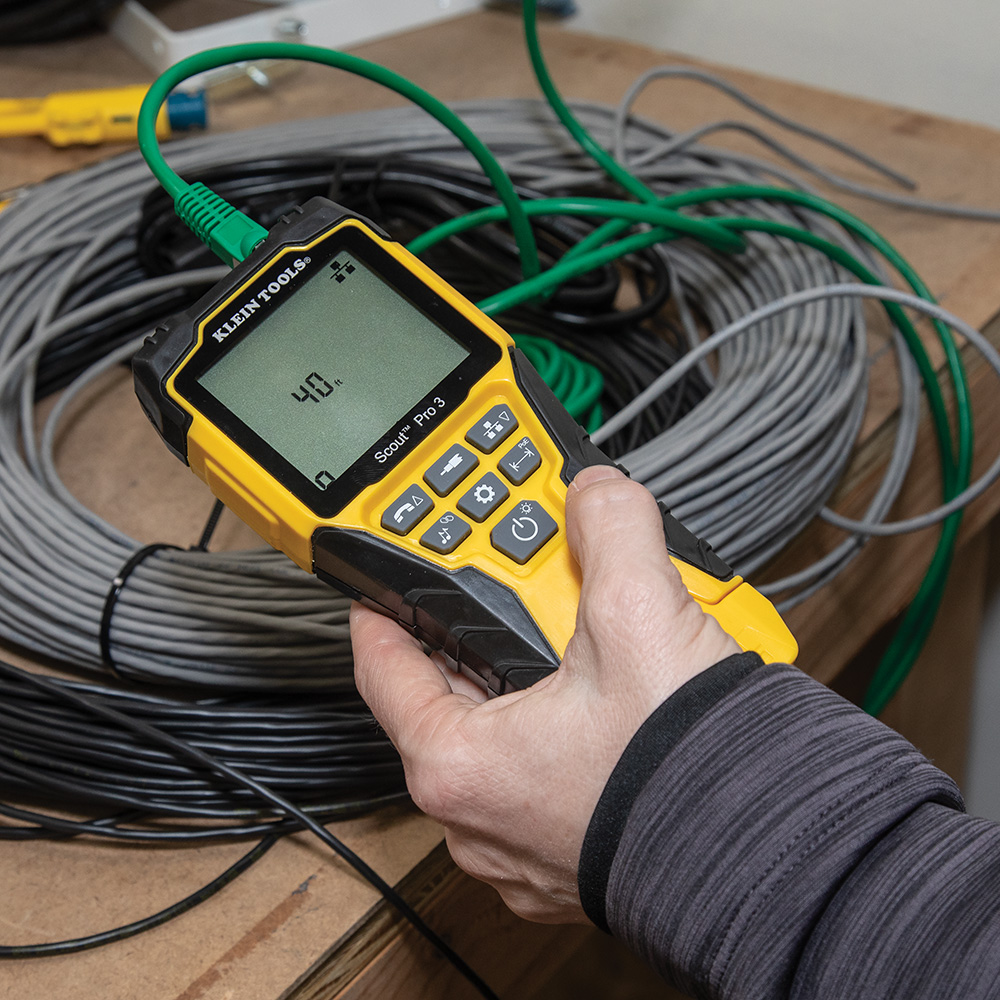

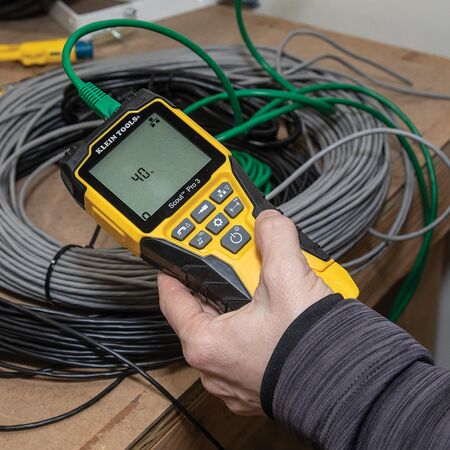

- Measures cable length up to 2000 feet with +/-5% accuracy
- Backlit LCD screen
- Multi-style tone generator (requires separate probe)

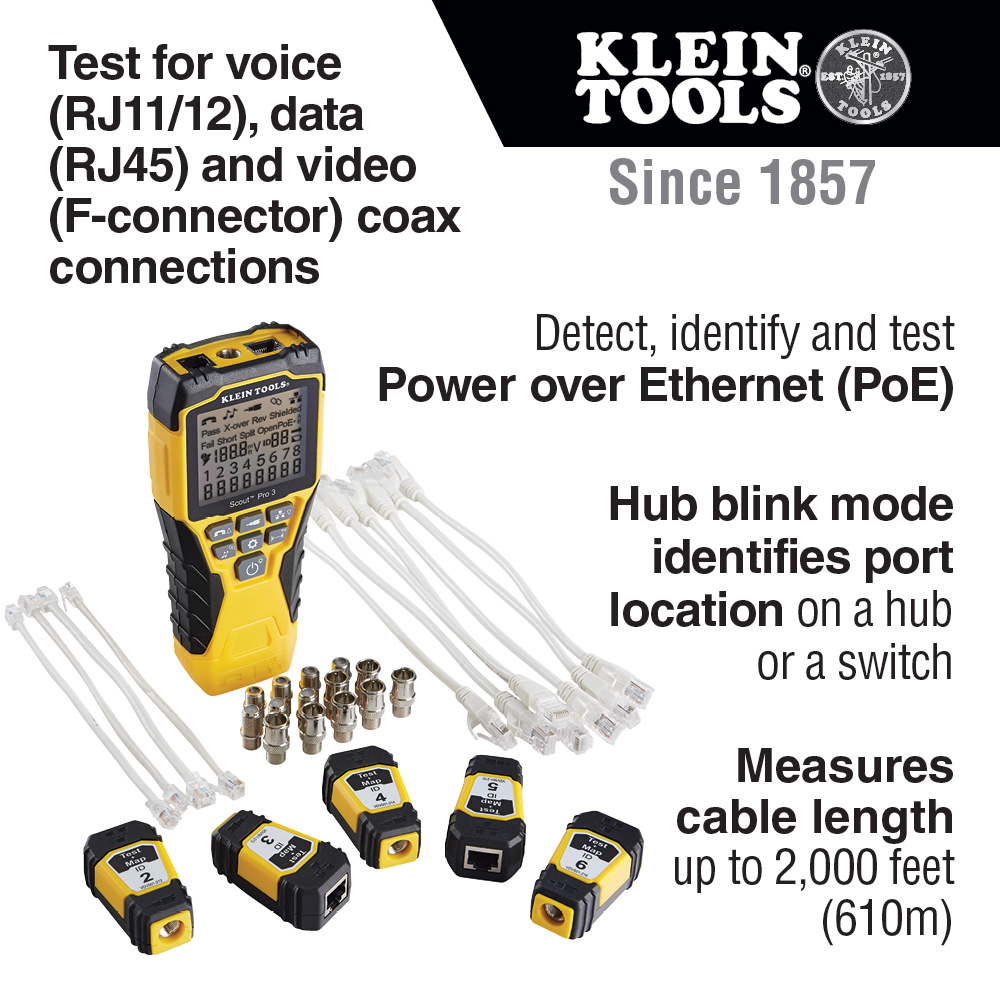

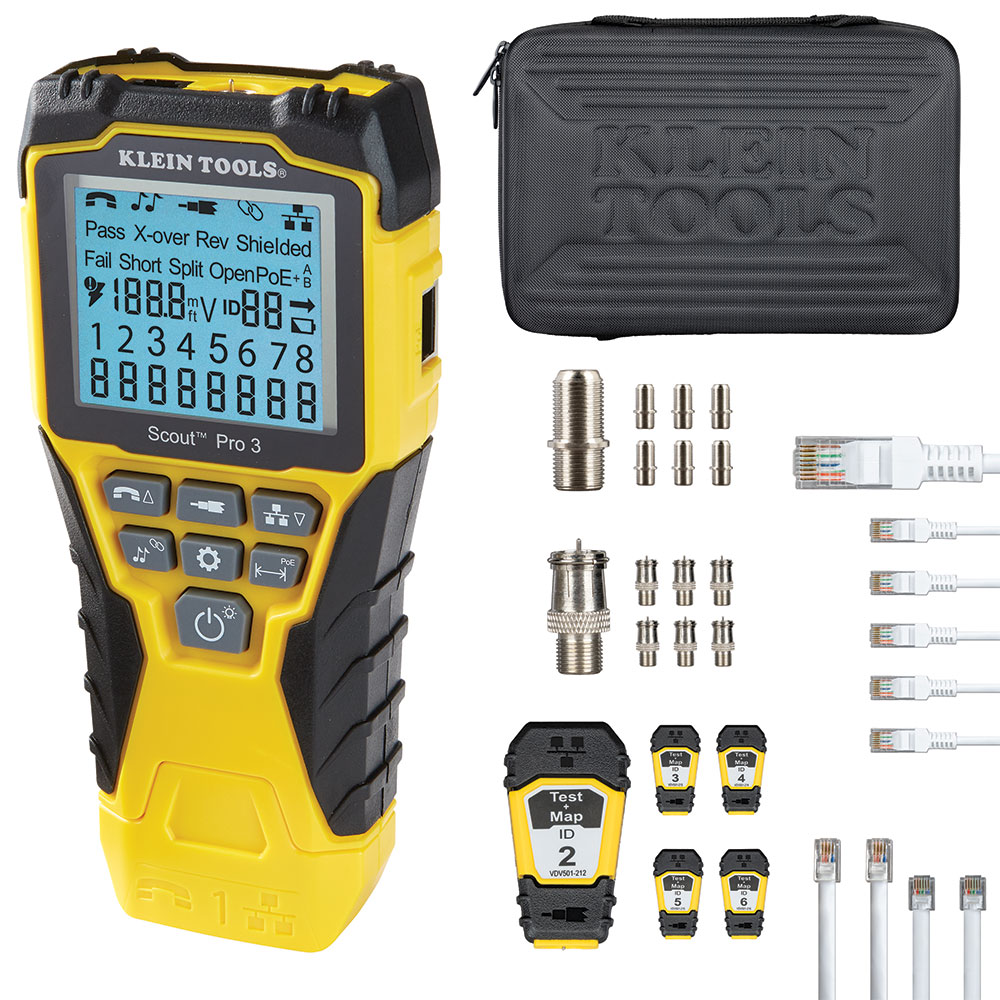

- Includes 1 self-storing Test+Map remote (#1), 5 Test+Map remotes (#2-6)
- Includes 7 female-to-female and 7 male-to-female coax barrel adapters
- Includes 7 RJ45 jumper cables, 2 RJ11 and 2 RJ12 jumper cables

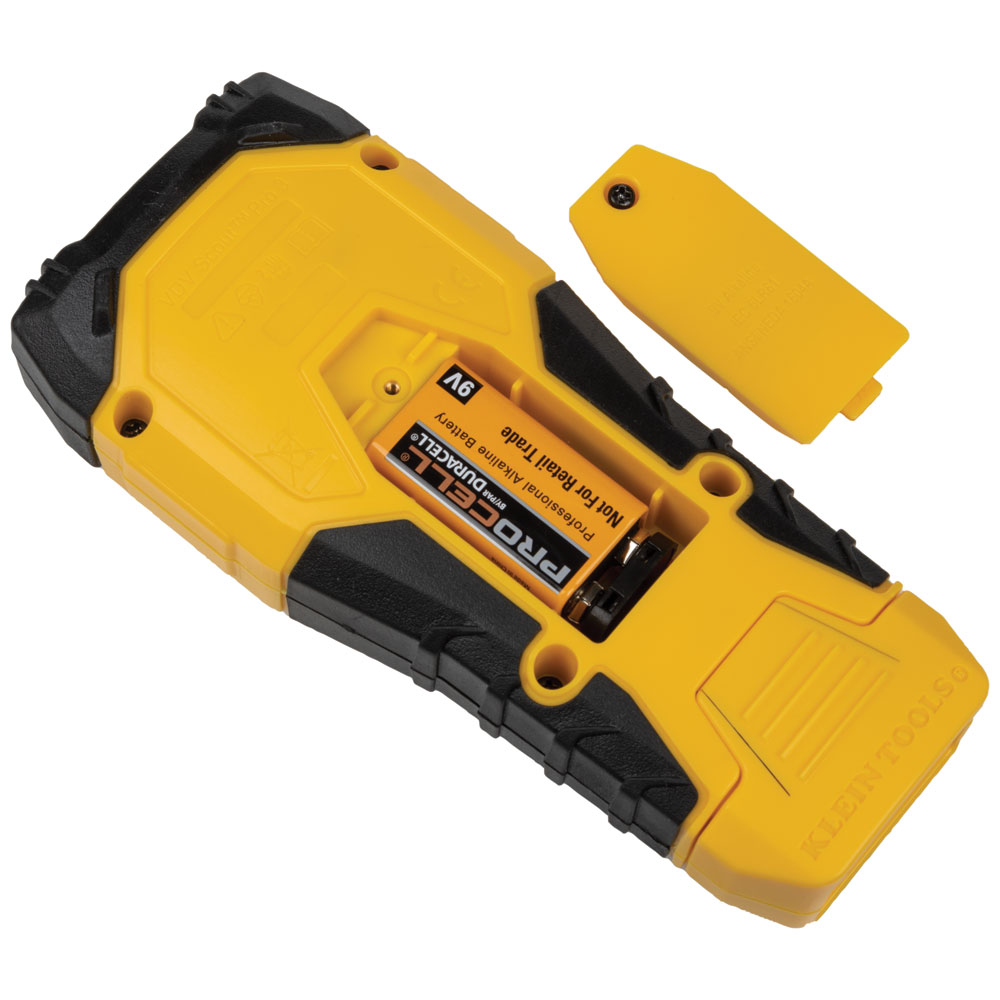

- Powered by 9V alkaline battery with 50 hours active life
- Drop protection up to 2 meters
- Dimensions (H x L x W): 80mm x 178mm x 38mm
- Weight: 0.5 kg
Key Features
- Tests voice, data and video coax connections
- Detects and identifies Power over Ethernet (PoE)
- Wiremap testing for miswires, split pairs, short faults, open faults and shields
- Measures cable length with +/-5% accuracy
- Includes multiple Test + Map remotes for fast, accurate cable identification
- Backlit LCD screen for easy reading in low light

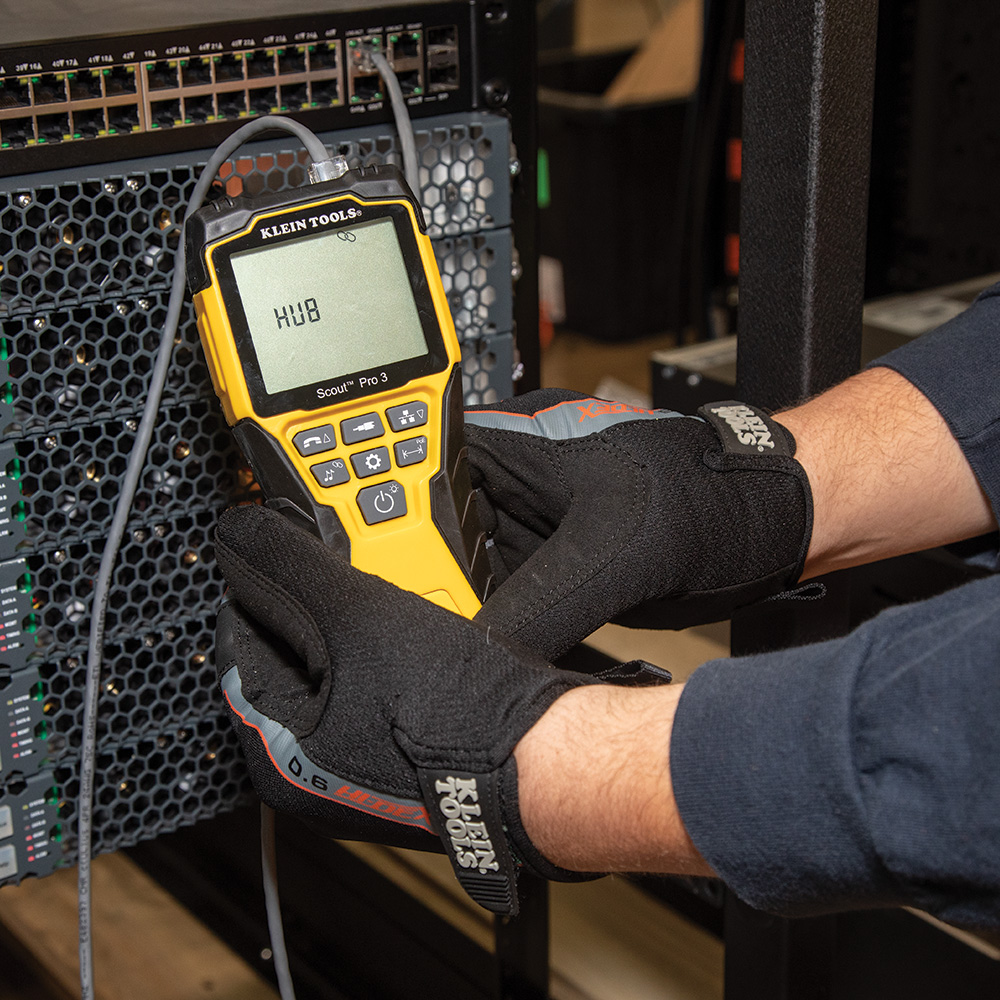

- Hub blink mode to identify port location
- Includes various coaxial barrel adapters and jumper cables
- Multi-style tone generator for cable tracing (probe sold separately)
- Drop protection up to 2 meters
- Battery life up to 50 hours active use
Professional Installation Requirements
- Recommended for use by trained professionals or technicians familiar with cable testing and network installations to ensure accurate results and safety.
Applications
- Testing and locating voice (RJ11/12), data (RJ45) and video (F-connector) coax cables
- Verifying cable installations for POE, POE+, A wiring, B wiring and voltage
- Measuring cable length up to 2000 feet
- Tracing cables, wire pairs and individual conductor wires
- Identifying port location on hubs or switches
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps ensure accurate cable installations reducing waste and rework
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Scout™ Pro 3 Tester with Test + Map Remote Kit is available now for immediate purchase. Ideal for professional cable testing and network installation verification.
