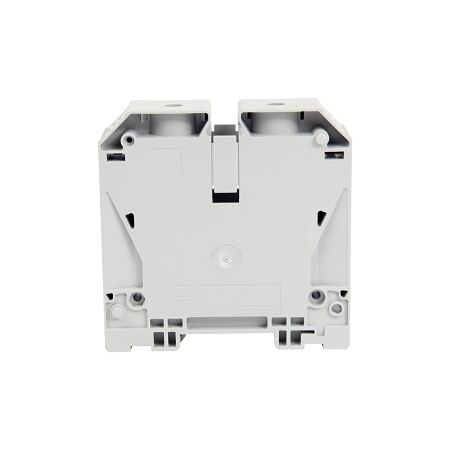

Allen-Bradley 1492-J Screw Connection Terminal 120mm 1 Level 2 Conductor Entries Grey

Screw Connection Terminal 120mm | 269A 1000V | DIN Rail Mount | Grey by NHP

BRAND: NHP

SKU: 1492J120

$98.20 List price: $130.40

+ −

30 Days Return Delivery Options

Screw connection terminal with 120mm length and 269A, 1000V rating—ideal for industrial and commercial electrical installations. Built for secure connections, with easy DIN rail mounting and durable grey design.

Description
Attachments

Product Name/Title: Allen-Bradley 1492-J Screw Connection Terminal 120mm 1 Level 2 Conductor Entries Grey

Brand: NHP

SKU: 1492J120

Alternatively Known As: Screw Terminal Block, Feed-through Terminal Block

Technical Specifications

Type of electrical connection: Screw connection
Rated current: 269 A
Rated voltage: 1000 V
Number of levels: 1
Number of clamp positions per level: 2
Mounting method: DIN rail (top hat rail) 35 mm
Inflammability class of insulation material: V0
Nominal tightening torque: 16 Nm
Wire conductor size: 4-120 mm
Wire strip length: 27 mm
Insulation temperature: -50-120 °C
Dimensions (H x L x W): 91mm x 84mm x 27mm
Weight: 0.5 kg

Key Features

Screw connection for reliable electrical contact.
Rated for 269 A and 1000 V for high-performance applications.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Suitable for various electrical installations requiring secure connections.
Commercial: Ideal for use in control panels and machinery.

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 1492-J Screw Connection Terminal is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

Non-Returnable & Non-Cancellable

1492J120-AU-Screw-Terminal-Block-Datasheet.pdf (1492J120-AU-Screw-Terminal-Block-Datasheet.pdf, 373 Kb) [Download]
