Home/Electrical/Connection/Connection Equipment/Screw Connection Terminal 16mm | 76A 1000V | DIN Rail Mount | Red by NHP

Trade Discount 25%

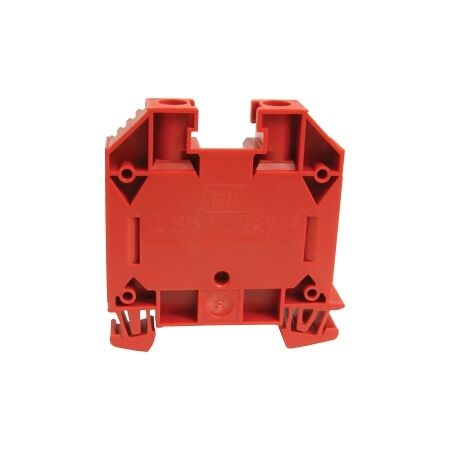

Allen-Bradley 1492-J Screw Connection Terminal 16mm 1 Level 2 Conductor Entries Red

Screw Connection Terminal 16mm | 76A 1000V | DIN Rail Mount | Red by NHP

BRAND: NHP

SKU: 1492J16RE

$13.20 List price: $17.60

+ −

30 Days Return Delivery Options

Screw connection terminal with 16mm size and 76A, 1000V rating—ideal for industrial and commercial electrical applications. Built for secure connections, with easy DIN rail mounting.

Description
Attachments

Product Name/Title: Allen-Bradley 1492-J Screw Connection Terminal 16mm 1 Level 2 Conductor Entries Red

Brand: NHP

SKU: 1492J16RE

Alternatively Known As: Screw Terminal Block, Feed-through Terminal Block

Technical Specifications

Type of electrical connection: Screw connection
Rated current: 76 A
Rated voltage: 1000 V
Number of levels: 1
Number of clamp positions per level: 2
Mounting method: DIN rail (top hat rail) 35 mm
Nominal tightening torque: 4 Nm
Wire conductor size: 2.5-16 mm
Wire strip length: 16 mm
Insulation temperature: -50-120 °C
Dimensions (H x L x W): 60mm x 56mm x 12mm
Weight: 0.1 kg

Key Features

Screw connection for secure electrical connections.
Rated for 76 A and 1000 V for high-performance applications.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Electrical panels, machinery, and control systems
Commercial: Building automation and electrical installations

Standards & Compliance

Complies with relevant Australian electrical standards.

Environmental Benefits

Complies with UL94 V0 for safety and fire resistance.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 1492-J Screw Connection Terminal is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

Non-Returnable & Non-Cancellable

1492J16RE-AU-Screw-Terminal-Block-Datasheet.pdf (1492J16RE-AU-Screw-Terminal-Block-Datasheet.pdf, 291 Kb) [Download]
