Trade Discount 17%
Screw Connector 40A Single Screw 3x6mm² | 500VAC Rated | Flame Retardant Material | by Wattmaster
The Screw Connector 40A Single Screw 3x6mm² is designed for secure electrical wiring connections, rated for up to 500VAC. Ideal for residential, commercial, and industrial applications, this connector features flame retardant material for enhanced safety and compliance with AS/NZS IEC 60998.2.1:2012 standards, ensuring reliable performance in various electrical circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Screw Connector 40A Single Screw 3x6mm² | 500VAC Rated | Flame Retardant Material | by Wattmaster
Brand: Wattmaster
SKU: ALCSC40
Alternatively Known As: Electrical Screw Terminal Connector, Single Screw Terminal Block, 40 Amp Screw Connector
Technical Specifications
- Current Rating: 40A
- Conductor Size: 3x6mm²
- Voltage Rating: Up to 500VAC
- Material: Flame retardant (UL94V0)
- Compliance: AS/NZS IEC 60998.2.1:2012
- Dimensions (H x L x W): 15mm x 50mm x 30mm
- Weight: 0.2 kg
Key Features
- Voltage rated up to 500VAC
- Flame retardant material (UL94V0)
- Available in single and double screw variants
- Supports current ratings of 32A, 40A, 100A, and 140A
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical wiring connections in residential, commercial, and industrial installations
- Suitable for connecting multiple conductors securely in electrical circuits
Standards & Compliance
- Complies with AS/NZS IEC 60998.2.1:2012
Environmental Benefits
- Flame retardant materials enhance safety and reduce fire risk
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific terms.
Available Now

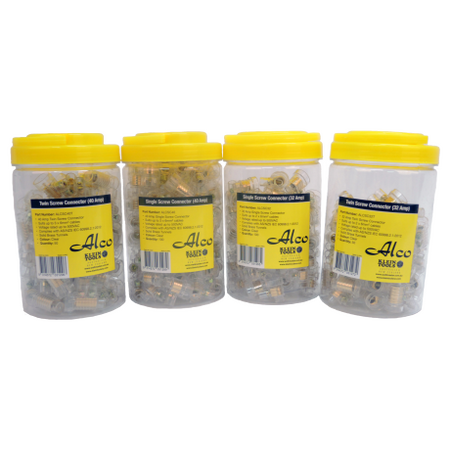

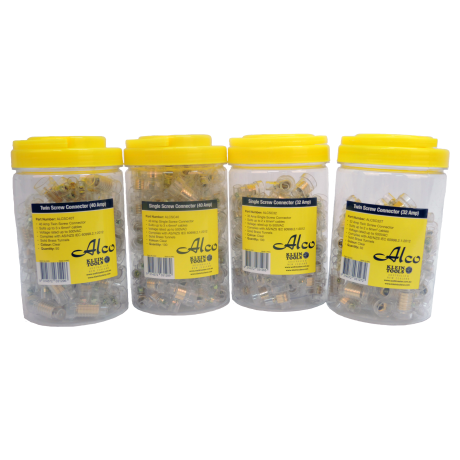

The Wattmaster Screw Connector 40A Single Screw 3x6mm² 100 Jar is available for immediate purchase, ideal for secure electrical wiring connections in various applications.
