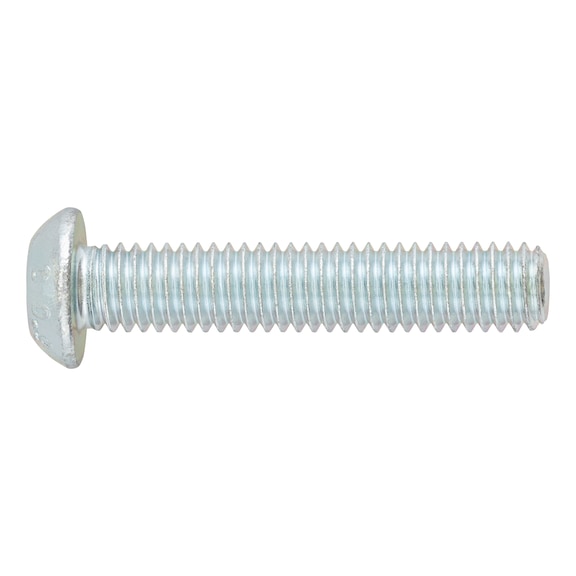

Screw with Flattened Half Round Head | Hexagon Socket Drive | Zinc-Plated Blue Passivated | @Pack of 25 | by Wurth
Screw with Flattened Half Round Head designed for secure fastening in mechanical assemblies. Featuring a hexagon socket drive and zinc-plated blue passivation, this screw is ideal for electronics and precision equipment assembly. Built from durable steel with a property class of 010.9, it ensures strength and corrosion resistance, making it perfect for light to medium duty applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Screw with Flattened Half Round Head | Hexagon Socket Drive | Zinc-Plated Blue Passivated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 600136
Alternatively Known As: Button head hex socket screw, Hexagon socket button head screw, ISO 7380-1 screw, Zinc plated hex socket screw
Technical Specifications

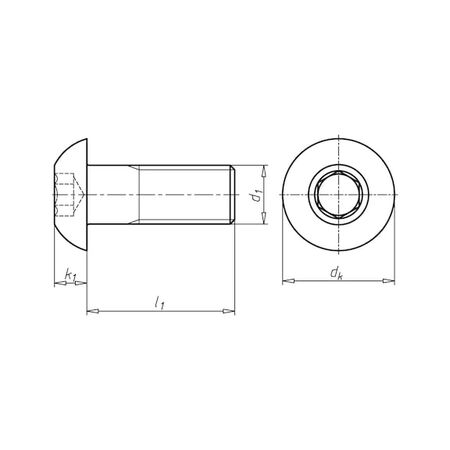

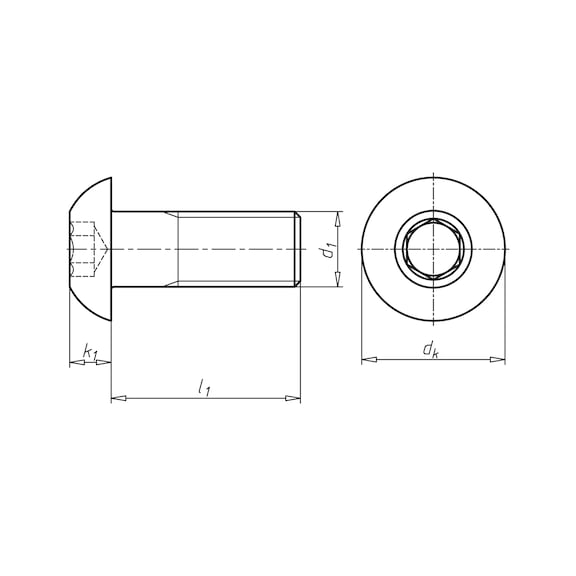

- Thread type x nominal diameter (d1): M3
- Length (l1): 6 mm
- Head diameter (dk): 5.7 mm
- Head height (k1): 1.65 mm
- Standards: ISO 7380-1
- Material: Steel
- Property class: 010.9
- Surface: Zinc plated with blue passivation
- Head type: Button head
- Drive type: Hexagon socket
- Internal drive: HS2
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 6mm x 5.7mm
- Weight: 0.002 kg
Key Features
- Flattened half round button head design
- Hexagon socket drive for secure tightening
- Steel material with property class 010.9 for strength
- Zinc plated with blue passivation for corrosion resistance
- Complies with ISO 7380-1 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and load application.
Applications
- Mechanical assemblies requiring secure fastening with limited load capacity
- Electronics and precision equipment assembly
- General purpose fastening in light to medium duty applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating with blue passivation enhances corrosion resistance, extending product life and reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for mechanical and precision fastening applications.
