Trade Discount 21%

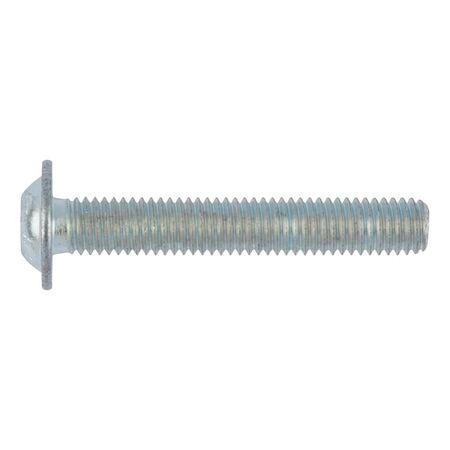

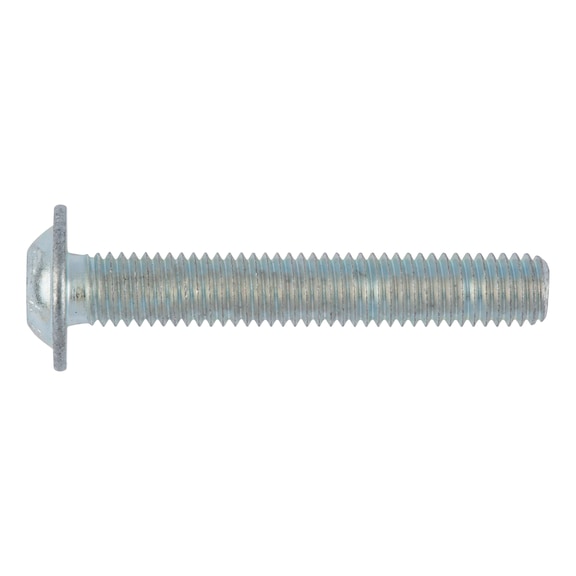

Screw with Flattened Half Round Head | Steel 10.9 | Zinc-Plated & Blue Passivated | Hexagon Socket Drive | @Pack of 25 | by Wurth
Screw with Flattened Half Round Head made from Steel 10.9 offers exceptional strength and durability, perfect for mechanical assemblies and precision equipment. Its zinc-plated and blue passivated finish ensures corrosion resistance, while the hexagon socket drive allows for reliable torque application. Ideal for industrial fastening applications, this screw is RoHS-compliant and designed for secure fastening in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Screw with Flattened Half Round Head | Steel 10.9 | Zinc-Plated & Blue Passivated | Hexagon Socket Drive | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 6000320
Alternatively Known As: Button Head Screw with Collar, Hex Socket Screw, ISO 7380-2 Screw, Zinc Plated Steel Screw

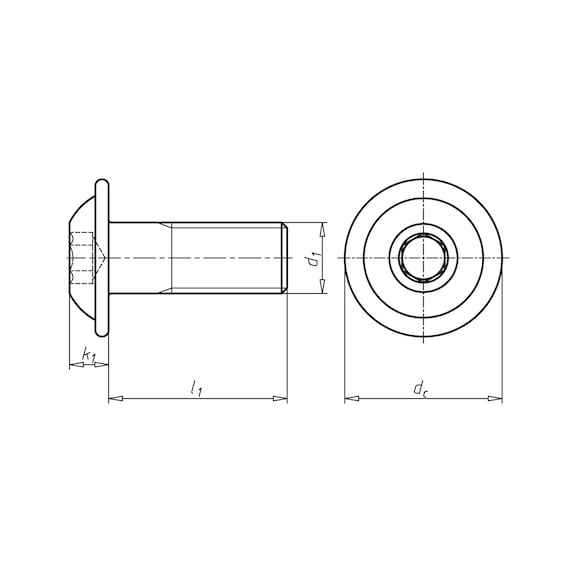

Technical Specifications
- Thread type x nominal diameter: M3
- Length: 20 mm
- Head diameter: 6.9 mm
- Head height: 1.65 mm
- Internal drive: HS2 hexagon socket
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc plated with blue passivation
- Head type: Button head with collar
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 20mm x 6.9mm
- Weight: 0.01 kg
Key Features
- Steel 10.9 property class for high strength
- Zinc-plated with blue passivation for corrosion resistance
- Button head with collar design for secure seating
- Hexagon socket drive for reliable torque application
- Compliant with ISO 7380-2 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and load application.
Applications
- Mechanical assemblies requiring secure fastening with limited load capacity
- Electronics and precision equipment assembly
- General industrial and manufacturing fastening applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial and precision fastening applications.
