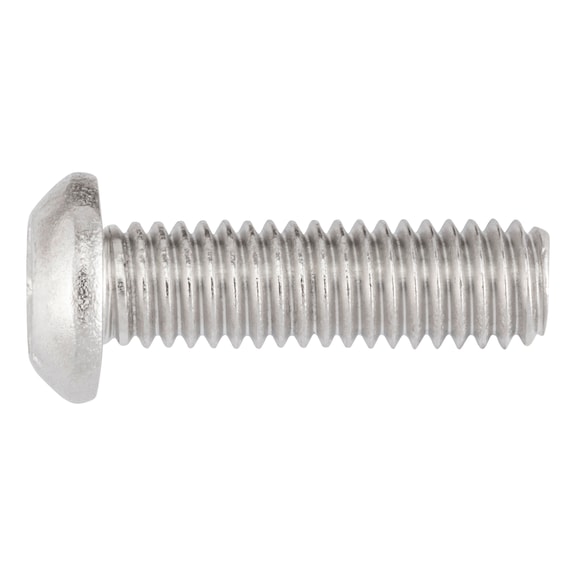

Screw ISO 7380-1 A4 070 | M3x16 | Button Head Hex Socket | Corrosion Resistant | @Pack of 50 | by Wurth
Screw ISO 7380-1 A4 070 is designed for secure fastening with its button head hex socket and corrosion-resistant stainless steel A4 material. Ideal for general mechanical fastening and electronics assembly, this screw ensures durability in marine and outdoor environments. With RoHS compliance, it’s perfect for precision equipment applications, providing reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Screw ISO 7380-1 A4 070 | M3x16 | Button Head Hex Socket | Corrosion Resistant | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 9901316
Alternatively Known As: Button head hex socket screw, ISO 7380-1 screw, stainless steel hex socket screw M3x16

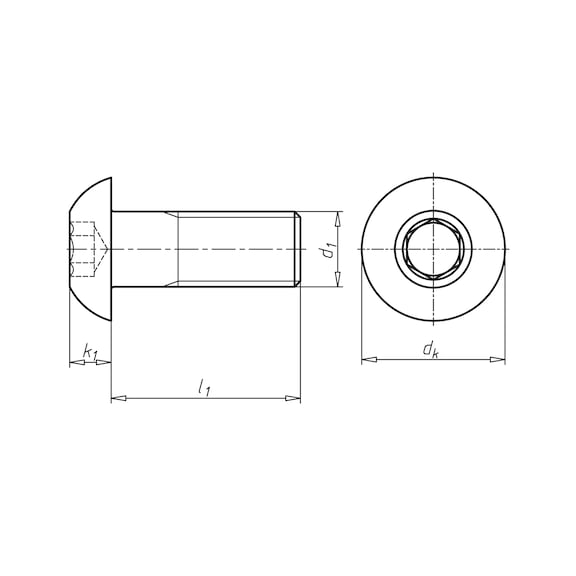

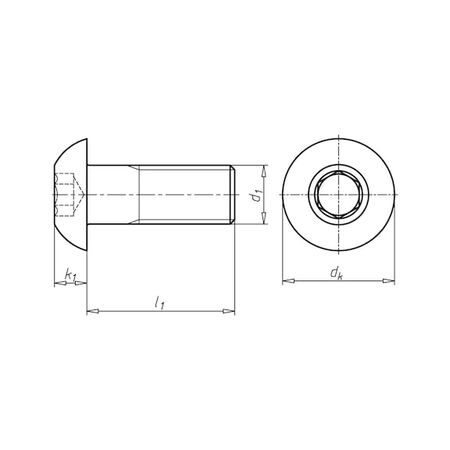

Technical Specifications
- Thread type x nominal diameter: M3
- Length: 16 mm
- Head diameter: 5.7 mm
- Head height: 1.65 mm
- Standards: ISO 7380-1
- Material: Stainless steel A4
- Property class: 070
- Surface finish: Plain
- Head type: Button head
- Drive type: Hexagon socket
- Internal drive: HS2
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 16mm x 5.7mm
- Weight: 0.005 kg
Key Features
- Button head with hexagon socket for secure drive
- Made from stainless steel A4 for corrosion resistance
- Complies with ISO 7380-1 standard
- RoHS-compliant
- Limited load capacity due to head geometry as per DIN EN ISO 3506-1
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and load application.
Applications
- General mechanical fastening
- Electronics assembly
- Precision equipment
- Corrosion-resistant fastening in marine and outdoor environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Stainless steel material ensures long product life reducing waste
- RoHS compliance ensures no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for precision mechanical and corrosion-resistant fastening applications.
