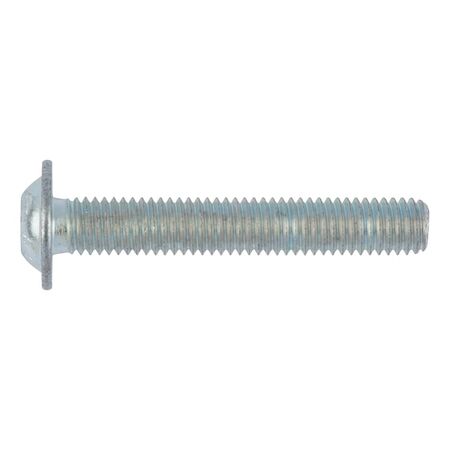

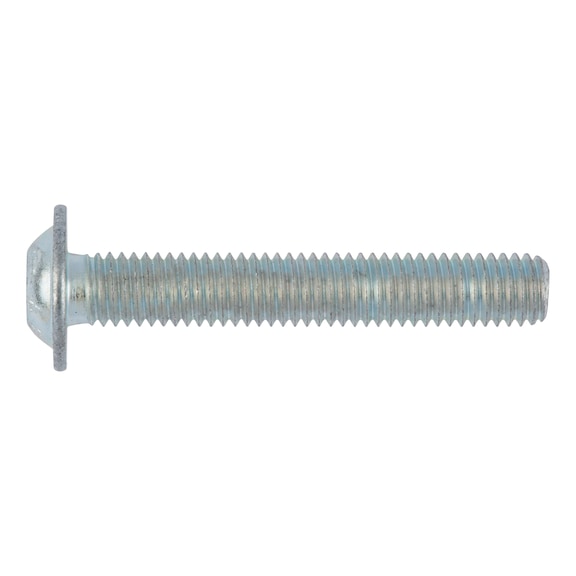

Screw ISO 7380-2 | Steel 10.9 | Zinc-Plated & Blue Passivated | Button Head with Collar | @Pack of 25 | by Wurth
Screw ISO 7380-2 is designed for high-strength fastening with its Steel 10.9 property class and zinc-plated blue passivation for enhanced corrosion resistance. Ideal for mechanical assemblies and precision equipment, this button head screw with collar ensures secure tightening with its hexagon socket drive, making it perfect for industrial applications requiring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Screw ISO 7380-2 | Steel 10.9 | Zinc-Plated & Blue Passivated | Button Head with Collar | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 6000312
Alternatively Known As: Button head screw with collar, Hex socket button head screw, ISO 7380-2 screw, Zinc plated steel screw, Metric thread screw M3x12

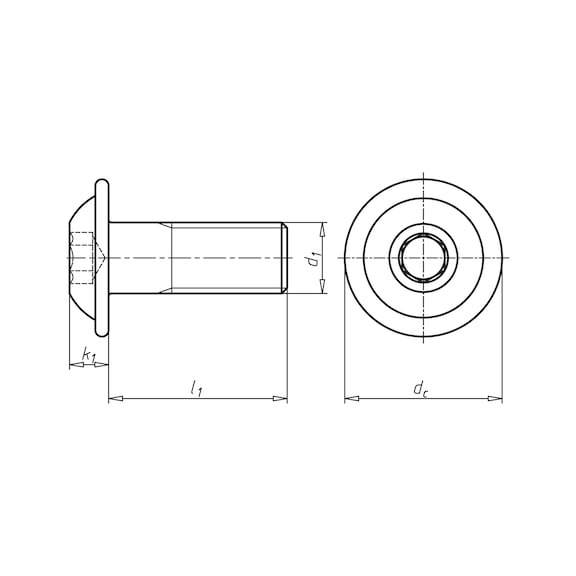

Technical Specifications
- Thread type x nominal diameter: M3
- Length: 12 mm
- Head diameter: 6.9 mm
- Head height: 1.65 mm
- Internal drive: Hexagon socket HS2
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc plated with blue passivation
- Head type: Button head with collar
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 12mm x 6.9mm
- Weight: 0.01 kg
Key Features
- Steel 10.9 property class for high strength
- Zinc-plated with blue passivation for corrosion resistance
- Button head with collar design
- Hexagon socket drive for secure tightening
- Complies with ISO 7380-2 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and load application due to limited load capacity of head geometry.
Applications
- Mechanical assemblies requiring secure fastening with limited load capacity
- Electronics and precision equipment assembly
- General industrial and manufacturing applications with metric thread requirements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical fastening applications
- ISO 7380-2 international standard compliance
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial, mechanical, and electrical fastening applications requiring high strength and corrosion resistance.
