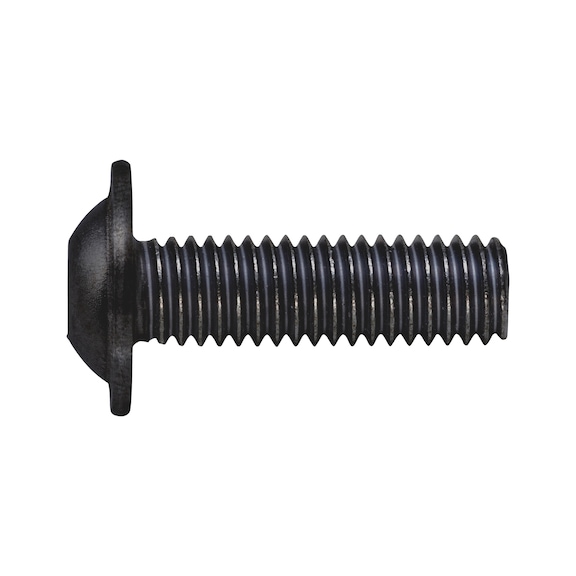

Screw ISO 7380-2 | Zinc-Nickel Plated | High Strength Class 10.9 | Button Head with Collar | by Wurth
Screw ISO 7380-2 with zinc-nickel plating and high strength class 10.9—ideal for high corrosion risk environments. Built for industrial and automotive applications, this button head screw features a hexagon socket drive for secure fastening and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Screw ISO 7380-2 | Zinc-Nickel Plated | High Strength Class 10.9 | Button Head with Collar | by Wurth
Brand: Wurth
SKU: 42536425
Alternatively Known As: Button head screw with collar, Hex socket button head screw, Zinc-nickel plated screw, ISO 7380-2 screw, High strength steel screw
Technical Specifications
- Thread type x nominal diameter: M4
- Length: 25 mm
- Head diameter: 9.4 mm
- Head height: 2.2 mm
- Internal drive: HS2.5 hexagon socket
- Standards: ISO 7380-2
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc-nickel black coating (ZNBHL)
- Head type: Button head with collar
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 25mm x 9.4mm
- Weight: 0.02 kg
Key Features
- Zinc-nickel black coating providing corrosion resistance up to 720 hours according to DIN EN ISO 9227 NSS
- Chromium (VI)-free coating with integrated lubricating particles
- High strength steel, property class 10.9
- Button head with collar and hexagon socket drive
- Thermal capacity up to 120°C
- Adjusted friction coefficient range of 0.09 μ–0.14 μ
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and fastening integrity.
Applications
- High corrosion risk environments requiring durable fasteners
- Mechanical assemblies needing high strength screws
- Industrial and automotive applications
- General fastening requiring hexagon socket button head screws
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium (VI)-free coating reduces environmental and health hazards
- Durable corrosion-resistant coating extends product life, reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Zinc-Nickel Plated Steel Screw ISO 7380-2 is available for immediate purchase, ideal for industrial, automotive, and high corrosion risk applications.
