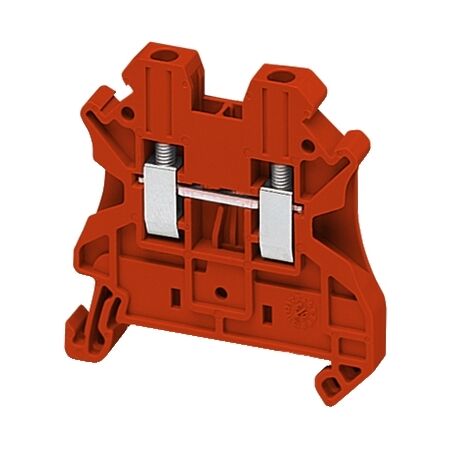

Screw Terminal Block 2 Points | 2.5mm² | Red by Clipsal

BRAND: Clipsal
SKU: NSYTRV22RD
$2.30 List price: $2.90
+
Screw terminal block with 2 points and 2.5mm² capacity—ideal for industrial electrical enclosures. Built for reliable connections, with a red polyamide insulating case and 1000 V rating.

Product Name/Title: Linergy, Screw Terminal, Feed Through, 2 Points, 2,5mm² , Red

Brand: Clipsal

SKU: NSYTRV22RD

Alternatively Known As: Screw Terminal Block, Feed Through Terminal, Linergy Terminal Block

Technical Specifications
  • Product type: Terminal block
  • Number of terminals: 2
  • Wire stripping length: 9 mm
  • Material: Polyamide 6/6 insulating case, copper alloy connectors
  • Dielectric strength: 1000 V conforming to IEC 60243-1
  • Flame retardance: V0, thickness 0.8 mm conforming to UL 94
  • Tightening torque: 0.5...0.6 N.m
  • Dimensions (H x L x W): 47.5mm x 47.7mm x 5.2mm
  • Weight: 0.1 kg
Key Features
  • Screw terminal connections for reliable electrical contact.
  • Rated operational voltage of 1000 V and current of 24 A.
  • Compatible with various PrismaSeT enclosures.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Suitable for use in various electrical enclosures and panels.
Standards & Compliance
  • Complies with relevant IEC standards for safety and performance.
Environmental Benefits
  • Green Premium product status indicating reduced environmental impact.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Linergy Screw Terminal Feed Through Block is available now for immediate purchase. Ideal for industrial applications requiring reliable electrical connections.
