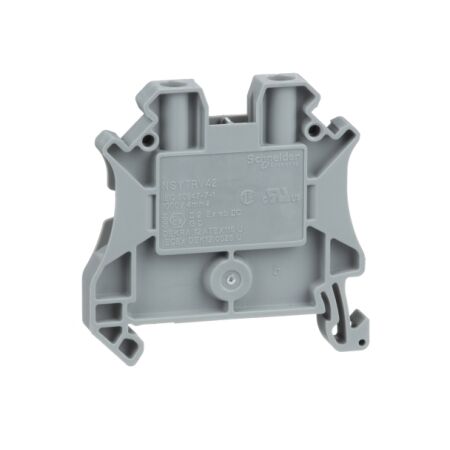

Screw Terminal Block 2 Points | 4mm² | 1000V Rated | Grey by Clipsal
Screw terminal block with 2 points and 4mm² capacity—ideal for industrial electrical enclosures. Built for reliable connections, with 1000V rating and compact design for tight spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linergy, Screw Terminal, Feed Through, 2 Points, 4mm² , Grey
Brand: Clipsal
SKU: NSYTRV42
Alternatively Known As: Screw Terminal Block, Feed Through Terminal Block, Linergy Terminal Block
Technical Specifications
- Rated operational voltage: 1000 V
- Rated current: 32 A
- Material: Polyamide 6/6 insulating case, copper alloy connectors
- Wire stripping length: 9 mm
- Tightening torque: 0.6...0.8 N.m
- Dielectric strength: 1000 V
- Flame retardance: V0, thickness 0.8 mm
- Dimensions (H x L x W): 47.5mm x 47.7mm x 6.2mm
- Weight: 0.1 kg
Key Features
- Screw terminal connections for reliable electrical contact.
- Compact design for easy installation in tight spaces.
- Rated operational voltage of 1000 V and current of 32 A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for use in various electrical enclosures and control panels.
Standards & Compliance
- Complies with EN/IEC 60947 for safety and performance standards.
Environmental Benefits
- Green Premium product status indicating reduced environmental impact.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Linergy Screw Terminal Feed Through Block is available now for immediate purchase. Ideal for industrial applications requiring reliable electrical connections.
