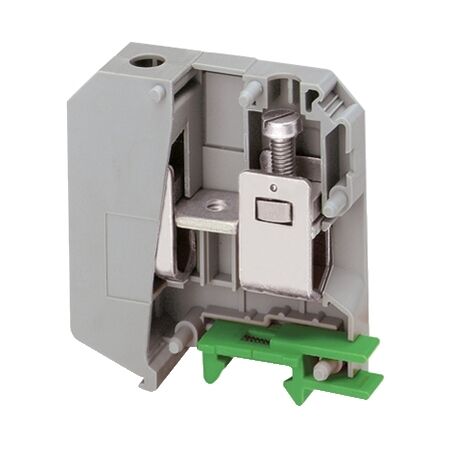

Screw Terminal Block 2 Points | 50mm² | High Current 150A | Grey by Clipsal

BRAND: Clipsal
SKU: NSYTRV502
$25.00 List price: $31.20
+
Screw terminal block with 2 points and 50mm² capacity—ideal for industrial electrical installations. Built for high current applications, with clip-on mounting for easy installation.

Product Name/Title: Linergy, Screw Terminal, Feed Through, 2 Points, 50mm² , Grey

Brand: Clipsal

SKU: NSYTRV502

Alternatively Known As: Screw Terminal Block, Feed Through Terminal, Linergy Terminal Block

Technical Specifications
  • Rated operational voltage: 1000 V
  • Rated current: 150 A
  • Material: Polyamide 6/6 insulating case, copper alloy connectors
  • Wire stripping length: 24 mm
  • Tightening torque: 6...8 N.m
  • Dielectric strength: 1000 V
  • Flame retardance: V0, thickness 0.8 mm
  • Dimensions (H x L x W): 83.5mm x 70.5mm x 20mm
  • Weight: 0.12 kg
Key Features
  • Designed for high current applications with a rated current of 150 A.
  • Compatible with various PrismaSeT enclosures.
  • Clip-on mounting mode for easy installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and performance.
Applications
  • Industrial: Suitable for use in various electrical installations and enclosures.
Standards & Compliance
  • Complies with relevant IEC standards for safety and performance.
Environmental Benefits
  • Green Premium product with reduced environmental impact.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Linergy Screw Terminal Feed Through Block is available now for immediate purchase. Ideal for industrial electrical applications.

NSYTRV502 (NSYTRV502, 276 Kb) [Download]
